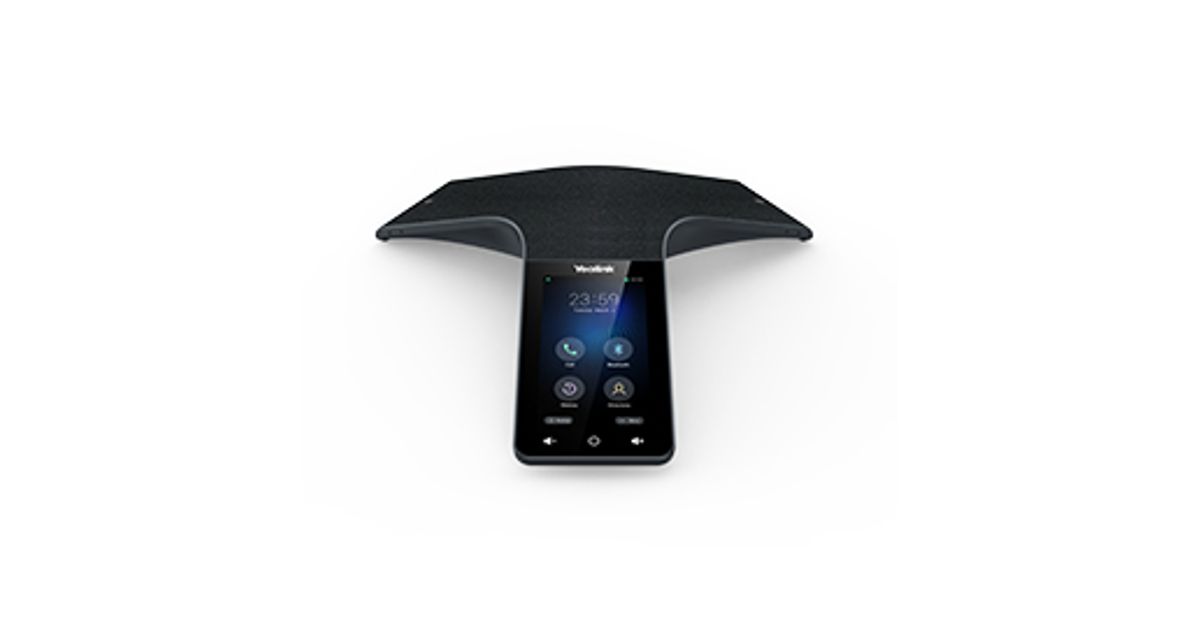

Yealink CP965 conference phone IP conference phone
Yealink CP965, IP conference phone, Large room, Touch, Black, LCD, 12.7 cm (5")
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Yealink |
| Product code | 107387731 |
| EAN | 00841885107312 |
| Manufacturer part number | CP965 |
| Category | Analog and regular phones |
| Design | |
|---|---|
| Product type | IP conference phone |
| Built-in display | Y |
| Product colour | Black |
| Display type | LCD |
| Cable lock slot type | Kensington |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Audio system full duplex | Y |
| Voice codecs | AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1C, G.723, G.726, G.729, G.729A, OPUS, PCMA, PLC, VAD, iLBC |
| Frequency range | 100 - 20000 Hz |
| Microphone pick-up range | 6 m |
| Speaker power | 5 W |
| Features | |
|---|---|
| Recommended room size | Large room |
| Control type | Touch |
| Echo cancellation | Y |
| Conference call ways quantity | 10 |
| Conference call | Y |
| Call forwarding | Y |
| Call hold | Y |
| Call waiting | Y |
| Call blocking | Y |
| Certification | CE, FCC, RoHS, REACH, ISO 9001, CCC |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-C |
| Harmonized System (HS) code | 85176990 |
| Display | |
|---|---|
| Display diagonal | 12.7 cm (5") |
| Display resolution | 720 x 1280 pixels |
| Touchscreen | Y |
| Microphone | |
|---|---|
| Microphone direction type | Omnidirectional |
| Number of microphone arrays | 1 |
| Microphone mute | Y |
| Performance | |
|---|---|
| Sound pressure level | 94 dB |
| Cable lock slot | Y |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Network | |
|---|---|
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security algorithms | 256-bit AES, HTTPS, MD5, WPA2, WPA3 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Phone features | |
|---|---|
| Phonebook capacity | 1000 entries |
| Call transfer | Y |
| Call history | Y |
| Call return | Y |
| Do not disturb function | Y |
| Other features | |
|---|---|
| Speaker diameter | 5.6 cm |
| Ethernet cable | Y |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 1 |
| USB port | Y |
| USB ports quantity | 2 |
| Power | |
|---|---|
| Power consumption (max) | 14 W |
| Power consumption (Power over Ethernet (PoE)) | 20 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 328 mm |
| Depth | 322 mm |
| Height | 62 mm |
| Packaging data | |
|---|---|
| Package width | 384 mm |
| Package depth | 398 mm |
| Package height | 105 mm |
| Screws included | Y |
| Quick installation guide | Y |
| Packaging content | |
|---|---|
| Number of screws included | 5 pc(s) |
| Screwdriver included | Y |
| Logistics data | |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 9.02 kg |
| Master (outer) case length | 552 mm |
| Master (outer) case width | 392 mm |
| Master (outer) case height | 410 mm |
Product Description
13-MICROPHONE ARRAY
Game-changing Audio Presence,
Immersive Conversation Environment.
Inside the stunning appearance, a set of powerful technology and professional components are wrapped to boost the CP965 with outstanding audio performance.
The 13-microphone array is elaborately positioned in every "foot" and the center of the CP965 to assure omnidirectional voice pickup and effective noise-cancellation. The advanced speaker also activates a max. 96db/0.5m performance.
With this magic black box, attendees from every corner of the room can hear and be heard with equitable clarity.
SOPHISTICATED TECHNOLOGY
Algorithm of Intelligence,
Engineered for Productivity
Diving into the field of audio communication for more than 20 years, Yealink has developed a series of acoustic technology including Smart Noise Filtering, Optimal HD audio and Noise Proof Technology to eliminate all the distracting sounds.
The next-generation technology, powered by solid processing performance, significantly improves the audio quality in collaboration. The exchange of verbal message can be more productive than ever.
Scalable for More Flexibility and Possibility
- BYOD - By simply connecting mobile devices (such as computer, smartphone, PSTN device CPN10, etc.) through Bluetooth or Type C or USB 2.0 port to realize Hybrid UC meeting (including PSTN, SIP, mobile phone).
- Wireless microphones - The DECT wireless expansion microphone CPW65, can provide an extra 10-meter voice pickup range to expand the covering area of CP965 without cord restraint. (*Coming soon)
- PSTN conference - With Yealink CPN10, the CP965 also supports 3-way local conference.
