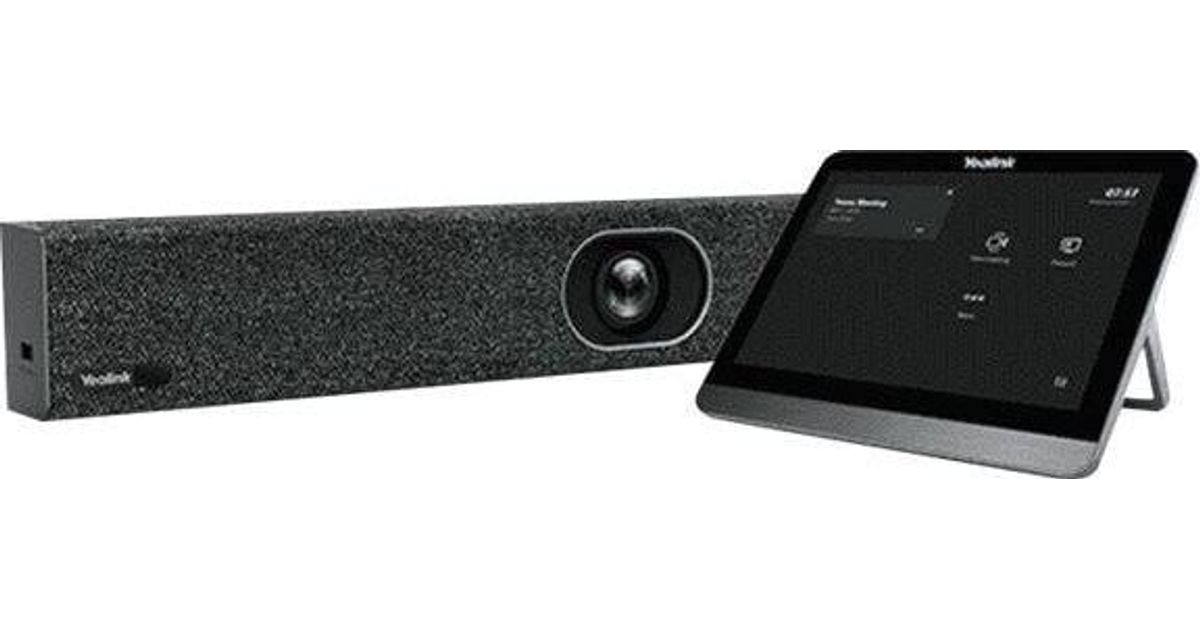

Yealink ZVC400 + CTP18 Touch Panel
Yealink ZVC400 + CTP18 Touch Panel, Group video conferencing system, CMOS, Full HD, 30 fps, 133°, Black, Silver
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Yealink |
| Product code | 325895563 |
| EAN | 06938818306691 |
| Manufacturer part number | 1109924 |
| Category | Webcams and accessories |
| Design | |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black, Silver |
| Built-in display | Y |
| Network | |
|---|---|
| Bluetooth | Y |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Y |
| Performance | |
|---|---|
| Auto framing | Y |
| PTZ control | Y |
| Megapixel | 20 MP |
| Diagonal field of view | 133° |
| Cable lock slot | Y |
| Features | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Echo cancellation | Y |
| Display | |
|---|---|
| HD type | Full HD |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Y |
| Touchscreen type | Capacitive |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Audio | |
|---|---|
| Audio system full duplex | Y |
| Other features | |
|---|---|
| Internal memory | 8000 MB |
| USB 2.0 ports quantity | 1 |
| Display | IPS |
| Hard drive | |
|---|---|
| Storage media type | SSD |
| Storage | |
|---|---|
| Total storage capacity | 128 GB |
| Ports & interfaces | |
|---|---|
| HDMI output ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Y |
| Reset slot | Y |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Camera | |
|---|---|
| Field of view (FOV) angle | 133° |
| Microphone | |
|---|---|
| Number of microphone arrays | 8 |
| Security | |
|---|---|
| Motion sensor | Y |
| Computer system | |
|---|---|
| Computer system type | mini PC |
| Processor | |
|---|---|
| Processor family | Intel® Core™ i5 |
| Weight & dimensions | |
|---|---|
| Interface module dimensions (W x D x H) | 168 x 197 x 39 mm |
| Interface module weight | 1.35 kg |
| Camera dimensions (WxDxH) | 600 x 68 x 82 mm |
| Camera weight | 2.56 kg |
| Weight | 6.4 kg |
| Package weight | 7.6 kg |
| Packaging content | MCore Mini-PC MTouch II touch panel UVC40 USB video bar |
| Packaging data | |
|---|---|
| Package width | 685 mm |
| Package depth | 356 mm |
| Package height | 285 mm |
| Packaging content | |
|---|---|
| Cables included | USB |
Product Description
Yealink ZVC400 Zoom Rooms system is a video solution designed for immersive (intelligent) Zoom meetings in smallmeeting room. ZVC400 includes everything you need to seamlessly and smartly meet, connect and collaborate withinternal and external users. Together with 8 MEMS microphone arrays and 133 ° field of view, its AI technologies, including face detection, sound localization, and speaker tracking and so on, provide users with high-quality call experiencein full-duplex mode. Only including a high-performance MCore, a touch panel MTouch II, and a USB video bar UVC40,ZVC400 is the optimum choice for small meeting rooms with easy deployment.
Smart Video Conferencing with AI Technology
Featuring AI technology, including Auto Framing and Speaker Tracking, UVC40 not only supports framing the groups automaticallyaccording to the number and the position of the participants, but also automatically zoom in the speaker without adjusting the camera,making the participants more focus on the conference.
Precise Sound Localization, Full-Duplex Experience
8 MEMS microphone arrays make UVC40 have stronger ability of noise proof and dereverberation. The new upgraded beamformingalgorithm, together with technology of processing on acoustic echo cancellation and the dereverberation, brings high quality full-duplexcall sand realizes more precise voice pickup.
Secure Conference with Electric Lens Cap
The camera electric lens cap automatically opens when the video conference starts and remains closed when not having video conferences, securing your conference privacy.
Content Sharing in Real Time
ZVC400 allows participant to quickly start content sharing with multiple presenting options, including direct sharing, wired presentation,and WPP20 wireless presentation. The wired content sharing is also available by connecting to the USB-C port or HDMI port.
Simple to Deploy, Easy to Use
With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the sametime, its all-in-one design with the feature of cable management ensure the stability of the wire connection, and the most appropriatedeployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and theconference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.
Remote Device Management
This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update anddiagnose all Yealink audio and video devices peripherals on this platform remotely.
