For illustrative purpose only

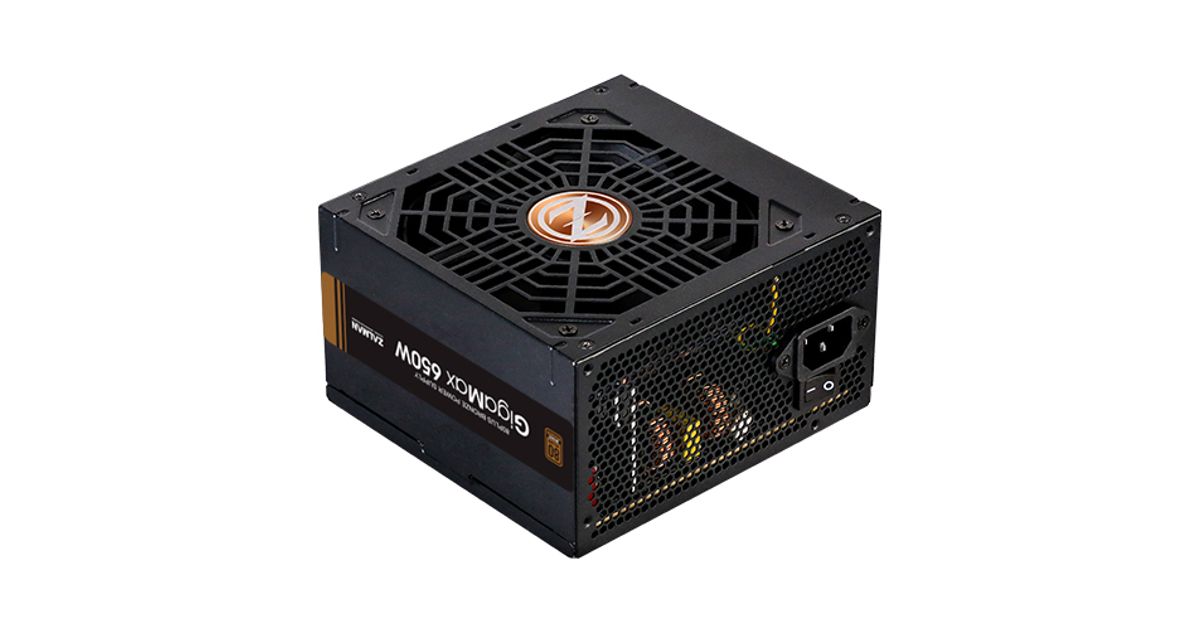

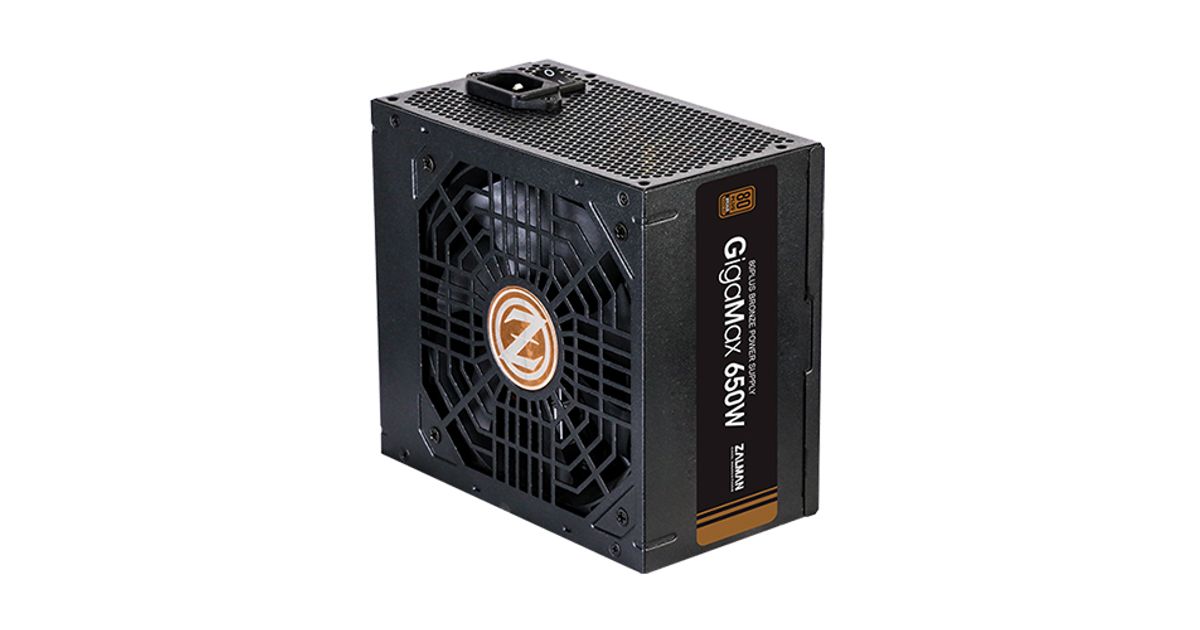

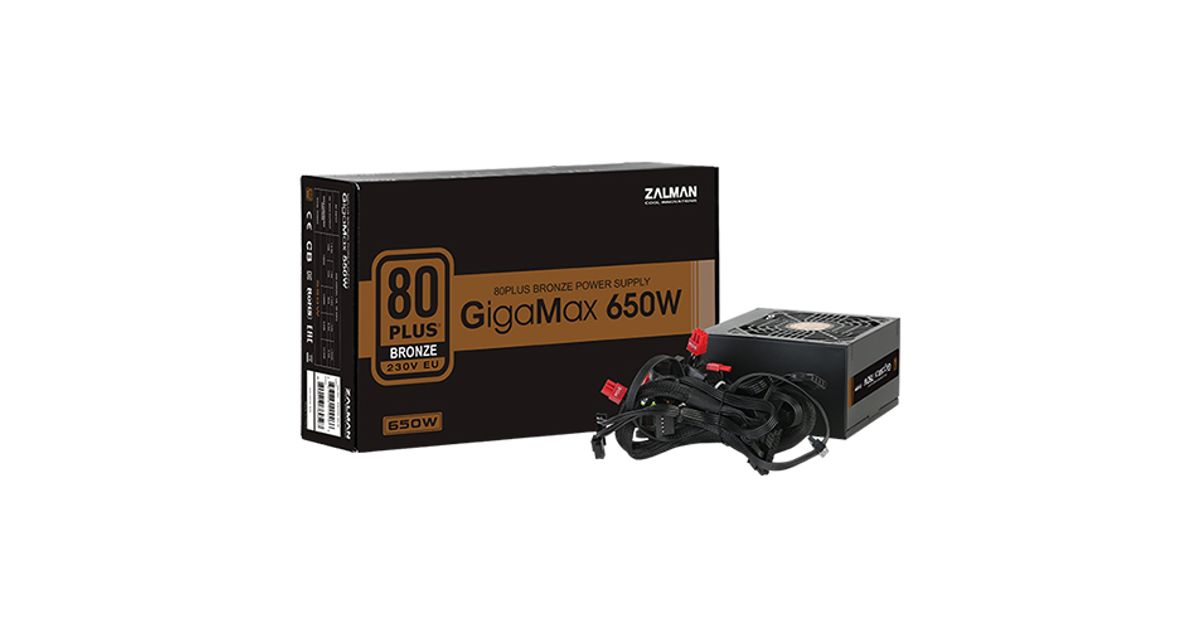

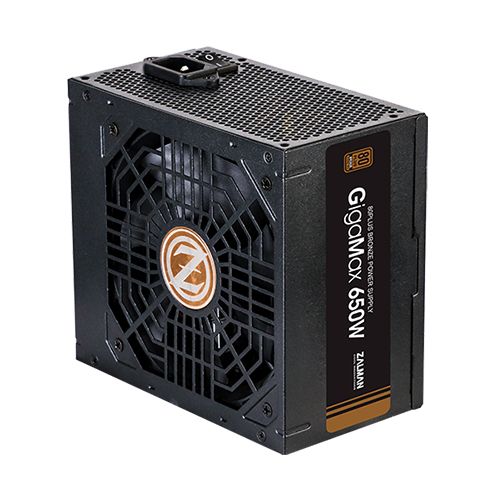

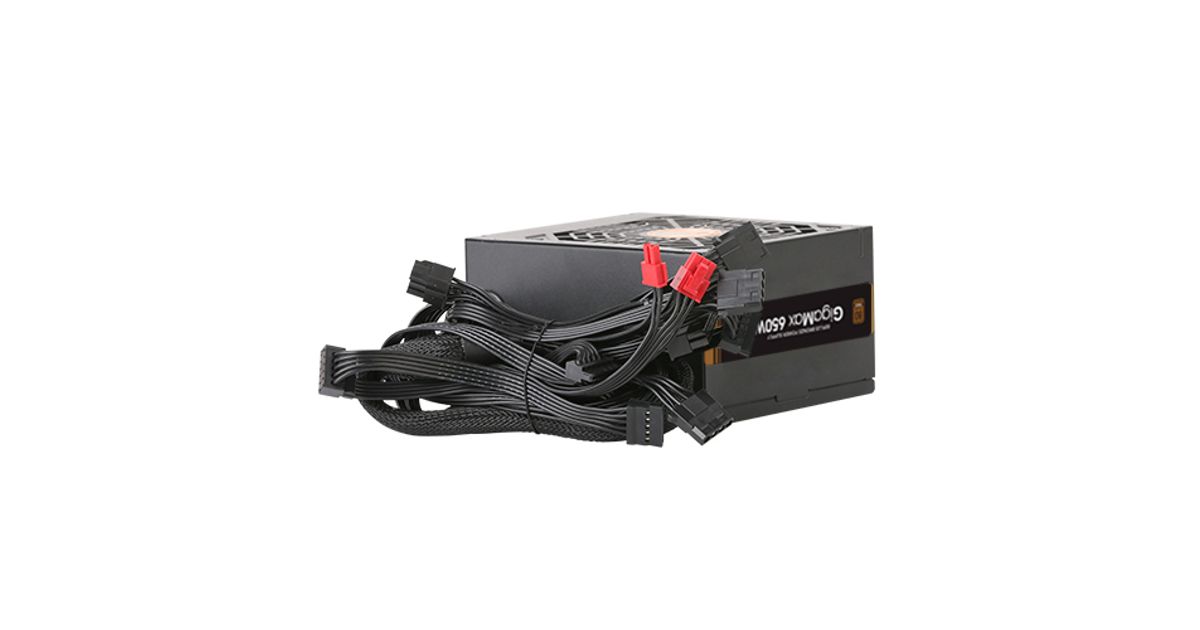

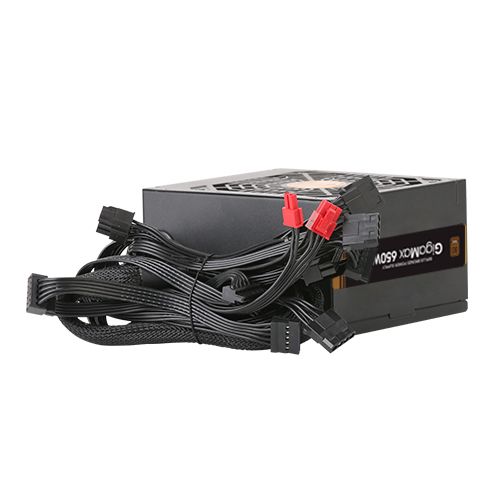

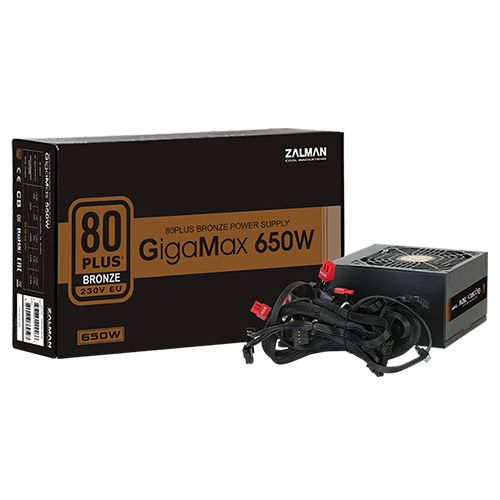

Zalman ZM650-GVII power supply unit 650 W 20+4 pin ATX ATX Black
Zalman ZM650-GVII, 650 W, 200 - 240 V, 50/60 Hz, 6 A, Active, 110 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zalman |
| Product code | 507891792 |
| EAN | 08809213769603 |
| Manufacturer part number | KZZALZ650GVII00 |
| Category | Toiteplokid |
| Power | |
|---|---|
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 A |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Features | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Certification | 80 Plus, CB, CE, KC, EAC, RoHS |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 400 mm |
| Peripheral (Molex) power cable length | 400 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Y |
| PCI Express connector | Y |
| Cabling type | Non-Modular |
| Internal I/O | |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Mouse | |
|---|---|
| Purpose | PC |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Safety | CB, CE, KC, EAC, RoHS |
| Fan diameter | 12 cm |
| Design | |
|---|---|
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Y |
| Other features | |
|---|---|
| Noise level | 36.3 dB |
| Logistics data | |
|---|---|
| Country of origin | China |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.01 kg |
| Package weight | 2.05 kg |
| Packaging data | |
|---|---|
| Package width | 180 mm |
| Package depth | 280 mm |
| Package height | 100 mm |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
80 Plus Bronze 230V EU certified Power Supply Unit. It supplies smooth power to the PC while reducing unnecessary power consumption by using high-performance parts that are very durable and reliable.
