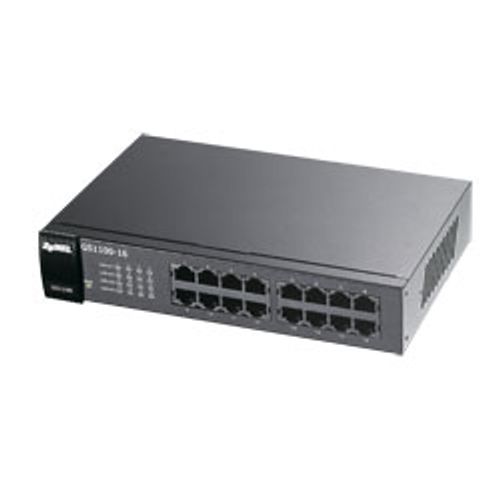

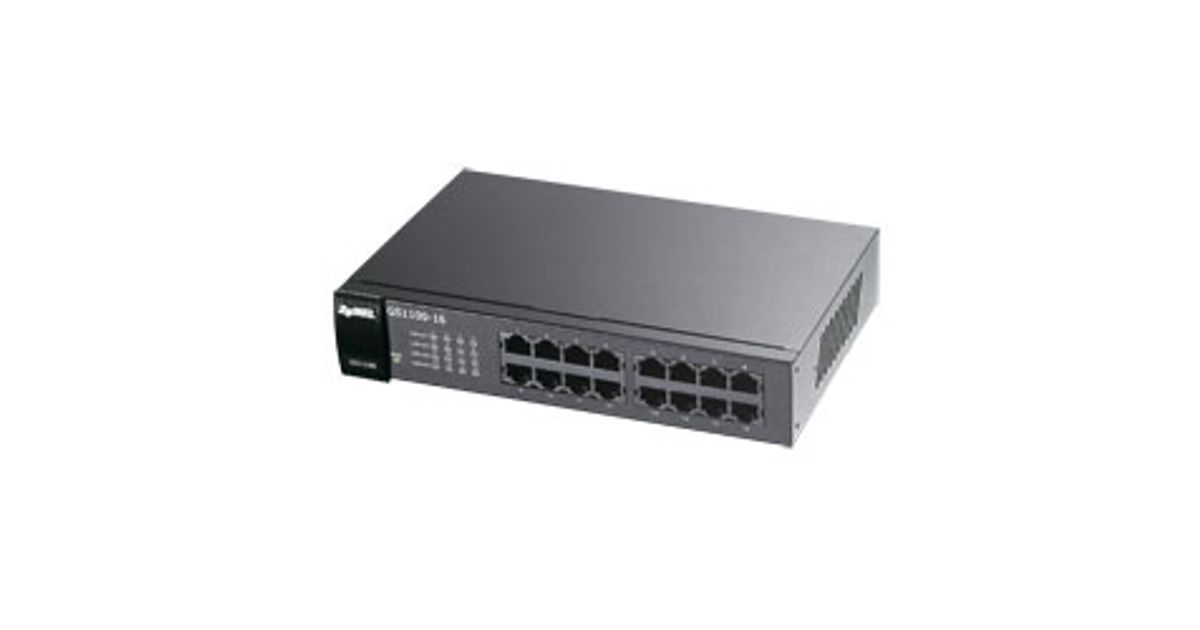

Zyxel GS1100-16 Unmanaged
Zyxel GS1100-16, Unmanaged
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 167536822 |
| EAN | 04718937515349 |
| Manufacturer part number | 91-010-235001B |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Other features | |
|---|---|
| SFP/SFP+ slots quantity | 2 |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Supported data transfer rates | 10/100/1000 Mbps |
| Dimensions (WxDxH) | 215 x 133 x 42 mm |
| Power requirements | 100 - 240 V AC, 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Network | |
|---|---|
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Y |
| Features | |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Power | |
|---|---|
| Power consumption (typical) | 6.4 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1 kg |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
Product Description
- Non-blocking, wire-speed transmission
- Auto MDI/MDI-X support
- IEEE 802.3az compliant
- Fanless design for silent running
- IEEE 802.3x Flow control supported
- IEEE802.1p CoS supported
- Jumbo frame supported up to 9K bytes
- 16 ports, desktop design
The ZyXEL GS1100-16 is positioned to deliver a solution that requires no switch management for office environments demanding silent operation and green technology. It provides plug-and-play simplicity for high-bandwidth connectivity.
The GS1100-16 is a 16-port 10/100/1000 switch and protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
- Auto MDI/MDI-X support
- IEEE 802.3az compliant
- Fanless design for silent running
- IEEE 802.3x Flow control supported
- IEEE802.1p CoS supported
- Jumbo frame supported up to 9K bytes
- 16 ports, desktop design
The ZyXEL GS1100-16 is positioned to deliver a solution that requires no switch management for office environments demanding silent operation and green technology. It provides plug-and-play simplicity for high-bandwidth connectivity.
The GS1100-16 is a 16-port 10/100/1000 switch and protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
