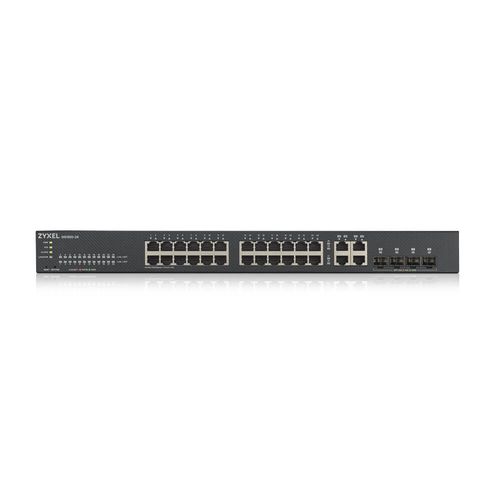

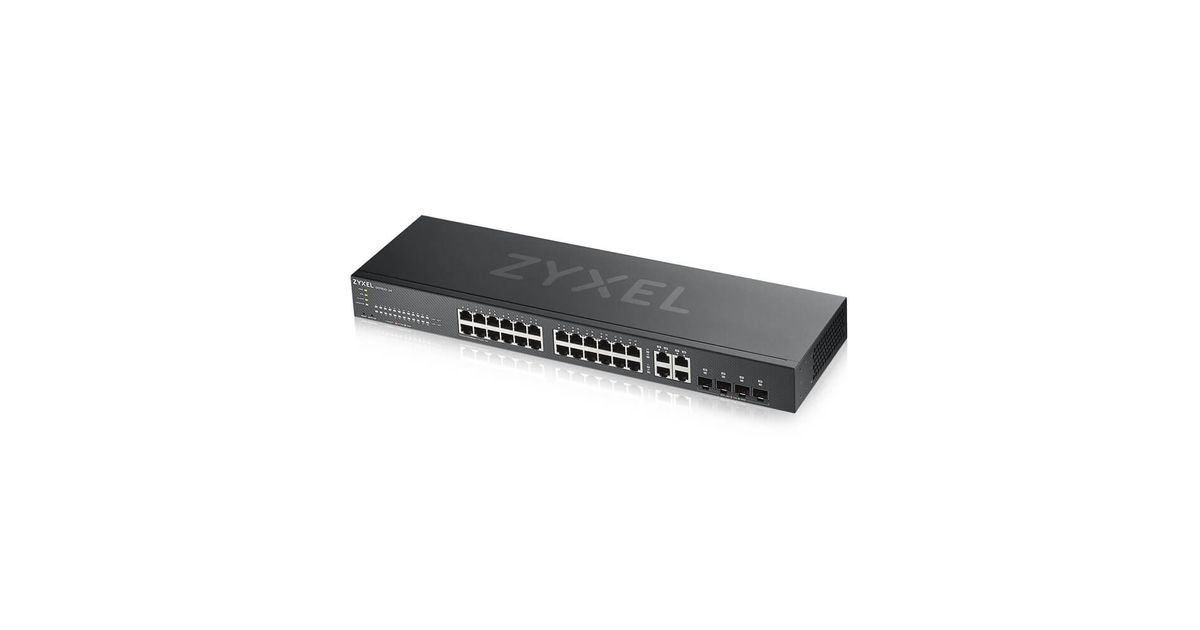

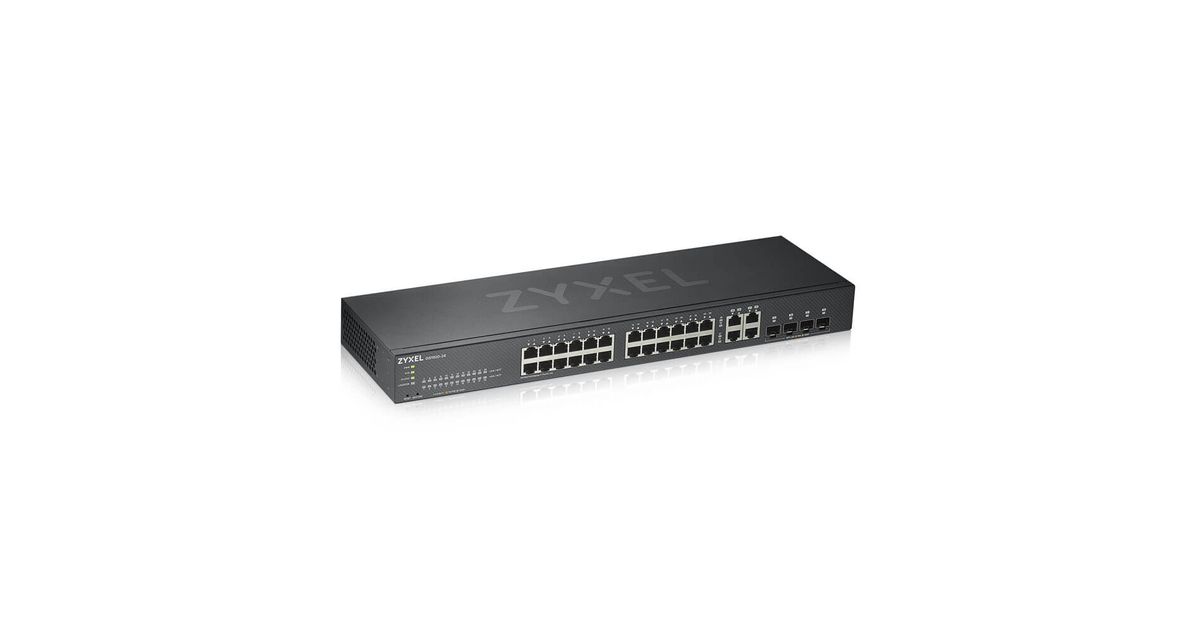

Zyxel GS1920-24V2 network switch Managed Gigabit Ethernet (10/100/1000) Black
Zyxel GS1920-24V2, Managed, Gigabit Ethernet (10/100/1000), Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 717579301 |
| EAN | 04718937601851 |
| Manufacturer part number | GS1920-24V2 |
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 1000BASE-X |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Internal memory | 256 MB |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3 |
| Features | |
|---|---|
| Flow control support | Y |
| Certification | RoHS |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 42 Mpps |
| Packet buffer memory | 1.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| MAC address filtering | Y |
| IP-MAC-Port binding | Y |
| Authentication | Guest VLAN, Port-based authentication |
| Password protection | Y |
| Authentication type | IEEE 802.1x, RADIUS |
| CPU defense | Y |
| Queue scheduling algorithms | SPQ, WFQ, Weighted Round Robin (WRR) |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | Y |
| Electromagnetic compatibility | FCC 15 A, CE A, BSMI EMC |
| Performance | |
|---|---|
| Safety | LVD, BSMI |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 911301 h |
| Heat dissipation | 76.73 BTU/h |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 22.5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 131 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
| Package weight | 2.91 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Package width | 558 mm |
| Package depth | 214 mm |
| Package height | 79 mm |
Product Description
The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.
What’s new?
The GS1920v2 series comes with a fresh, modern look, a more intuitive user experience, and a new member—the 8HP model.
Manage it your way!
The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Maximum flexibility for your Gig
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.
Whisper-quiet operation
Smart fan and fanless designs for silent operation in your workplace.
User-friendly LED indicators
View real-time status instantly with cloud and PoE power-usage LED indicators.
Power more devices more easily
Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments.
Default consumption mode boosts efficiency by delivering the actual power required.
Zyxel ONE Network
Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click.
Designed for the long haul
A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.
What’s new?
The GS1920v2 series comes with a fresh, modern look, a more intuitive user experience, and a new member—the 8HP model.
Manage it your way!
The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Maximum flexibility for your Gig
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.
Whisper-quiet operation
Smart fan and fanless designs for silent operation in your workplace.
User-friendly LED indicators
View real-time status instantly with cloud and PoE power-usage LED indicators.
Power more devices more easily
Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments.
Default consumption mode boosts efficiency by delivering the actual power required.
Zyxel ONE Network
Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click.
Designed for the long haul
A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.
