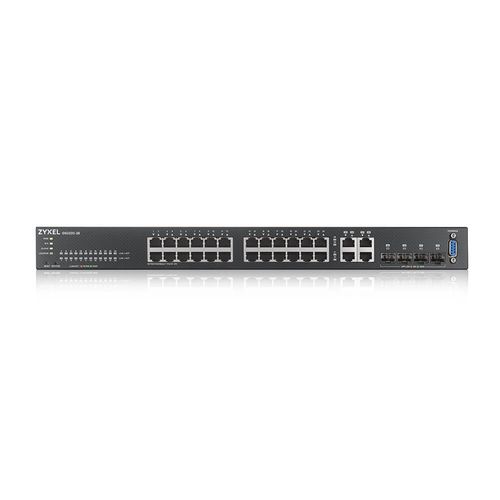

Zyxel GS2220-28-EU0101F network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Zyxel GS2220-28-EU0101F, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 213544133 |
| EAN | 00760559126759 |
| Manufacturer part number | GS2220-28-EU0101F |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Internal memory | 256 MB |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-TX,1000BASE-T |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | Port-based VLAN,Private VLAN,Protocol-based VLAN,Voice VLAN |
| Security algorithms | SNMP,SNMPv2,SNMPv3,SSH-2,SSL/TLS |
| Features | |
|---|---|
| Flow control support | Y |
| Certification | LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 42 Mpps |
| Packet buffer memory | 1.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP client,DHCP relay,DHCP snooping,DHCPv6 client,DHCPv6 relay |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| MAC address filtering | Y |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | IEEE 802.1x,RADIUS |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Performance | |
|---|---|
| Flash memory | 32 MB |
| Firmware upgradeable | Y |
| Fanless | Y |
| Mean time between failures (MTBF) | 989157 h |
| Heat dissipation | 76.725 BTU/h |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 22.5 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 131 mm |
| Height | 44 mm |
| Weight | 2.2 kg |
| Package weight | 2.91 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Packaging data | |
|---|---|
| Package width | 558 mm |
| Package depth | 214 mm |
| Package height | 79 mm |
Product Description
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.
Powerful L2 features
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses, and educational institutions greater agility and more effective traffic management for the converged applications of today.
Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.
Power your devices with efficiency and energy-saving
The PoE models support 802.3at to offer 30W per port along with maximum 375W high-power budget to meet the needs from power-hungry devices. The intelligent consumption mode allows delivery of only the actual power required by devices connected to the switch for better business ROI.
Experience whisper-silent operations
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.
Flexible port combination
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.
Powerful L2 features
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses, and educational institutions greater agility and more effective traffic management for the converged applications of today.
Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.
Power your devices with efficiency and energy-saving
The PoE models support 802.3at to offer 30W per port along with maximum 375W high-power budget to meet the needs from power-hungry devices. The intelligent consumption mode allows delivery of only the actual power required by devices connected to the switch for better business ROI.
Experience whisper-silent operations
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.
Flexible port combination
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.
