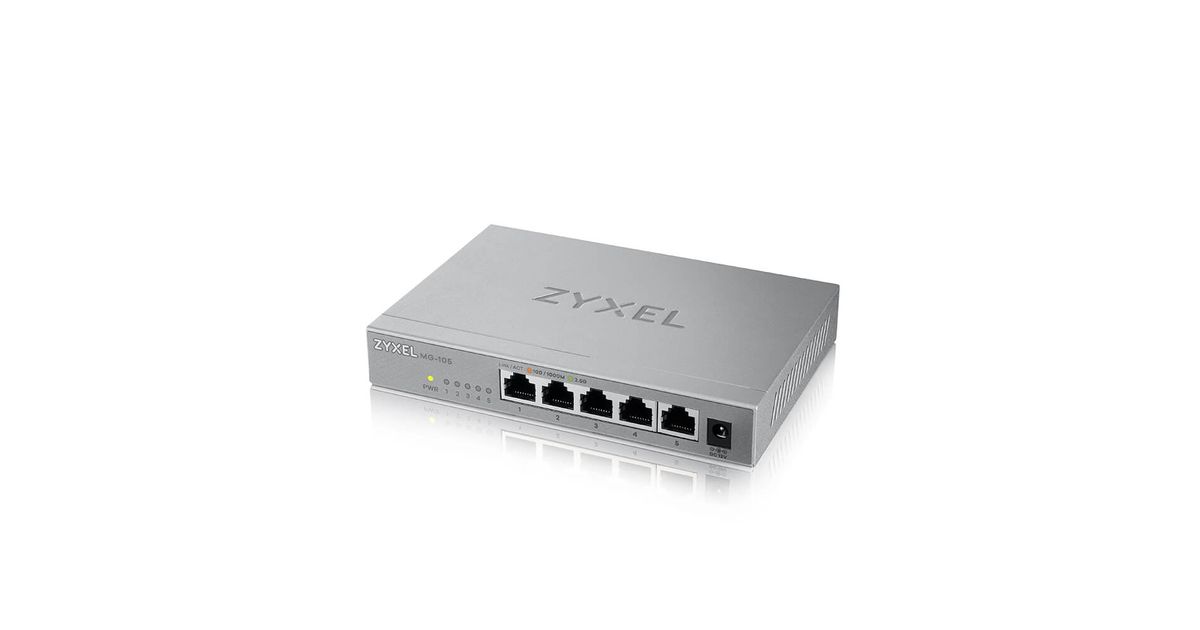

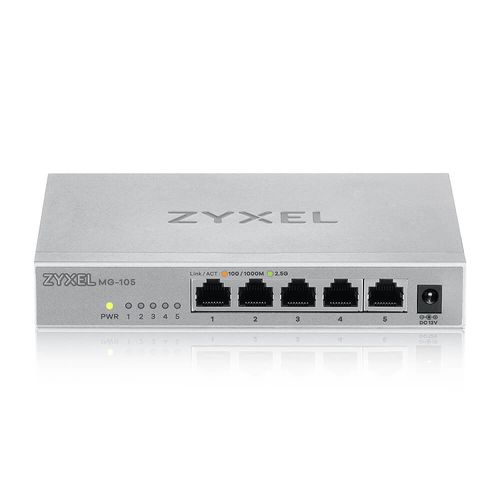

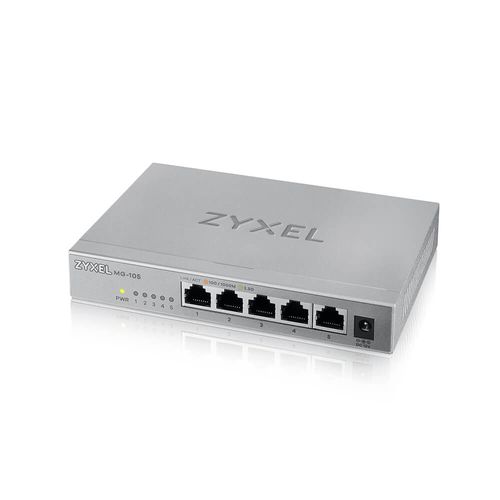

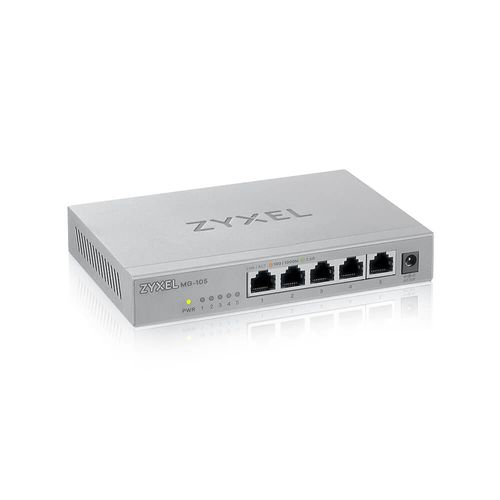

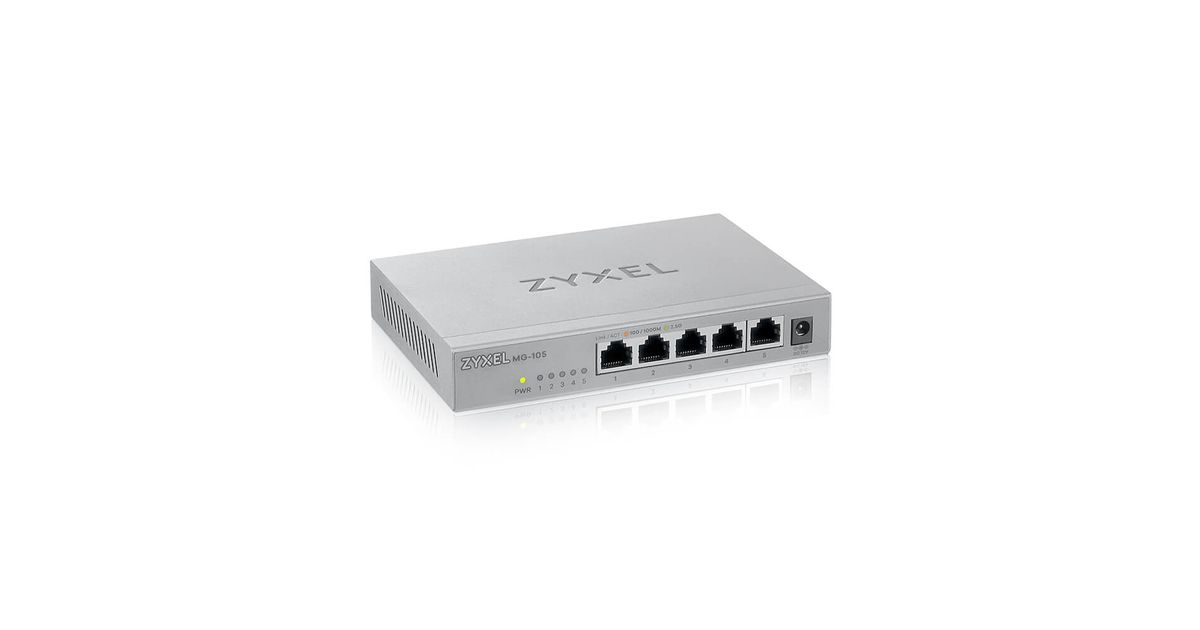

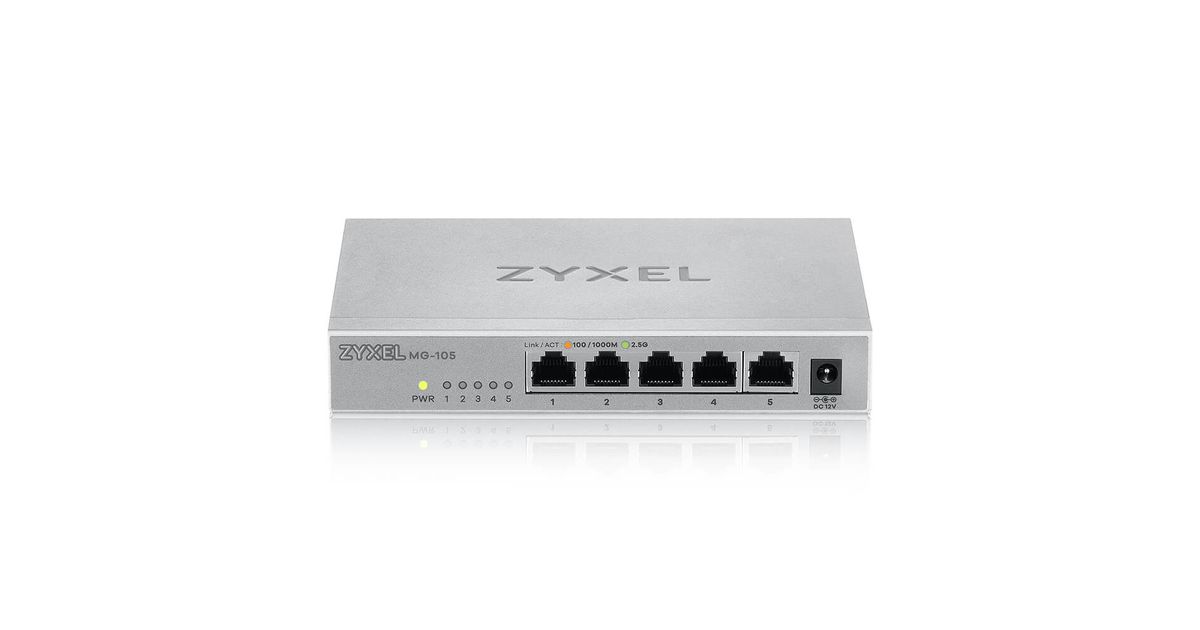

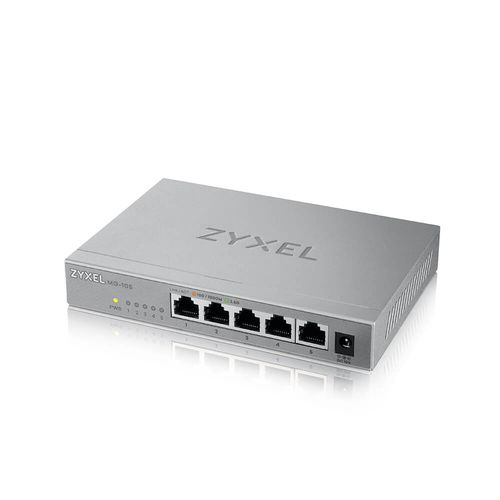

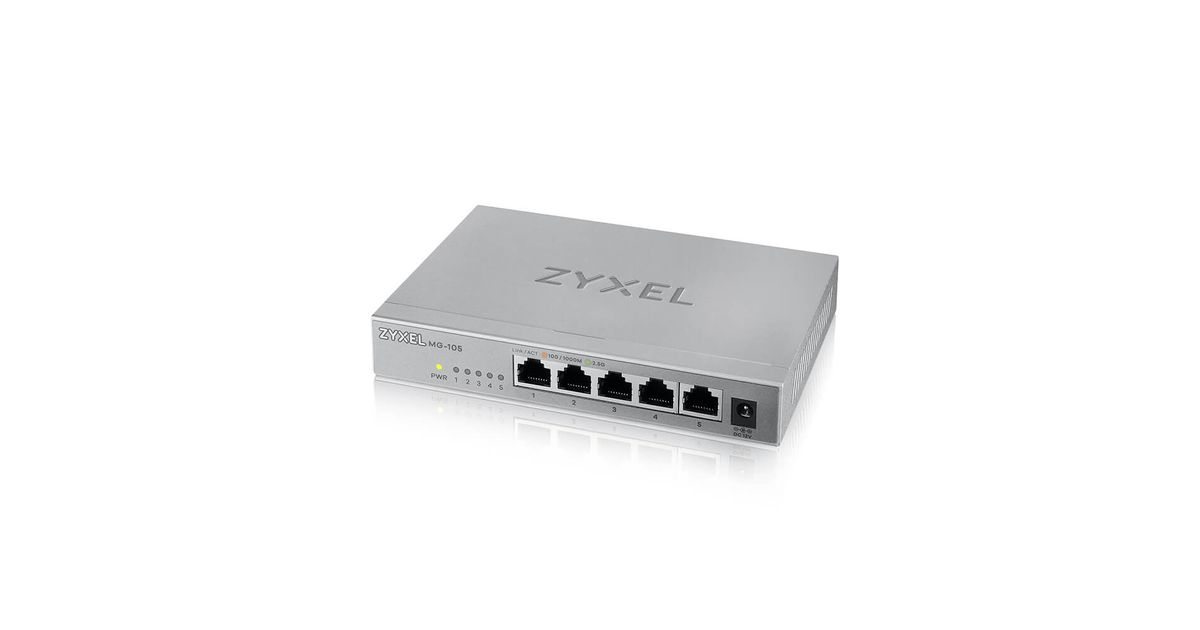

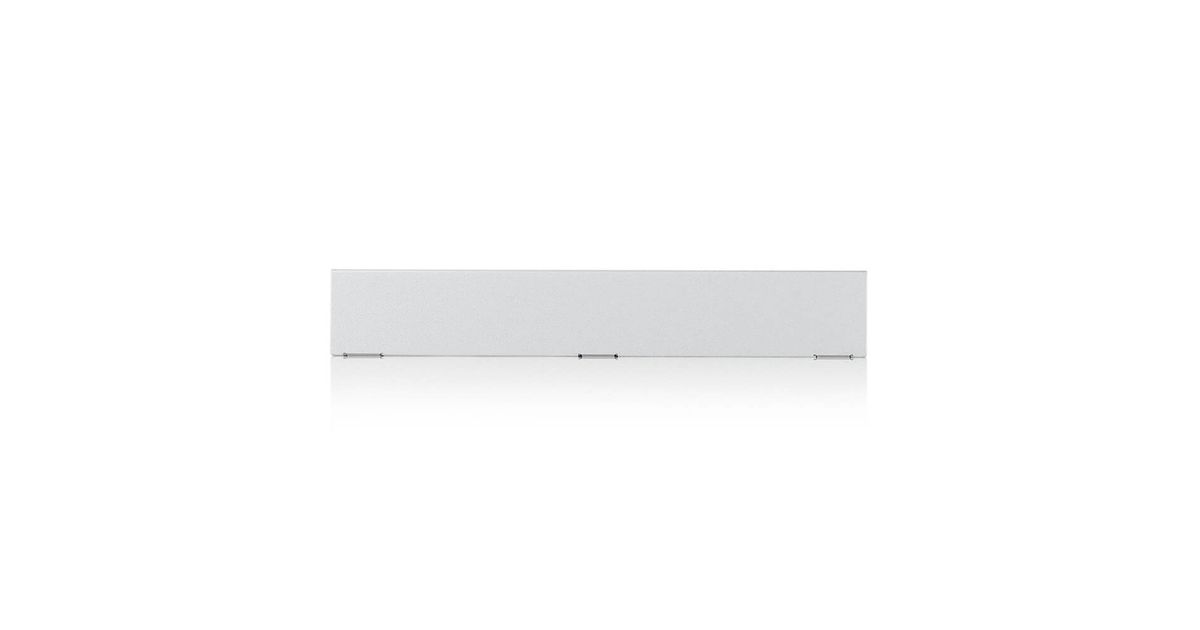

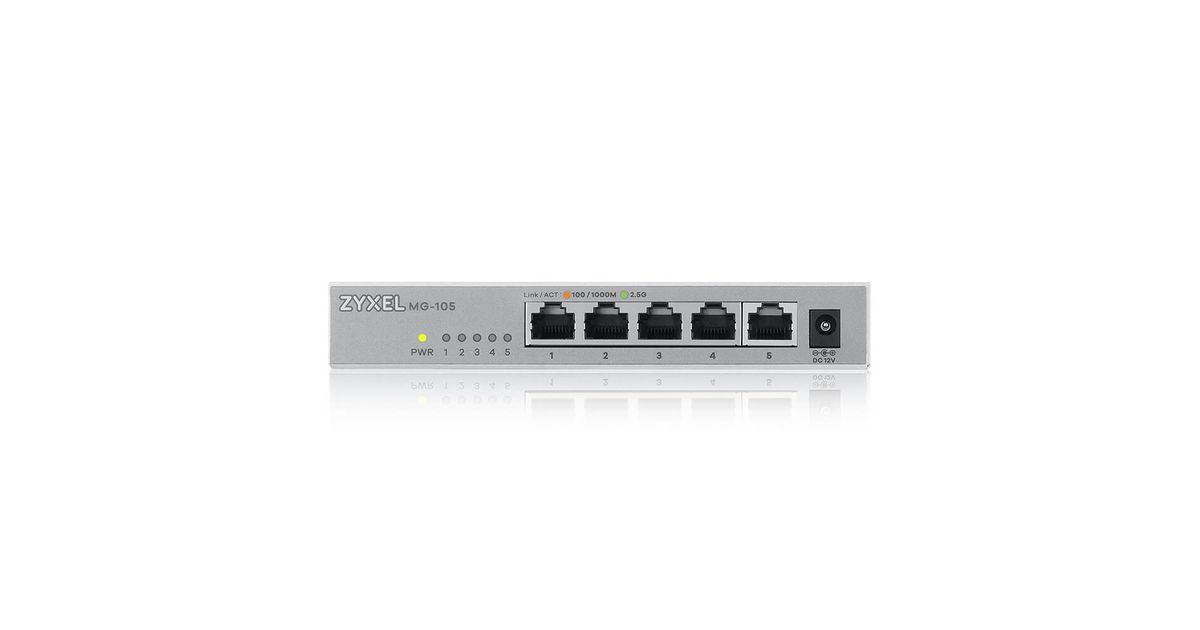

Zyxel MG-105 Unmanaged 2.5G Ethernet (100/1000/2500) Steel
Zyxel MG-105, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Wall mountable
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 106118171 |
| EAN | 00760559127855 |
| Manufacturer part number | NUZYXSS5P000007 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| User guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Wall mountable | Y |
| Certification | CE, EAC, FCC, BSMI |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Jumbo frames support | Y |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Steel |
| LED indicators | Y |
| Performance | |
|---|---|
| Fanless | Y |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 9.34 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 160 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Weight | 460 g |
| Package weight | 919.6 g |
| Packaging data | |
|---|---|
| Package width | 215 mm |
| Package depth | 133 mm |
| Package height | 79 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | CE |
Product Description

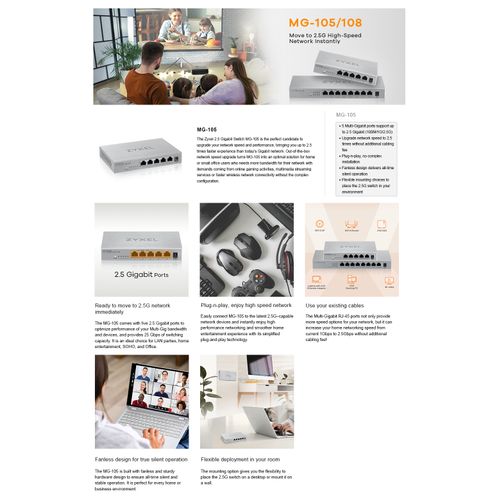

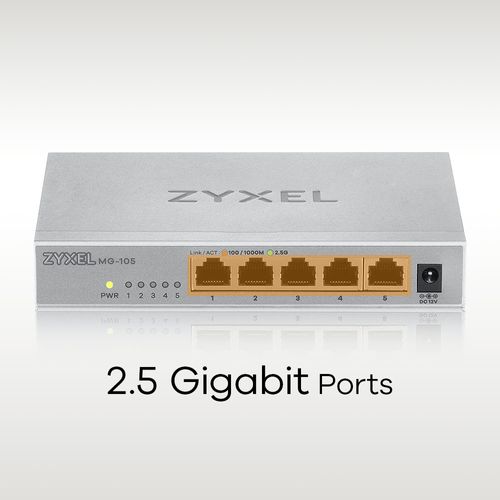

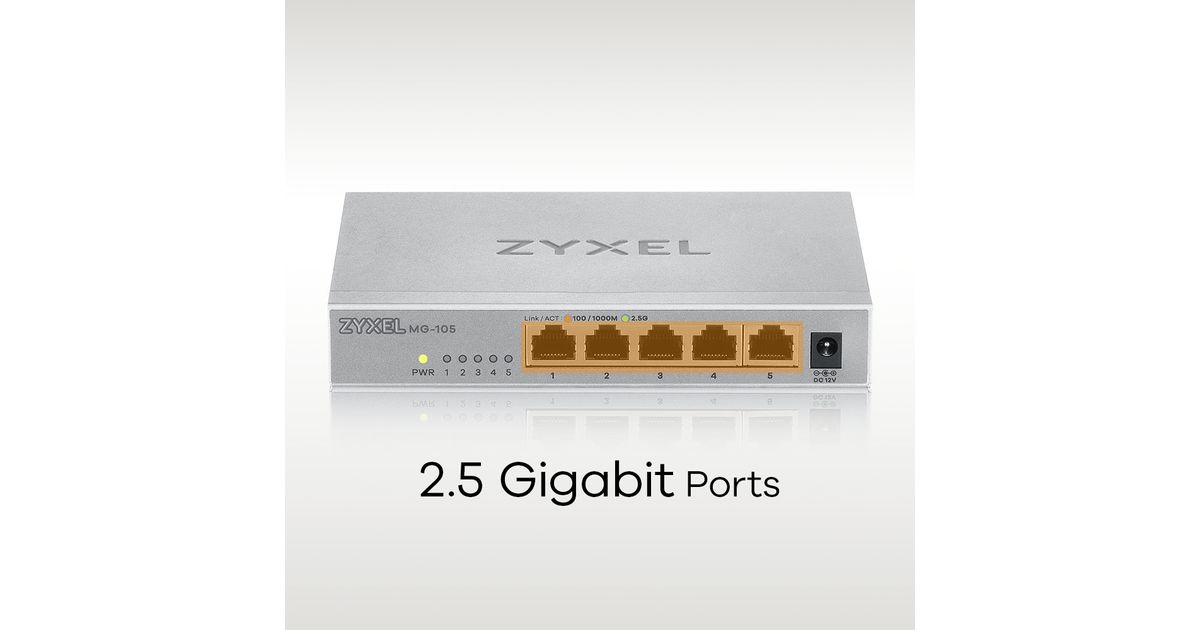

Upgrade Network to Multi-Gig
MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.

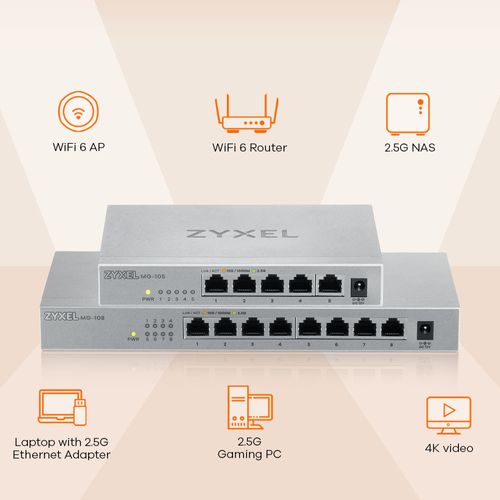

Plug-n-Play, Enjoy High Speed Network

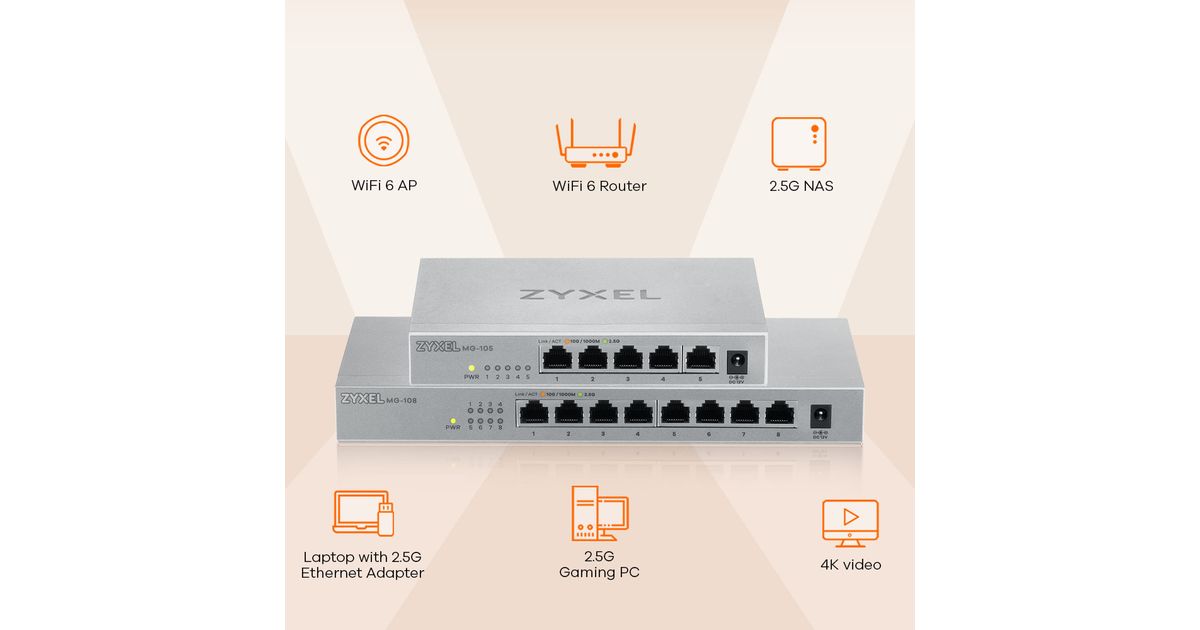

Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.
Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!
Fanless Design For True Silent Operation
MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.

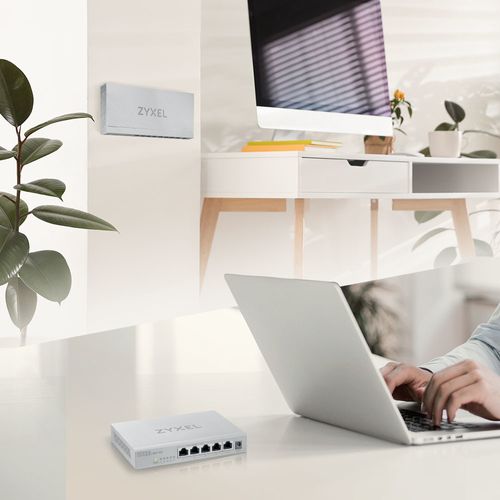

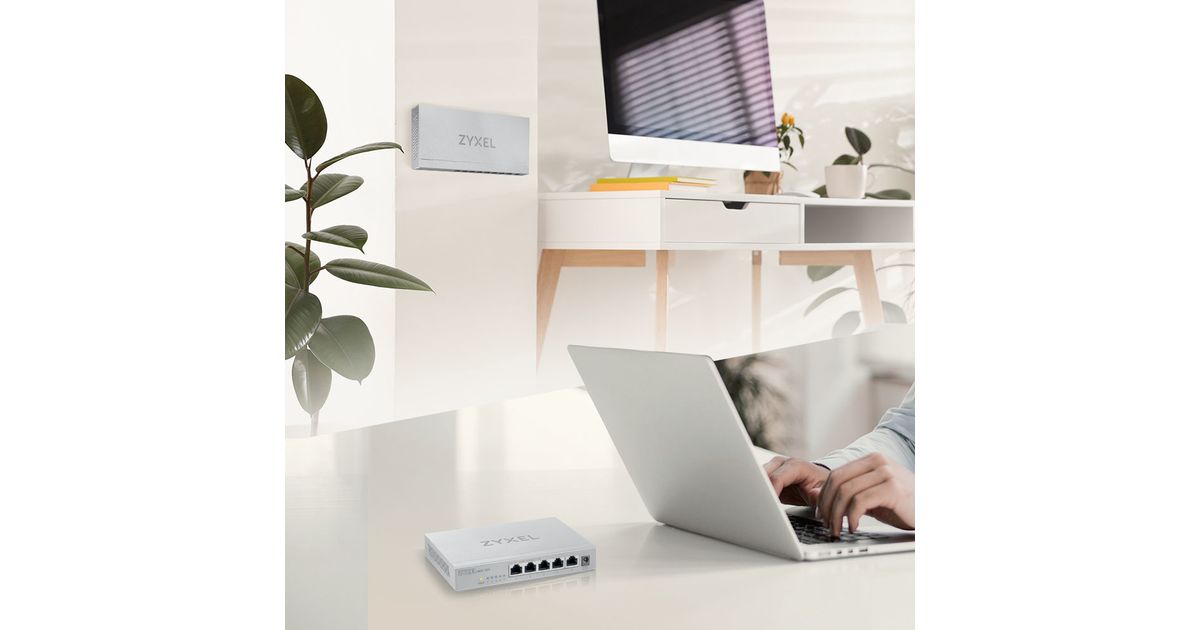

Flexible Deployment In Your Room
The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.
