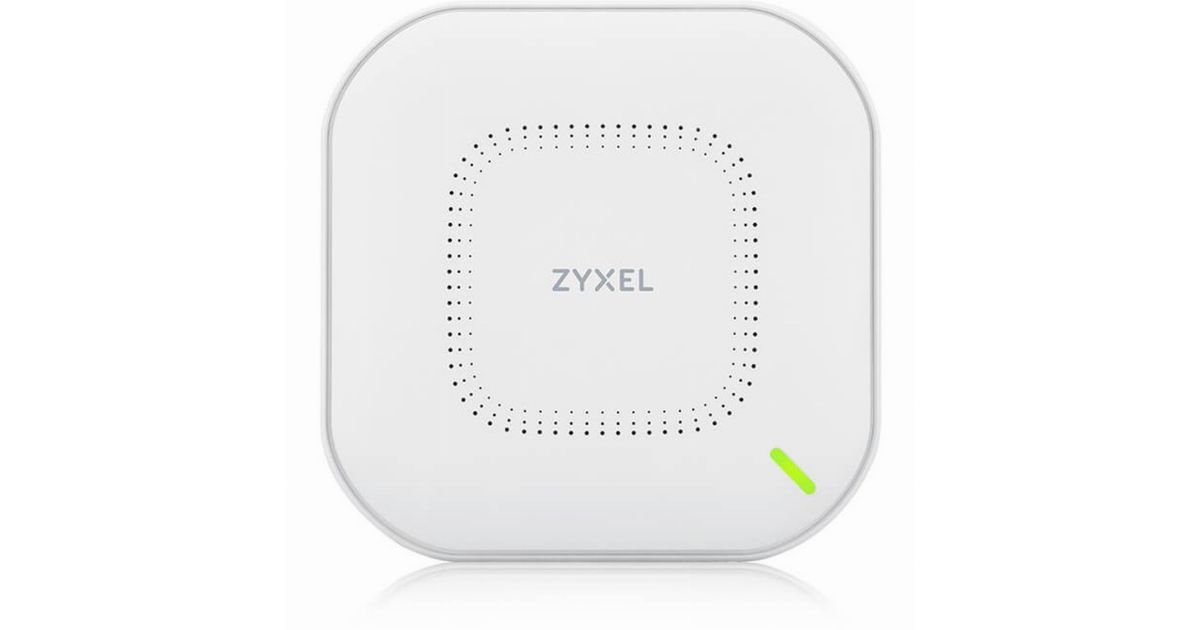

Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
Zyxel NWA110AX, 1000 Mbit/s, 575 Mbit/s, 1200 Mbit/s, 10,100,1000 Mbit/s, 2.412 - 2.472, 5.470 - 5.725 GHz, 0.08 GHz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 212346870 |
| EAN | 04718937610259 |
| Manufacturer part number | KMZYXAPWN110AX0 |
| Category | Access points and routers |
| Features | |
|---|---|
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Automatic channel scanning | Y |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Fast roaming | Y |
| Band steering | Y |
| Transmitting power | 22 dBmW |
| Input voltage | 5 - 12 V |
| Placement | Ceiling, Table, Wall |
| Certification | FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Polarization | Dual polarization |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Y |
| VLAN support | Y |
| Virtual LAN features | SSID-based VLAN assignment |
| Security algorithms | WPA,WPA-PSK,WPA2,WPA2-Enterprise,WPA3 |
| Mouse | |
|---|---|
| Frequency band | 2.412 - 2.472, 5.470 - 5.725 GHz |
| Other features | |
|---|---|
| Bandwidth | 0.08 GHz |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Antennas quantity | 2 |
| Quick start guide | Y |
| Management features | |
|---|---|
| MIMO | Y |
| Web-based management | Y |
| Command-line interface (CLI) | Y |
| Design | |
|---|---|
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
| Product colour | White |
| On/off switch | Y |
| Reset button | Y |
| LED indicators | Y |
| Protocols | |
|---|---|
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power | |
|---|---|
| Input current | 1.5 A |
| Power consumption (typical) | 17 W |
| Security | |
|---|---|
| WPS push button | Y |
| Antenna | |
|---|---|
| Antenna features | Integrated antenna |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Weight | 453 g |
| Package weight | 770 g |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package width | 229 mm |
| Package depth | 216 mm |
| Package height | 64 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Mounting kit | Y |
Product Description
WiFi 6, Wait No More
NWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
NWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
