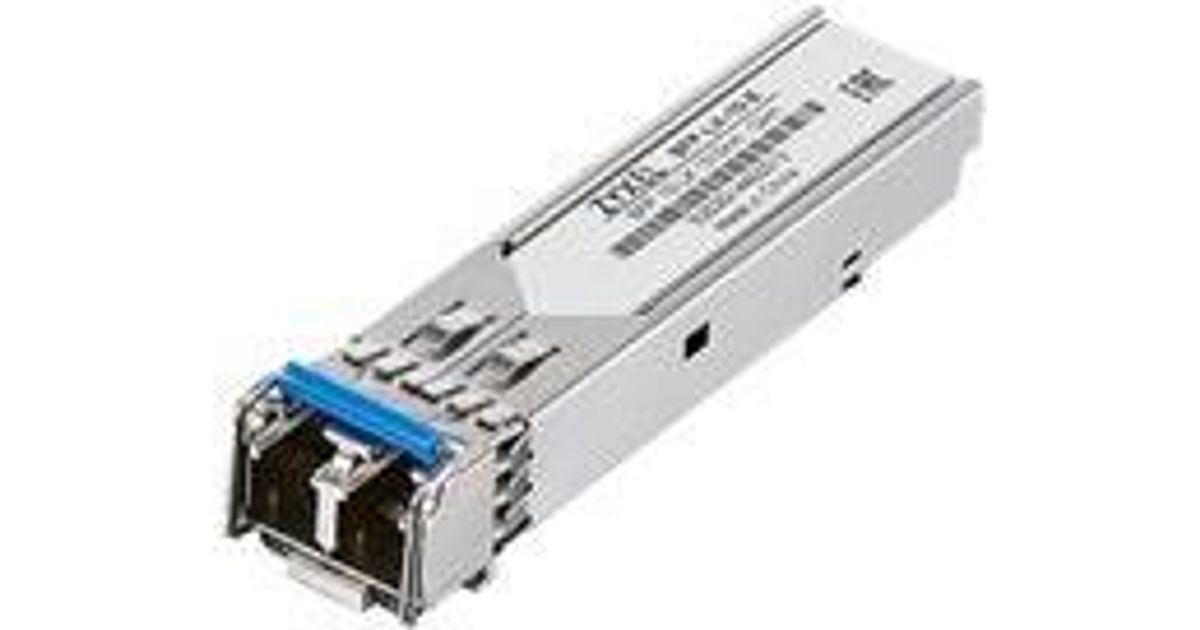

Zyxel SFP-SX-E network transceiver module Fiber optic 1000 Mbit/s 850 nm
Zyxel SFP-SX-E, Fiber optic, 1000 Mbit/s, SFP, LC, 550 m, 850 nm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 214838770 |
| EAN | 04718937619214 |
| Manufacturer part number | SFP-SX-E-ZZBD01F |
| Category | Transceivers & multiplexers |
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Multi-mode fiber (MMF) supported | Y |
| Maximum transfer distance | 550 m |
| Tx power (min) | -3 dBmW |
| Tx power (max) | -9.5 dBmW |
| Rx power (min) | -3 dBmW |
| Rx power (max) | -17 dBmW |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Brand compatibility | Zyxel |
| Input voltage | 3.1-3.5 V |
| Ports & interfaces | |
|---|---|
| Interface type | SFP |
| Optical fiber | |
|---|---|
| Fiber optic connector | LC |
| Wavelength | 850 nm |
| Design | |
|---|---|
| Product colour | Steel |
| Logistics data | |
|---|---|
| Country of origin | China |
| Power | |
|---|---|
| Maximum current | 0.3 A |
| Weight & dimensions | |
|---|---|
| Width | 13.4 mm |
| Depth | 56 mm |
| Height | 12.4 mm |
| Weight | 20 g |
Product Description
Hot-pluggable with maximum flexibility
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
No extra cabling cost to upgrade the fiber plant
Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications.
The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
Complete fiber accessory portfolio
We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
No extra cabling cost to upgrade the fiber plant
Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications.
The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
Complete fiber accessory portfolio
We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.
