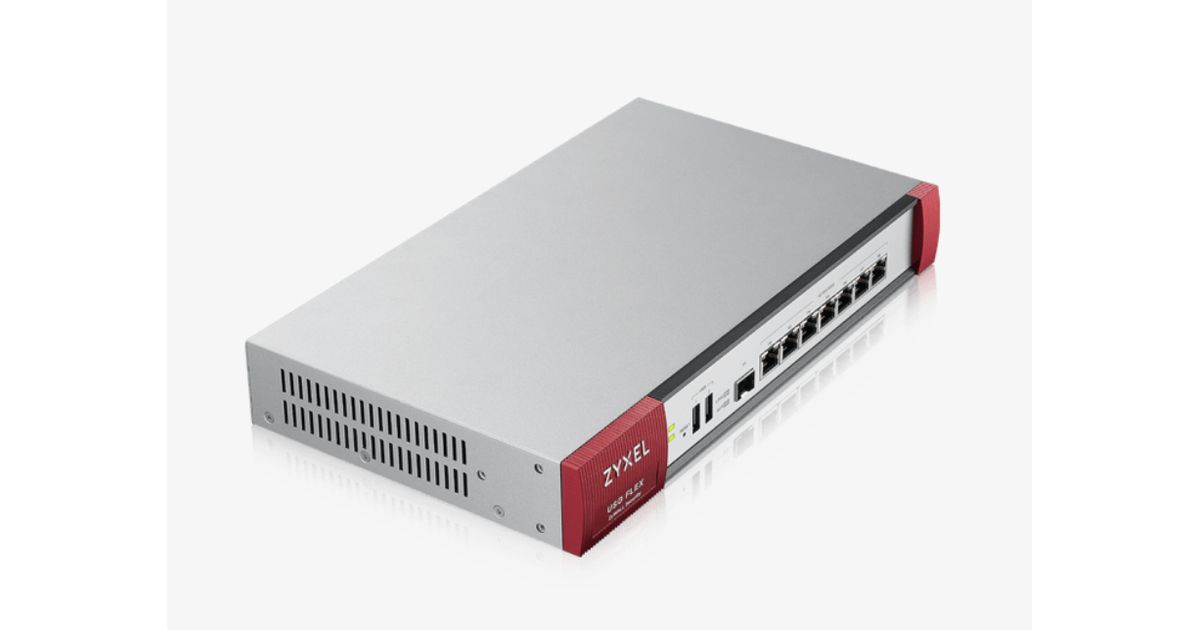

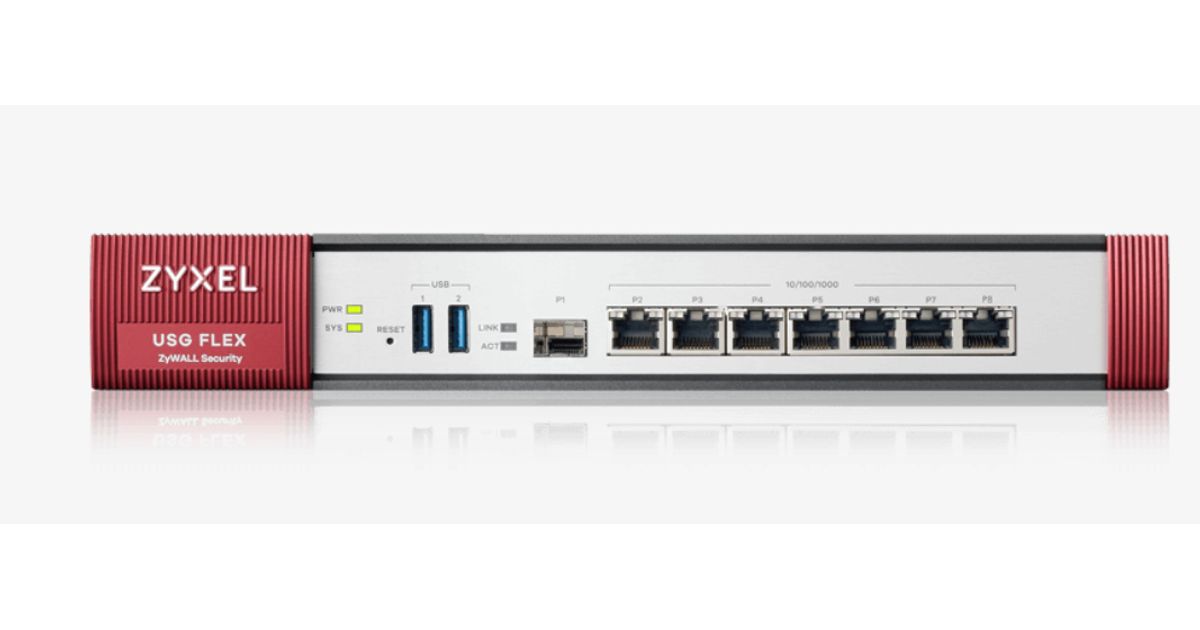

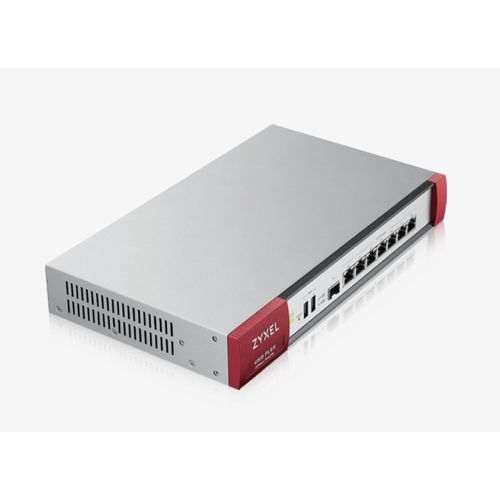

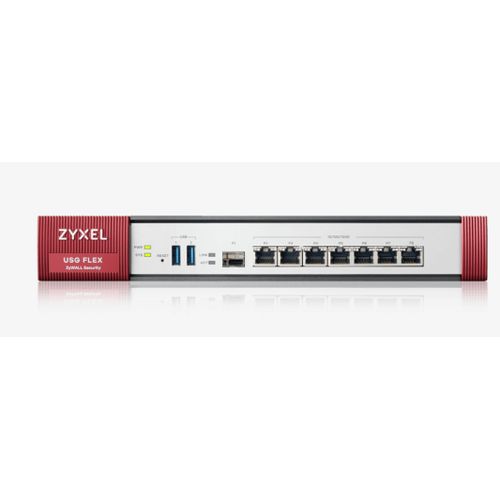

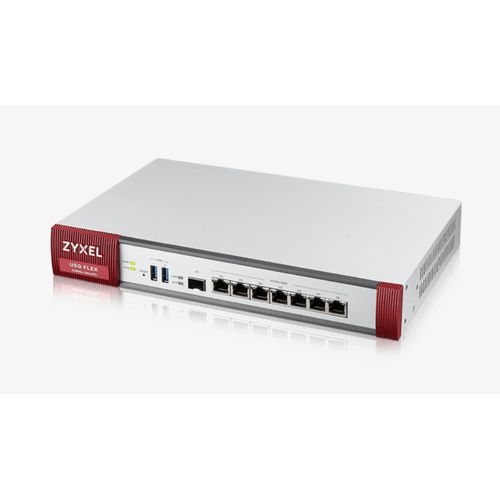

Zyxel USG Flex 500 hardware firewall 1U 2300 Mbit/s
Zyxel USG Flex 500, 2300 Mbit/s, 810 Mbit/s, 82.23 BTU/h, 41.5 dB, 529688 h, DCC, CE, C-Tick, LVD
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 212346869 |
| EAN | 04718937612062 |
| Manufacturer part number | NUZYXBFPLB00030 |
| Category | Firewalls/VPN |
| Data transmission | |
|---|---|
| Firewall throughput | 2300 Mbit/s |
| VPN throughput | 810 Mbit/s |
| Performance | |
|---|---|
| Heat dissipation | 82.23 BTU/h |
| Mean time between failures (MTBF) | 529688 h |
| Built-in fan | Y |
| Other features | |
|---|---|
| Noise level | 41.5 dB |
| Number of VLANs | 64 |
| Features | |
|---|---|
| Certification | DCC, CE, C-Tick, LVD |
| Network | |
|---|---|
| Number of VPN connections | 500 |
| Concurrent SSL/VPN connections (maximum) | 150 |
| Security algorithms | IPSEC,SSL/TLS |
| Security | |
|---|---|
| VPN tunnels quantity | 300 |
| VPN support | IKEv2, IPSec, SSL, L2TP/IPSec |
| URL filtering | Y |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 7 |
| Number of console ports | 1 |
| SFP module slots quantity | 1 |
| Design | |
|---|---|
| Rack mounting | Y |
| Form factor | 1U |
| Power | |
|---|---|
| Input current | 4.17 A |
| Power consumption (max) | 24.1 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 300 mm |
| Depth | 188 mm |
| Height | 44 mm |
| Weight | 1.65 kg |
| Package weight | 2.83 kg |
| Packaging data | |
|---|---|
| Package width | 351 mm |
| Package height | 152 mm |
| Package depth | 245 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Software | |
|---|---|
| Bundled software | 1 year UTM |
