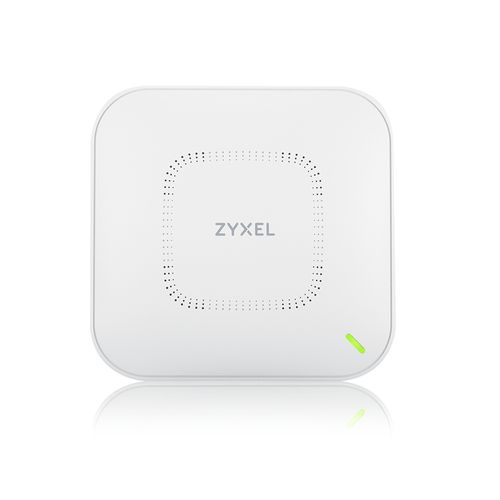

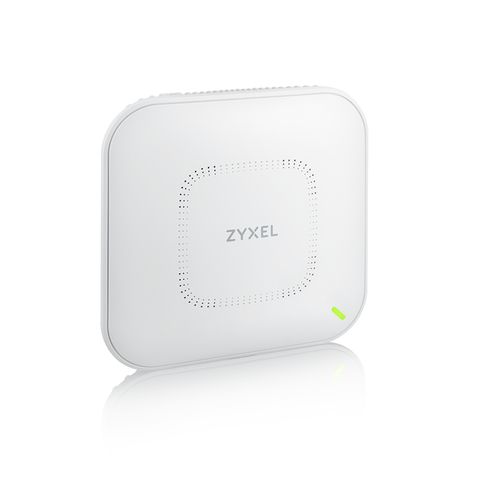

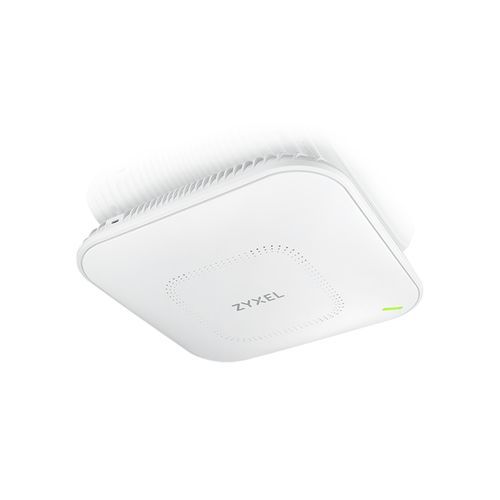

Zyxel WAX650S 3550 Mbit/s White Power over Ethernet (PoE)
Zyxel WAX650S, 3550 Mbit/s, 1150 Mbit/s, 2400 Mbit/s, 1000,2500,5000 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3bt, Multi User MIMO
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 21830357 |
| EAN | 04718937609178 |
| Manufacturer part number | WAX650S-EU0101F |
| Category | Access points and routers |
| Features | |
|---|---|
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate | 3550 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1150 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Fast roaming | Y |
| Wireless isolation | Y |
| Band steering | Y |
| Transmitting power | 26 dBmW |
| Input voltage | 12 V |
| Certification | FCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438 EN 60950-1, IEC 60950-1, BSMI CNS14336-1 |
| Antenna type | Internal |
| Antenna gain level (max) | 5.8 dBi |
| Network | |
|---|---|
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| VLAN support | Y |
| Security algorithms | SNMP,WEP,WPA-Enterprise,WPA-PSK,WPA2,WPA3 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3bt |
| Management features | |
|---|---|
| MIMO | Y |
| Web-based management | Y |
| Design | |
|---|---|
| Receiver sensitivity | -105 dBm |
| Product colour | White |
| Security | |
|---|---|
| MAC address filtering | Y |
| Auto Wireless Distribution System (WDS) | Y |
| Performance | |
|---|---|
| Firmware upgradeable | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 235 mm |
| Height | 53.5 mm |
| Weight | 1.16 kg |
| Package weight | 1.49 kg |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package width | 282 mm |
| Package depth | 266 mm |
| Package height | 79 mm |
| Packaging content | |
|---|---|
| Mounting kit | Y |
Product Description
Faster, smarter WiFi for everyone
The new WiFi 6 standard delivers faster, more consistent connections for every user – even in higher density environments. Any organization that needs to accommodate a large number of devices, can offer better services for everyone, every time they connect to WiFi.
Better-connected classrooms for immersive learning
By delivering faster connections that won’t suffer from increased latency when more devices are connected, WiFi 6 delivers the speed and consistency needed to keep pupils engaged and enthusiastic, so they can make the very best use of technology and online learning resources, helping them to achieve more and teachers to be more effective.
A smarter solution
The WAX650S is also equipped with Zyxel Smart Antenna that continually monitors and adapts every connection to every device, ensuring the optimum performance is delivered at all times. It prevents the connection inconsistencies and delays caused by interferences.
Robust hardware design you can trust
Every hardware design detail is critical to performance and reliability. The WAX650S access point is built with selected high quality components to warrant the best experience and longevity.
Manage it your way!
As it comes with support for NebulaFlex Pro, Zyxel’s scalable, cloud-based management system, the WAX650S can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.
The new WiFi 6 standard delivers faster, more consistent connections for every user – even in higher density environments. Any organization that needs to accommodate a large number of devices, can offer better services for everyone, every time they connect to WiFi.
Better-connected classrooms for immersive learning
By delivering faster connections that won’t suffer from increased latency when more devices are connected, WiFi 6 delivers the speed and consistency needed to keep pupils engaged and enthusiastic, so they can make the very best use of technology and online learning resources, helping them to achieve more and teachers to be more effective.
A smarter solution
The WAX650S is also equipped with Zyxel Smart Antenna that continually monitors and adapts every connection to every device, ensuring the optimum performance is delivered at all times. It prevents the connection inconsistencies and delays caused by interferences.
Robust hardware design you can trust
Every hardware design detail is critical to performance and reliability. The WAX650S access point is built with selected high quality components to warrant the best experience and longevity.
Manage it your way!
As it comes with support for NebulaFlex Pro, Zyxel’s scalable, cloud-based management system, the WAX650S can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.
