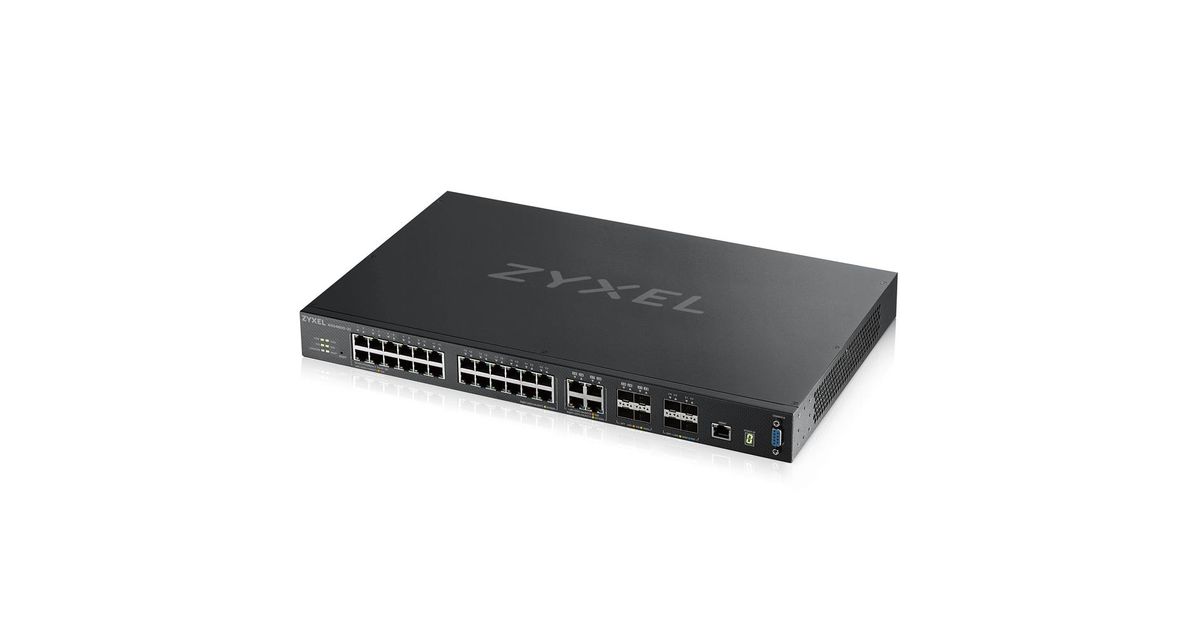

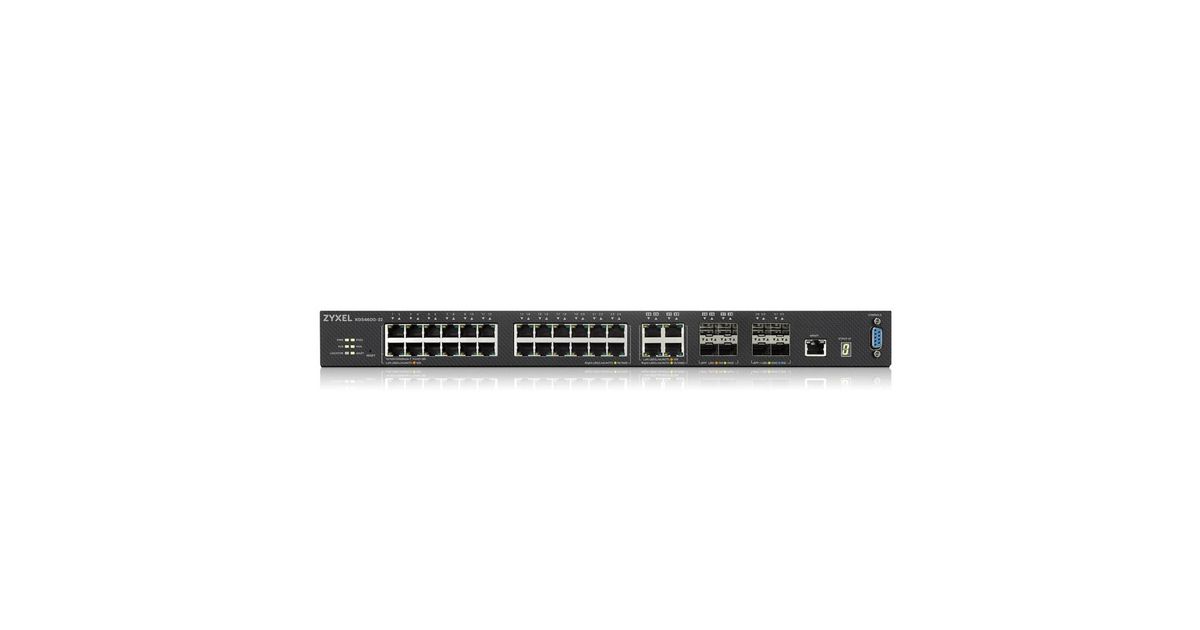

Zyxel XGS4600-32 Managed L3 Gigabit Ethernet (10/100/1000) Black
Zyxel XGS4600-32, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 14368673 |
| EAN | 00760559123567 |
| Manufacturer part number | XGS4600-32-ZZ0102F |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP+ module slots quantity | 4 |
| Console port | RS-232 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Internal memory | 1000 MB |
| Noise level | 59.8 dB |
| Network | |
|---|---|
| 10G support | Y |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| IP routing | Y |
| Routing entries | 12000 |
| Link aggregation | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | Tagged VLAN |
| Security algorithms | SSH,SSH-2,SSL/TLS |
| Features | |
|---|---|
| Flow control support | Y |
| Certification | FCC Part 15 (Class A) CE EMC (Class A) |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 136 Gbit/s |
| Throughput | 101.1 Mpps |
| Number of IP interfaces | 256 |
| Packet buffer memory | 4 MB |
| Security | |
|---|---|
| IGMP snooping | Y |
| Authentication | Port-based authentication |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Product colour | Black |
| Performance | |
|---|---|
| Safety | ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 860610.82 h |
| Heat dissipation | 160.27 BTU/h |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 47 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.96 kg |
| Package weight | 5.69 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Package width | 616 mm |
| Package depth | 335 mm |
| Package height | 107 mm |
Product Description
XGS4600 Series
28-port GbE L3 Managed Switch with 4 SFP+ Uplink
Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel’s brand new Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.
High availability
To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600 Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Advanced L3 features
Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching and Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require.
Flexible management and future-proof networks
The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv4-based networks to a full IPv6 infrastructure for protection to the investments in future network upgrades.
28-port GbE L3 Managed Switch with 4 SFP+ Uplink
Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel’s brand new Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.
High availability
To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600 Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Advanced L3 features
Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching and Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require.
Flexible management and future-proof networks
The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv4-based networks to a full IPv6 infrastructure for protection to the investments in future network upgrades.
