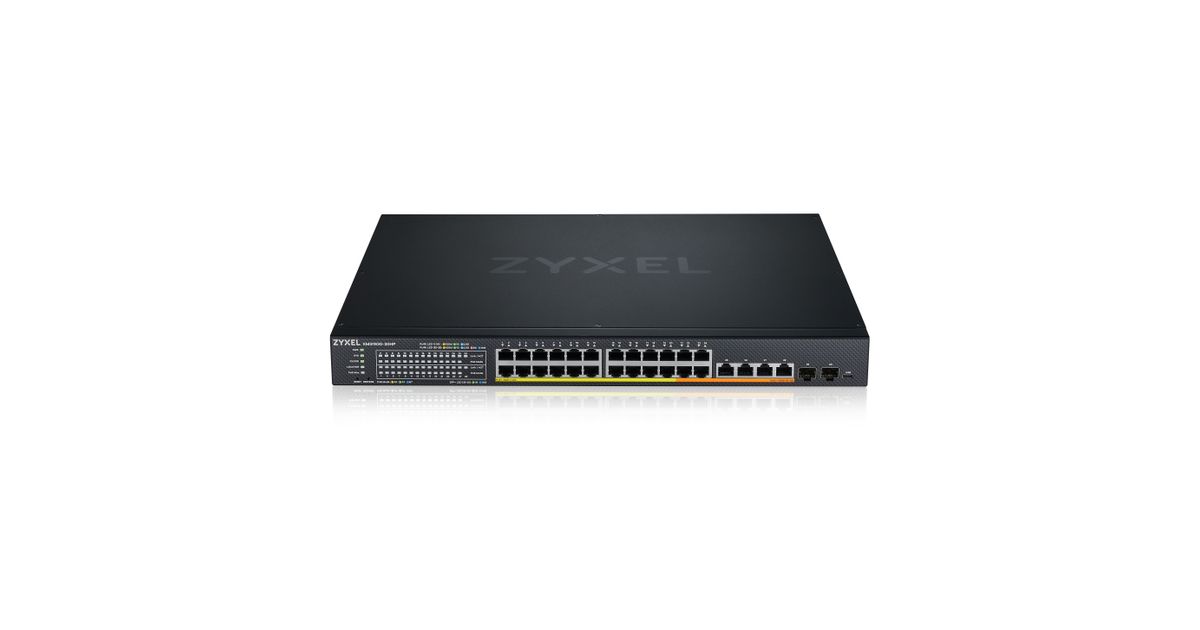

For illustrative purpose only
Zyxel XMG1930-30HP Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Zyxel XMG1930-30HP, Managed, L3, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Zyxel |
| Product code | 219041553 |
| EAN | 04718937622078 |
| Manufacturer part number | XMG1930-30HP-ZZ0101F |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| Configuring Location Settings (CLI) | Y |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP+ modules quantity | 2 |
| 10G Ethernet (copper) ports quantity | 4 |
| Power connector | AC-in jack |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP+ |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4000 |
| Network | |
|---|---|
| 10G support | Y |
| Policy-based routing | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| VLAN support | Y |
| Features | |
|---|---|
| Flow control support | Y |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 178.5 Mpps |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 12000 |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCPv6 relay |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| MAC address filtering | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| Reset button | Y |
| LED indicators | Y |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 587922.31 h |
| Heat dissipation | 864.1 BTU/h |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 864.1 W |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 28 |
| Power over Ethernet plus (PoE+) ports quantity | 20 |
| Total Power over Ethernet (PoE) budget | 700 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 441 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4.85 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Rack mount kit | Y |
Product Description
The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options.
On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
