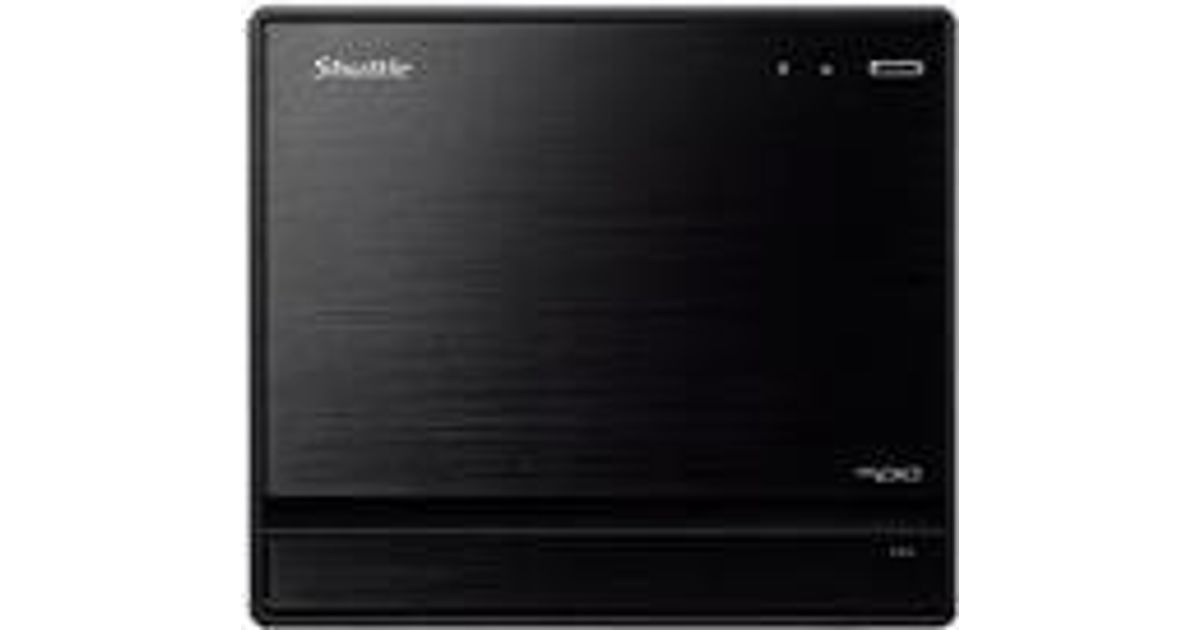

Shuttle XPC cube SW580R8 Black Intel W580 LGA 1200 (Socket H5)
Shuttle XPC cube SW580R8, Cube, PC barebone, Intel W580, LGA 1200 (Socket H5), DDR4-SDRAM, Serial ATA III
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Shuttle |
| Product code | 167195028 |
| EAN | 00887993005447 |
| Manufacturer part number | PC-SW580R821 |
| Category | Barebone PC-s |
| Features | |
|---|---|
| Built-in processor | N |
| Memory voltage | 1.2 V |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Number of storage drives supported | 6 |
| DisplayPort version | 1.4 |
| Motherboard chipset | Intel W580 |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 5.1 channels |
| Audio chip | Realtek ALC897 |
| Linux operating systems supported | Y |
| Power supply type | Internal power supply unit |
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 125 W |
| PCI Express slots version | 3.0, 4.0 |
| Processor socket | LGA 1200 (Socket H5) |
| Memory | |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Y |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10, JBOD |
| Hard drive | |
|---|---|
| Storage drive interface | Serial ATA III |
| Storage | |
|---|---|
| Card reader integrated | N |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® UHD Graphics |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel® I210-AT, Intel® I219-LM, Realtek RTL8125B |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Number of processors supported | 1 |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| Microphone in | Y |
| Headphone outputs | 2 |
| Expansion slots | |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
| Design | |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
| Cooling type | Active |
| Product type | PC barebone |
| On/off switch | Y |
| LED indicators | HDD, Power |
| Housing material | Aluminium |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel Xeon W |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Operating system installed | N |
| Drivers included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, ENERGY STAR, ErP, RoHS |
| Power | |
|---|---|
| Power supply | 500 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 215 mm |
| Depth | 332 mm |
| Height | 190 mm |
| Weight | 3.5 kg |
| Package weight | 4.5 kg |
| Packaging content | |
|---|---|
| Power cord included | Y |
Product Description
14-liter cube for server and workstation applications
Like its sister model SH570R8, the Shuttle XPC Barebone SW580R8 supports 10th/11th generation Intel Core processors, four large 3.5" hard disks with Raid function, 128 GB DDR4-3200 RAM and dual-slot graphics cards. In addition, the SW580R8 also accepts Xeon W-series processors featuring ECC and vPro for more system stability and remote management options. It also offers four network ports for the first time (two of them with 2.5 GBit/s), a second M.2 slot for SSD cards and a TPM security chip. Such impressive performance and range of features in an aluminum chassis with a volume of only 14 liters makes SW580R8 the ideal platform for demanding mini-server and workstation PCs with top reliability even under heavy load.
