Tootepildid on illustratiivsed

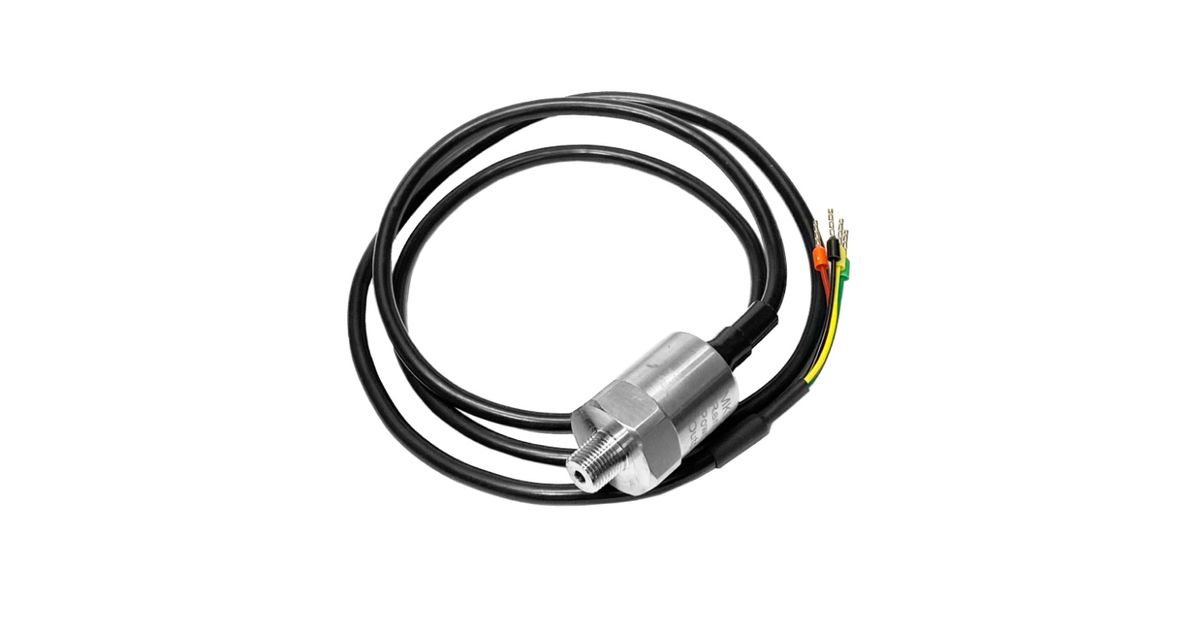

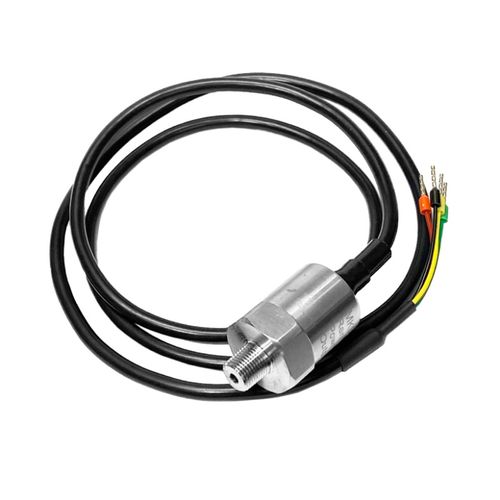

10 BAR (150 PSI) fuel/oil pressure sensor, 1/8 NPT, with 1m (3ft) cable
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Nuke Performance |
| Tootekood | 859157664 |
| Tootja kood | 70-1018C |
| Kategooria | Rõhu-/temperatuuriandurid |
Toote kirjeldus
A pressure sensor that can be fitted to the Nuke Performance FPR100 series fuel pressure regulators.
Affordable and durable fuel and oil pressure sensor that fits straight into the 1/8 NPT thread of the Nuke Performance fuel pressure regulators, the FPR100s AN-6, FPR100m AN-8, and FPR100x AN-10.
Stainless steel (billet) body
For measuring fuel and oil pressure
Compatible with motor oils, fuel, E85, and Bio Ethanol (RE85)
1/8 NPT male thread
Input 5V, Output 0.5 - 4.5V
3 pole shielded cable, length 1m (3ft)
Red: +5V / Green: Output signal
Black: GND / Yellow: Shield
Can be fitted to either a fuel pressure regulator with a 1/8 NPT female threaded port or adapters such as the Nuke Performance fuel pressure gauge adapter (available here)
Also available: With 3 pole Packard type connector Part # : 70-1018
Disclaimer: This is not a Nuke Performance official product, this is only available as an accessory to our product range.
Quantity: 1pc
