Amaran F22C

Tootja: Amaran Tootekood: 116736452 EAN: 06971842183340 MPN: AP30235A12

Toote andmed

Üldandmed
Tootja	Amaran
Tootekood	116736452
EAN	06971842183340
Tootja kood	AP30235A12
Kategooria	Fotostuudio valgustusseadmed

Toote kirjeldus

Amaran F22c

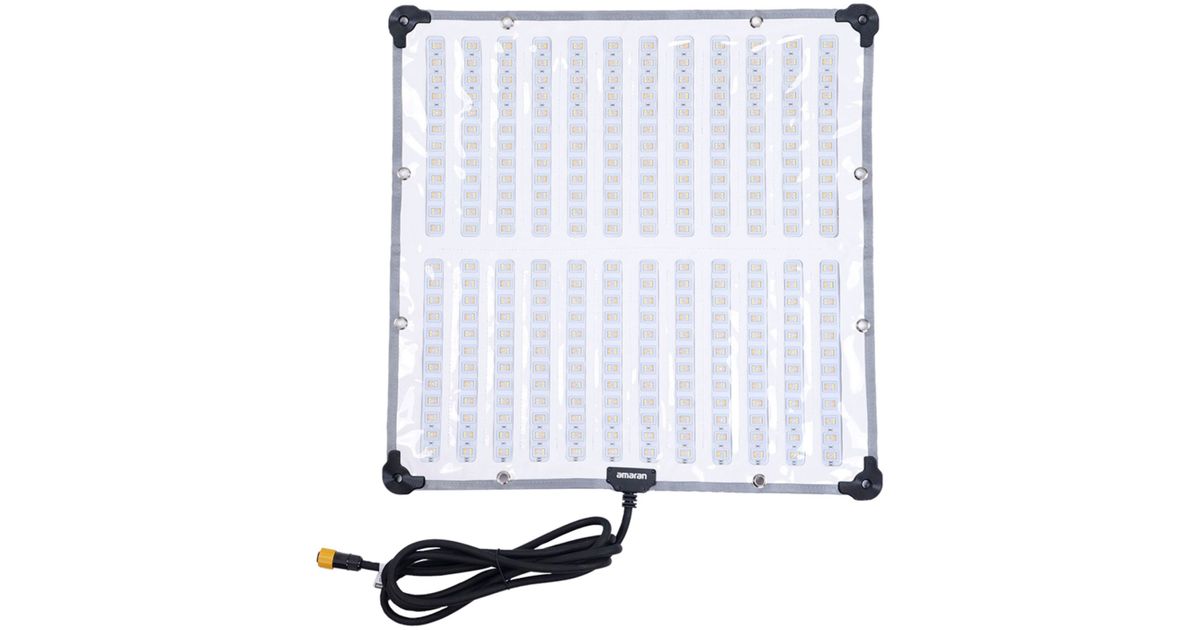

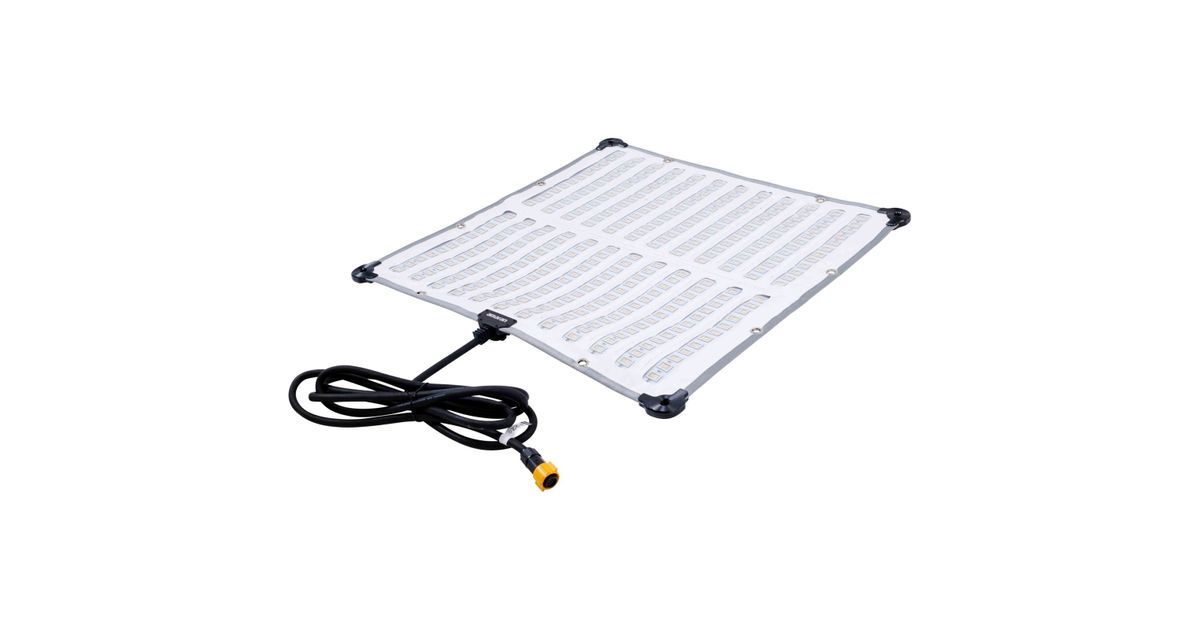

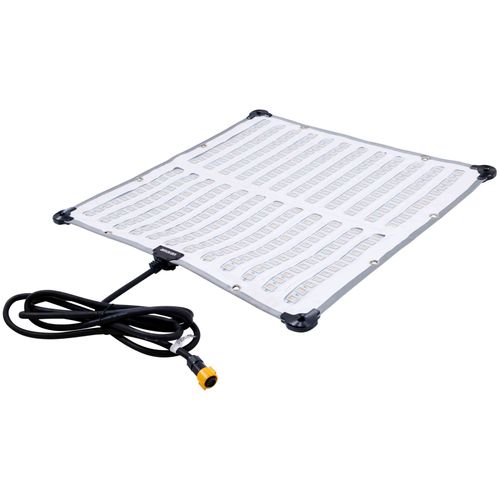

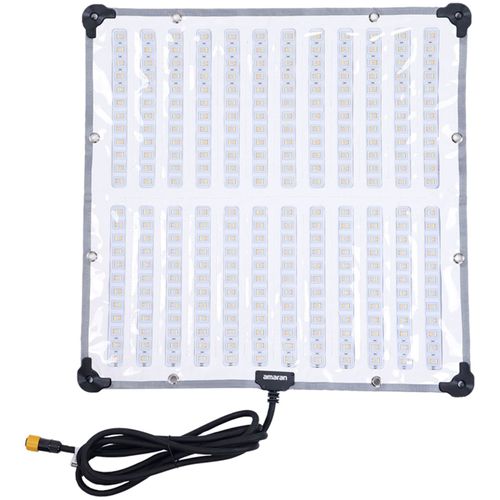

The Amaran F22c is a flexible full-colour LED mat with high output power and numerous application possibilities.

With an output power of 200W, this ultra-lightweight 2'x2' area light can output 6,420+ lux at 1 metre (5600K), outperforming anything else in its class. Install the included foldable softbox and instantly transform this flexible mat into an ultra-thin, soft light that illuminates any subject with outstanding CRI and TLCI values of 95+ and 97+. With infinite dimming from 0 to 100%, you can achieve the perfect light level every time. The F22c features RGBWW LEDs for complete colour control, as well as an adjustable colour temperature from 2500K to 7500K. It offers endless possibilities for creative lighting choices with 360° HSI control, 46 colour filter presets and 15 unique lighting effects. What's more, with the F22c's Sidus Link app control, you can be sure you're always in control of your lighting design.

Setting up the F22c is quick and convenient with the compact, foldable X-frame that stretches the mat into a rigid panel. This frame can be attached directly to a C-stand boom with the straight baby pin adapter, or to any standard light stand with the included right-angle baby pin and tilting tripod mount.

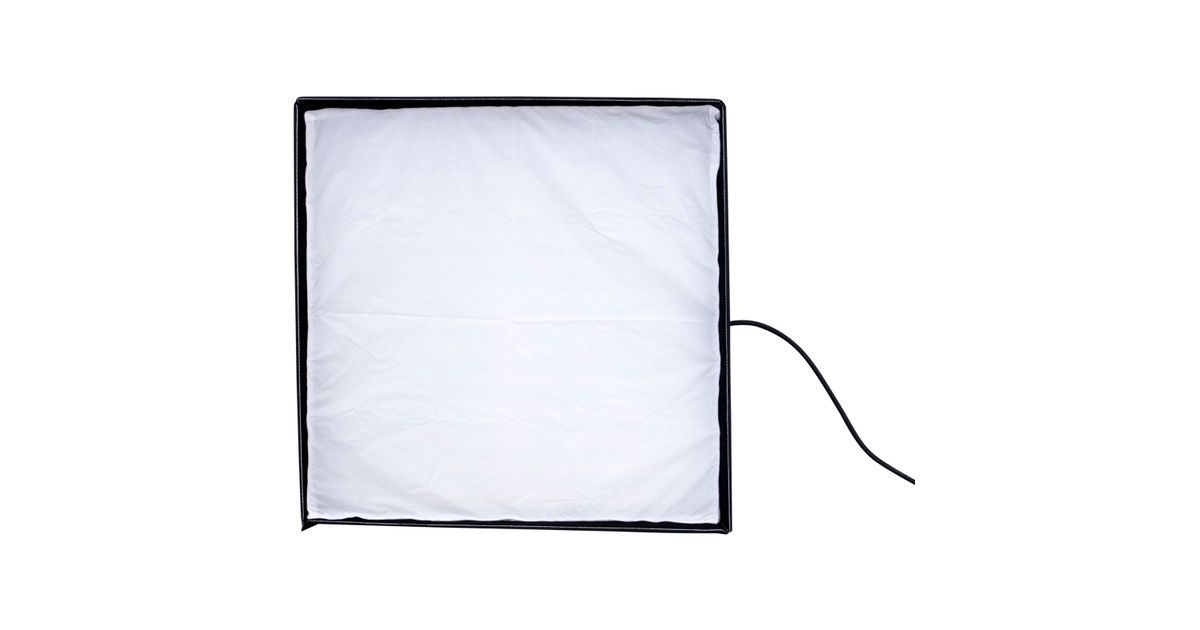

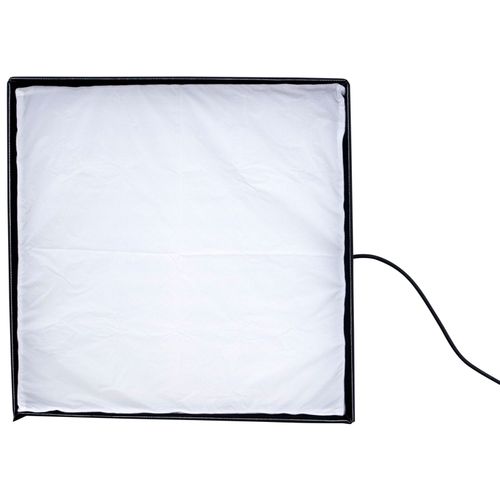

Attach the included softbox, one of two diffusers and the fabric grid with the built-in Velcro to further refine your lighting design and add beautifully controlled, soft light to your scene. You can also replace the softbox with the Amaran F22 lantern light former, sold separately, which allows you to recreate a volumetric lantern or pancake light with this ultra-light full-colour spotlight.

With the integrated three-metre connection cable and the included three-metre extension, the F22c can be used up to six metres away from its compact control box. The control box is equipped with a multi-voltage battery plate, so you can use compatible 14.4V; 26V or 28.8V batteries.

Combined with the soft carrying case, the F22c becomes a portable light that you can take with you wherever you go on any production.

With the Sidus Link app, you can use the unique tools of the Aputure and Amaran ecosystems such as Source Match, Color Picker and Custom FX from your phone or tablet. And unique to the latest fixtures in the Amaran product line, you can control the F22c with a dedicated USB-C to 5-pin DMX512 In & Out adapter cable.

Features:

Flexible 2'x2' RGBWW LED mat with 200 W output.
Maximum power consumption: 240 W
6420+ Lux @ 1 meter (5600 K)
HSI colour control
CCT from 2500 K to 7500 K
Green-magenta adjustment (plus/minus green)
CRI: 95+, TLCI: 97+, CQS: 96+, SSI (Tungsten): 83+, SSI (D56): 74+
Continuous dimming from 0 to 100%
Sidus Link app control
DMX control via USB-C to 5-pin DMX512 in & out adapter (sold separately)
46 colour filter presets
4 user-configurable preset buttons
15 built-in lighting effects: Paparazzi, flash, TV, candle, fire, strobe, explosion, broken bulb, pulsing, welding, police car, colour tracking, etc.
Frequency selection: Suppress flicker, adjustable up to +2000 Hz.
Easy mounting of the power supply with the included battery holder
Multiple DC power supply solutions: 14.4V/26/28.8V/48V (3-pin XLR)
Operating temperature: -10°C ~ 40°C
Lantern light shaper with light control skirt (sold separately)

Scope of delivery:

1x flexible Amaran F22c RGBWW 2x2 LED mat
1x Amaran F22c control box
1x Amaran F22c connection cable extension (3m)
1x Amaran F22 tension frame
1x Amaran F22 softbox frame
1x Amaran F22 diffuser (1/2 aperture)
1x Amaran F22 diffuser (2,5 aperture)

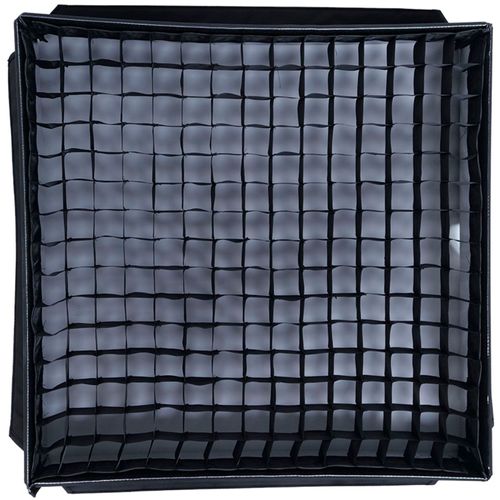

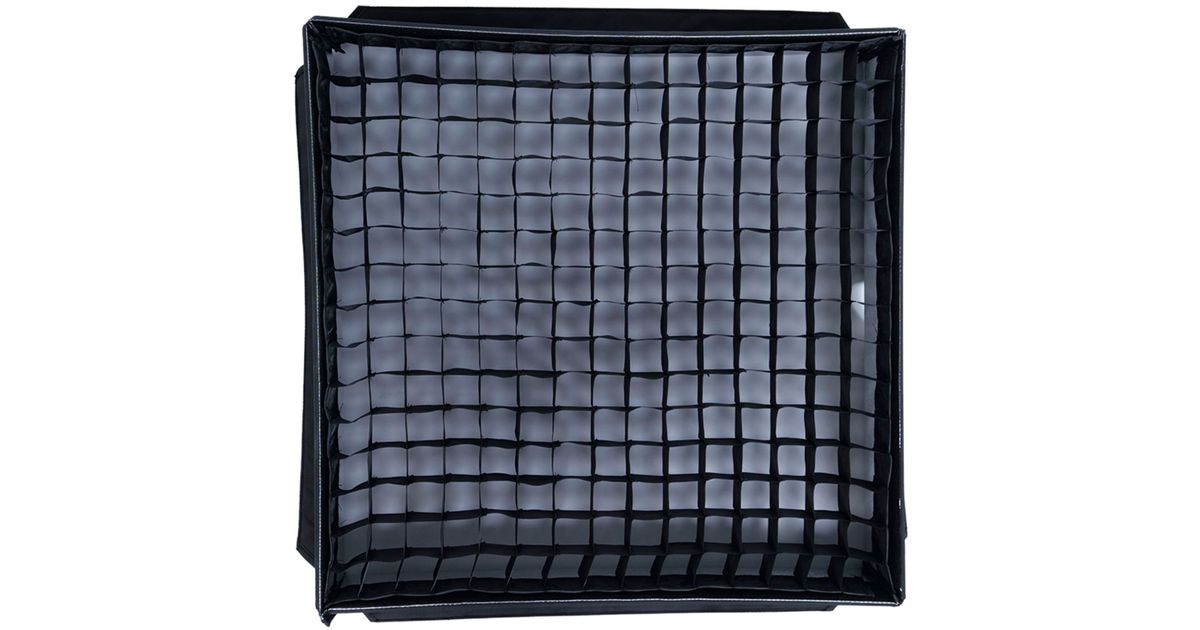

1x Amaran F22 fabric grid
1x right-angled Baby Pin adapter
1x straight Baby Pin adapter
1x foldable tripod holder

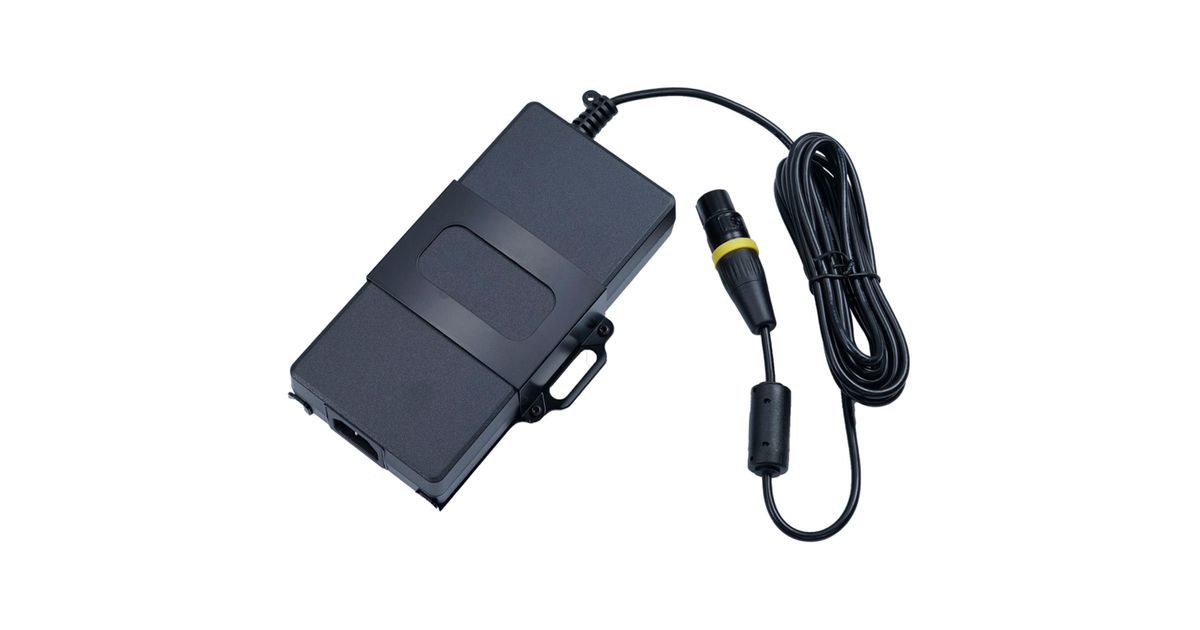

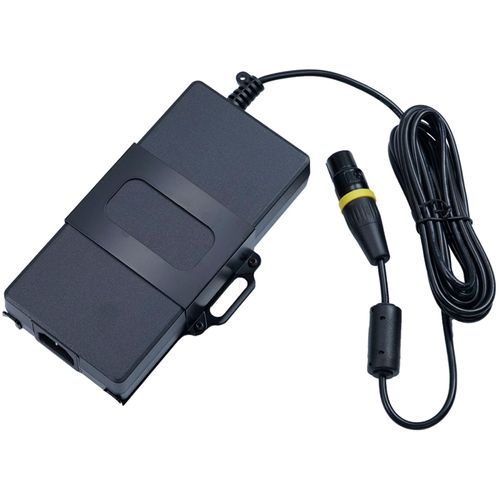

1x power supply unit
1x power cable
1x carrying bag

Special purpose lamp (photo / studio stamp) - not suitable for household room illumination.

Energy Supply
- Operating Mode:
- Rechargeable Battery / Mains
- Rechargeable Batteries Included in Delivery:
- No
Lamp
- Type of Bulb:
- LED
Lamp
- Studio Light / Type:
- Fluorescent Light
- Assembly (W):
- 200
- Cable Length (m):
- 3 + 3
