Tootepildid on illustratiivsed
Atomos Shinobi 7
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Atomos |
| Tootekood | 114889602 |
| EAN | 00814164022576 |
| Tootja kood | ATOMSHB002 |
| Kategooria | Fotostuudio valgustusseadmed |
Toote kirjeldus
ATOMOS Shinobi 7
Big, bright and beautiful
The Shinobi 7 is a combination of a large 7-inch HDR screen with a peak brightness of 2200 nits and the lightweight monitor-only features of the first Shinobi 5''. The Shinobi 7 handles signals up to 4Kp60 via HDMI.
Camera control via touch screen
Control key camera functions via the Shinobi 7's intuitive touchscreen. With the optional Atomos USB-C to Serial cable, you have direct control over all Z Cam E2 series camera menu configurations such as aperture, white balance, shutter speed and ND.
High Dynamic Range
The Shinobi 7's screen displays an amazing 10+ f-stops dynamic range of Log/PQ/HLG signals.
3D LUTs
In addition to log to HDR conversions, you can also use up to eight custom LUTs for downstream or live feed.
With the proven AtomOS 10
Shinobi 7 uses AtomOS 10 and has extensive assistance tools for image assessment.
Atomos Analysis Mode
The analysis function allows you to simultaneously display a waveform, histogram and vectorscope while controlling the image.
Continuous power
The Shinobi 7's two battery bays allow for continuous operation and easy hot-swapping of batteries.
Pro I/O and cross conversion
With built-in cross-conversion and 4k-to-HD down-conversion, you can easily incorporate HDMI cameras into SDI workflows without the need for separate converters.
Features:
- 2200 nits HDR / daylight-suitable display
- HDMI 2.0 support at 4Kp60, 3G-SDI support up to 2Kp60
- Bi-directional HDMI < > SDI signal cross conversion
- Dual NPF battery slot for continuous performance
- 3D LUT support with preview and signal output
- AtomHDR enables the conversion of log to HDR for display and playout
- Touchscreen camera control via optional cable for compatible cameras of aperture, WB, shutter speed and ND
- Exposure Control Tools: Histogram, Waveform, False Colours & Zebras
- Vertical and horizontal screen mode
- Safely pull focus with zoom levels 4:1, 2:1, 1:1
- Headphone monitoring of the camera audio signal
-
Video Recording
- Full HD Video Recording (1080p):
- 60fps
- 4k Video Recording (UHD):
- 60fps
-
Display
- Screen Diagonal (cm):
- 17,78
- Screen Diagonal (inch):
- 7
- Resolution (Pixel):
- 1920 x 1200
- Brightness (cd/m²):
- 2200
- Horizontal Viewing Angle (°):
- 178
- Vertical Viewing Angle (°):
- 178
- Aspect Ratio:
- 16:10
-
Energy Supply
- Energy Supply:
- Rechargeable Battery / Mains
- Battery Type:
- Lithium-Ion
- Required Amount of Batteries:
- 2
- Rechargeable Batteries Included in Delivery:
- No
-
Storage
- Storage Type:
- SD
-

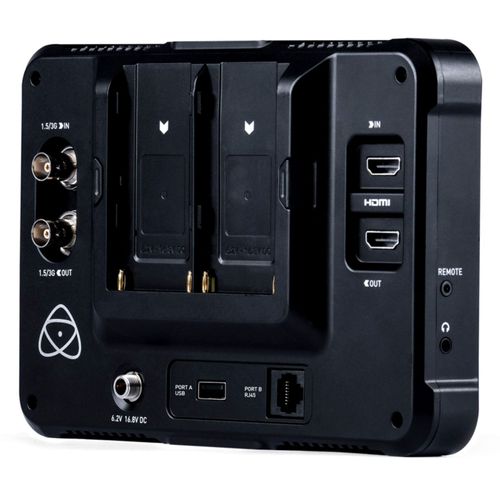

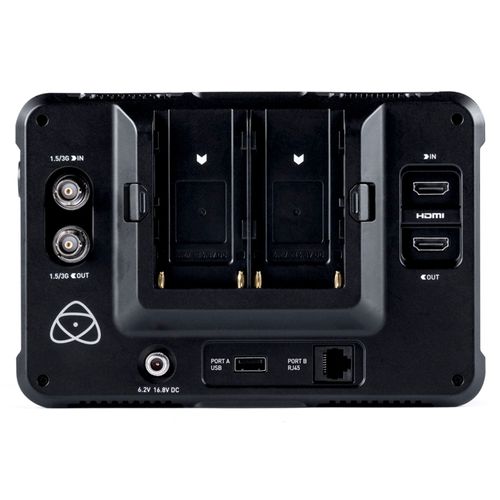

Ports
- HDMI Input:
- 1x
- HDMI-Out:
- 1x
- Headphone Jack:
- Yes
- SDI Input:
- 1x
- SDI Output:
- 1x
-
Type
- Type:
- Monitor
-
General
- Colour:
- Black
- Width (mm):
- 198
- Height (mm):
- 133
- Depth (mm):
- 39
- Weight (g):
- 577
