be quiet! SHADOW BASE 800 Black
Toote andmed
Toote kirjeldus

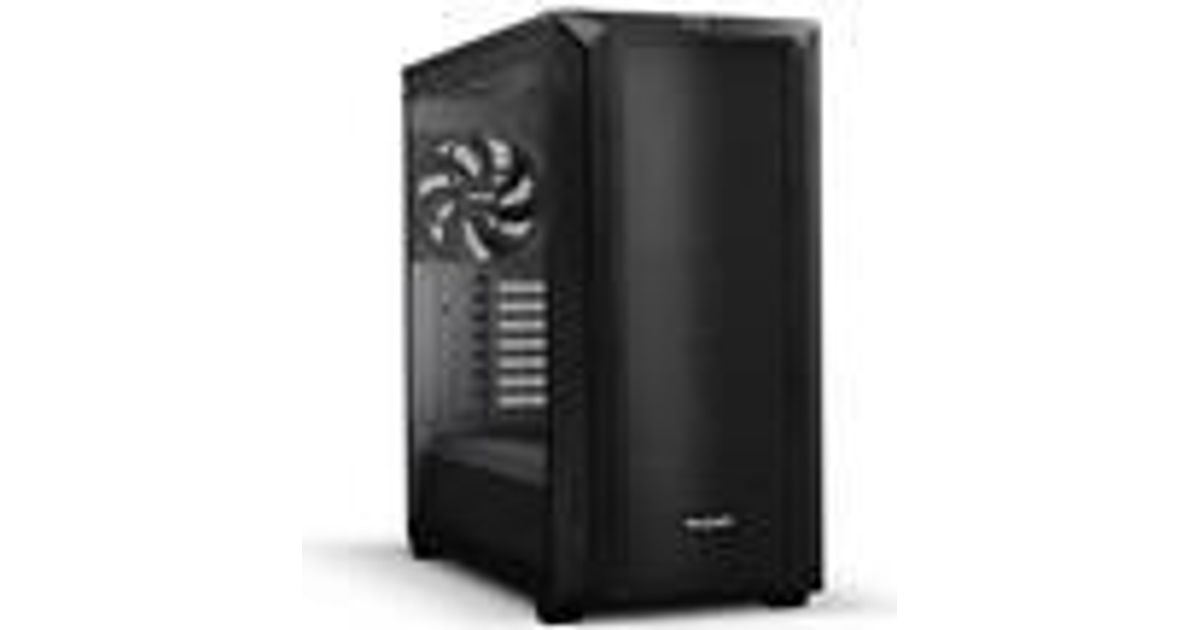

be quiet! SHADOW BASE 800, black
The Shadow Base 800 is an airflow-optimized mid-tower case that offers quiet operation with space for large components such as 420mm radiators, long graphics cards or E-ATX motherboards.
Features:
- Outstanding high airflow thanks to open mesh design
- 3x Pure Wings 3, 140 mm PWM fans provide high airflow with quiet operation
- Spacious design with enough room even for the largest components
- Easy and tool-free installation of HDDs and SSDs
- Rotatable PCIe slots allow vertical installation of GPUs
- Easy to use cable management for a clean and tidy look
- Tinted side window made of tempered glass allows a great insight
- PCI slots: 7
Dimensions, weight, material:
- Color: black
- Case dimensions excl. feet (L x W x H): 550 x 247 x 503 mm
- Case dimensions incl. feet (L x W x H): 550 x 247 x 522 mm
- Weight: 11.7 kg
- Material: steel, plastic, glass
Form factor / motherboard compatibility:
- Form factor PSU: ATX PS/2
- Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
Maximum fan installation:
- Maximum fans: 8
- Top: 3x 140 / 3x 120 mm
- Front: 3x 140 / 3x 120 mm
- Rear: 1x 140 / 1x 120 mm
- Bottom: 1x 140 / 1x 120 mm
Pre-installed fans:
- Fan front: 1x Pure Wings 3, 140 mm PWM
- Fan rear: 1x Pure Wings 3, 140 mm PWM
- Fan top: 1x Pure Wings 3, 140 mm PWM
- Dimensions (L x W x H): 140 x 140 x 25 mm
- Speed at 100% PWM / 12V: 1200 rpm
- Air flow at 100%: 57.4 / 97.5 CFM / m3/h
- Air pressure at 100% PWM / 12V: 0.96 mm H2O
- Noise level at 100% PWM / 12V: 21.9 dB(A)
- Voltage range: 5 - 13.2 V DC
- Power consumption: 3.6 W
- Rated current: 0.3 A
- Connector plug: 4-pin PWM
- Life expectancy @ 25 °C: ca, 80000 h
Optional radiator installation:
- Top: 120 / 140 / 240 / 280 / 360 / 420 mm
- Front: 120 / 140 / 240 / 280 / 360 / 420 mm
- Rear: 120 mm
Power supply compatibility:
- Maximum dimensions excl. fan at the case bottom: 305 mm
- Maximum dimensions incl. fan at the case bottom: 260 mm
Graphics card compatibility:
- With HDD cage (in height of the graphics card): 430 mm
- Without HDD cage (in height of the graphics card): 430 mm
- Maximum PCI slots with vertical graphics card: 7
Drive capacity:
- 3.5" slots (included): 2
- 3.5" slots (max.): 2
- 2.5" slots (included): 4
- 2.5" slots (max.): 8
Cooling:
- Max. installation height of the CPU cooler: 180 mm
- Air channels: Front / Top / Rear / Bottom
I/O Panel:
- 1x USB Type-C 3.2 Gen. 2
- 2x USB Type-A 3.2 Gen 1
- 1x HD-Audio
Isolation and damping:
- Side panel noise insulated
- Decoupled HDD cages
- Decoupled fans
- Decoupled power supply
