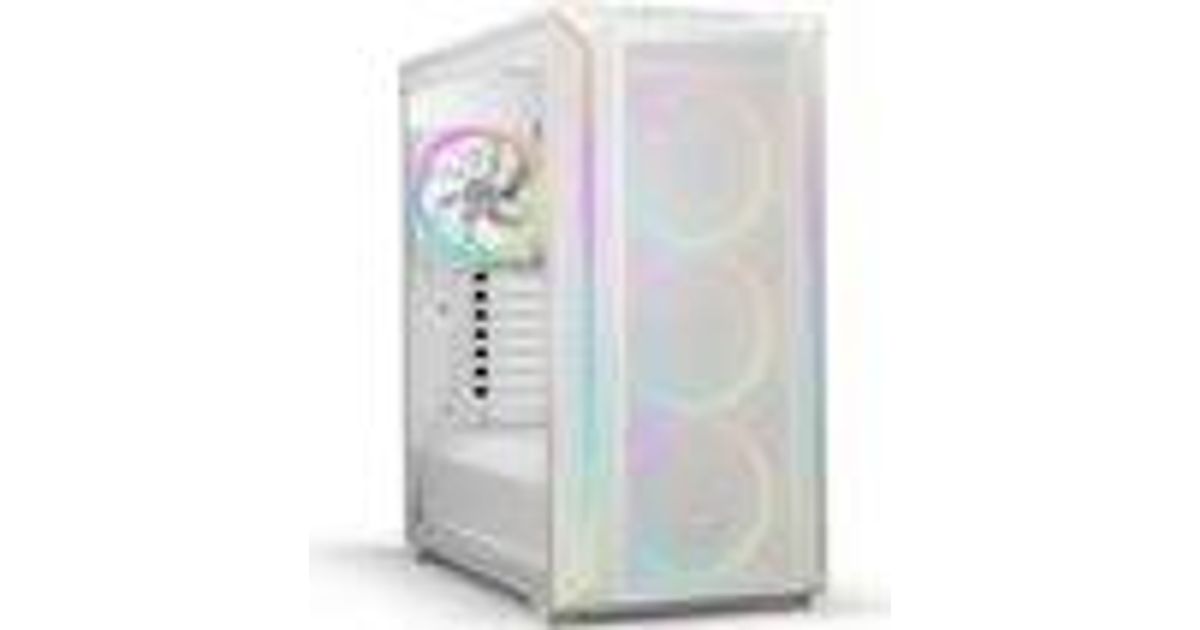

be quiet! SHADOW BASE 800 FX White
Toote andmed
Toote kirjeldus
be quiet! SHADOW BASE 800 FX, ARGB fan, white
Features:
- Impressive lighting, outstanding airflow
- The Shadow Base 800 FX white is an airflow-optimized case with ARGB lighting and space for bulky components such as large graphics cards and E-ATX motherboards.
- ARGB lighting with ARGB control for maximum design options
- Various colors and modes for a custom look
- 4 Light Wings White 140mm PWM fans provide high airflow with quiet operation
- Outstanding high airflow thanks to open mesh design
- Spacious design with enough room even for the largest components
- Integrated PWM and ARGB hub
- Easy and tool-free installation of HDDs and SSDs
- Tinted side window made of tempered glass allows a great insight
- Removable dust filters: 2x (1x front, 1x bottom)
- PCI slots: 7
Form Factor / Motherboard Compatibility:
- PSU form factor: ATX PS/2
- Motherboard Compatibility: E-ATX / ATX / M-ATX / Mini-ITX
Dimensions, weight, material:
- Color: white
- Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
- Case dimensions excl. feet (L x W x H): 550 x 247 x 503 mm
- Case dimensions incl. feet (L x W x H): 550 x 247 x 522 mm
- Form factor PSU: ATX PS/2
- Weight: 12.3 kg
- Material: steel, plastic, glass
Maximum fan installation:
- Maximum fans: 8
- Top: 3x 140 / 3x 120 mm
- Front: 3x 140 / 3x 120 mm
- Rear: 1x 140 / 1x 120 mm
- Bottom: 1x 140 / 1x 120 mm
Pre-installed fans:
- Fan front: 3x Light Wings White 140 mm PWM
- Fan rear: 1x Light Wings White 140 mm PWM
- Dimensions (L x W x H): Front: 140 x 140 x 25 mm / Rear: 140 x 140 x 25 mm
- Speed at 100% PWM / 12V: 1500 rpm
- Air flow at 100%: 56 / 95.14 CFM / m3/h
- Air pressure at 100% PWM / 12V: 1.49 mm H2O
- Noise level at 100% PWM / 12V: 23.3 dB(A)
- Voltage range: 5 - 13.2 V DC
- Power consumption: 3.84 W
- Rated current: 0.32 A
- Connector plug: 4-pin PWM
- Life expectancy @ 25 °C: ca, 60000 h
Optional radiator installation:
- Top: 120 / 140 / 240 / 280 / 360 / 420 mm
- Front: 120 / 140 / 240 / 280 / 360 / 420 mm
- Rear: 120 mm
Power supply compatibility:
- Maximum dimensions excl. fan at the case bottom: 305 mm
- Maximum dimensions incl. fan at the case bottom: 260 mm
Graphics card compatibility:
- With HDD cage (in height of the graphics card): 430 mm
- Without HDD cage (in height of the graphics card): 430 mm
- Maximum PCI slots with vertical graphics card: 7
Drive capacity:
- 3.5" slots (included): 2
- 3.5" slots (max.): 2
- 2.5" slots (included): 4
- 2.5" slots (max.): 8
Cooling:
- Max. installation height of the CPU cooler: 180 mm
- Air channels: Front / Top / Rear / Bottom
Lighting:
- LED lighting
- LEDs: 40
- LED technology: ARGB - 5V
- LEDs synchronizable with control / motherboard
I/O Panel:
- 1x USB Type-C 3.2 Gen. 2
- 2x USB Type-A 3.2 Gen 1
- 1x HD-Audio
Isolation and damping:
- Side panel noise insulated
- Decoupled HDD cages
- Decoupled fans
- Decoupled power supply
