Blackmagic Design HyperDeck Studio HD plus

Tootja: Blackmagic Design Tootekood: 115304037 EAN: 09338716007121 MPN: BM-HYPERD/ST/DCHP

Toote andmed

Üldandmed
Tootja	Blackmagic Design
Tootekood	115304037
EAN	09338716007121
Tootja kood	BM-HYPERD/ST/DCHP
Kategooria	Fotostuudio valgustusseadmed

Toote kirjeldus

HyperDeck Studio HD Plus

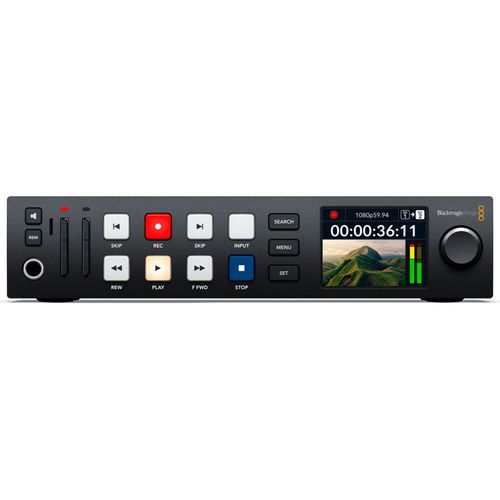

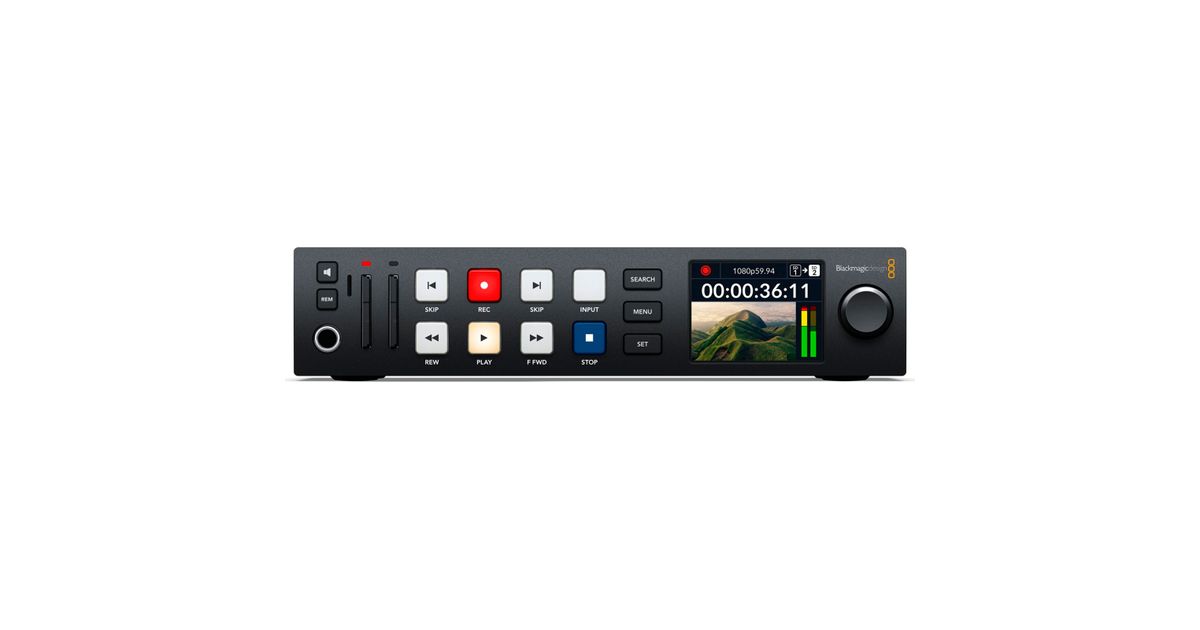

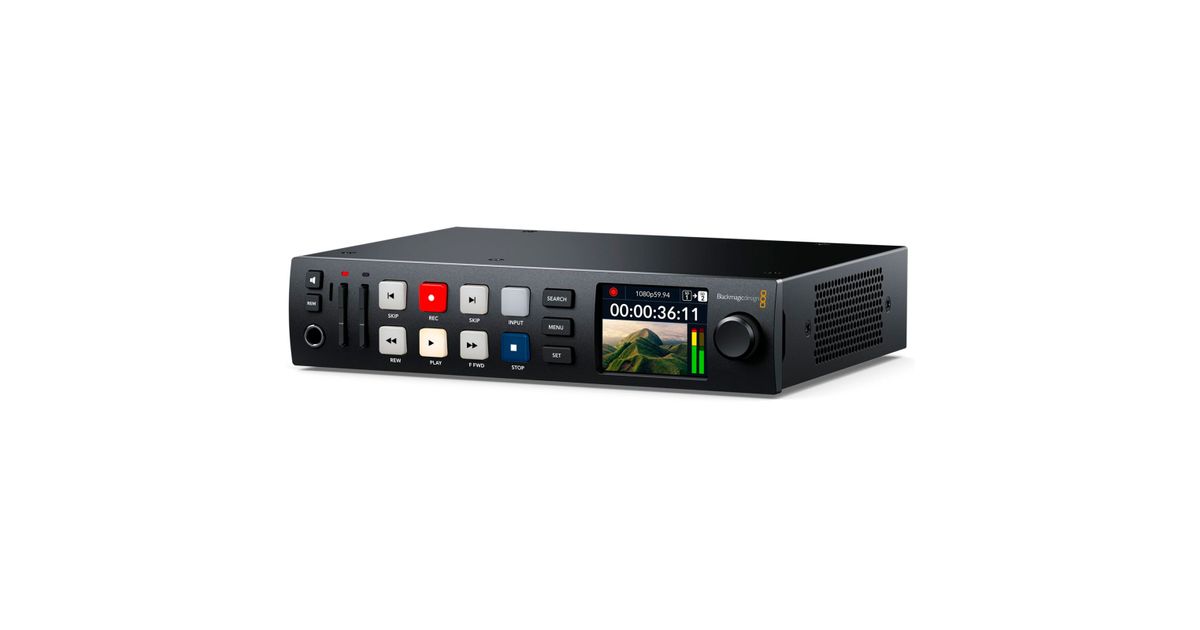

The larger HyperDeck Studio HD Plus offers all the features of the mini model, and the extra space is used for more controls and connections. It can record and playback ProRes up to Ultra HD 30 fps via 6G-SDI, offers an SDI loop-through output, and supports HDR. Moreover, the two 6G-SDI outputs can output fill and key signals up to 1080p/60. There is an HDMI input as well as a 3D SDI monitoring output with overlays. A button press on the front panel sends the command via RS-422 through the remote output. The DC power jack is now an XLR connector. The expanded front panel features higher quality transport buttons, a headphone jack, and a built-in speaker.

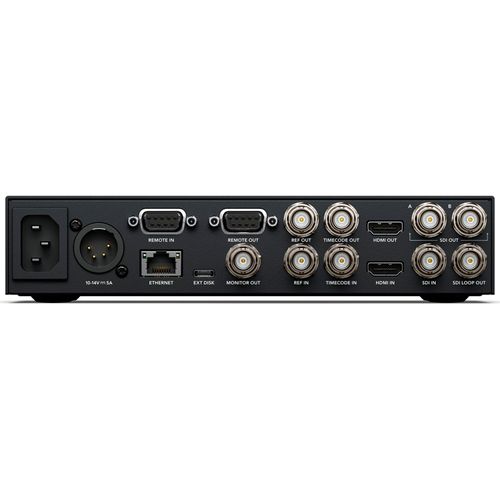

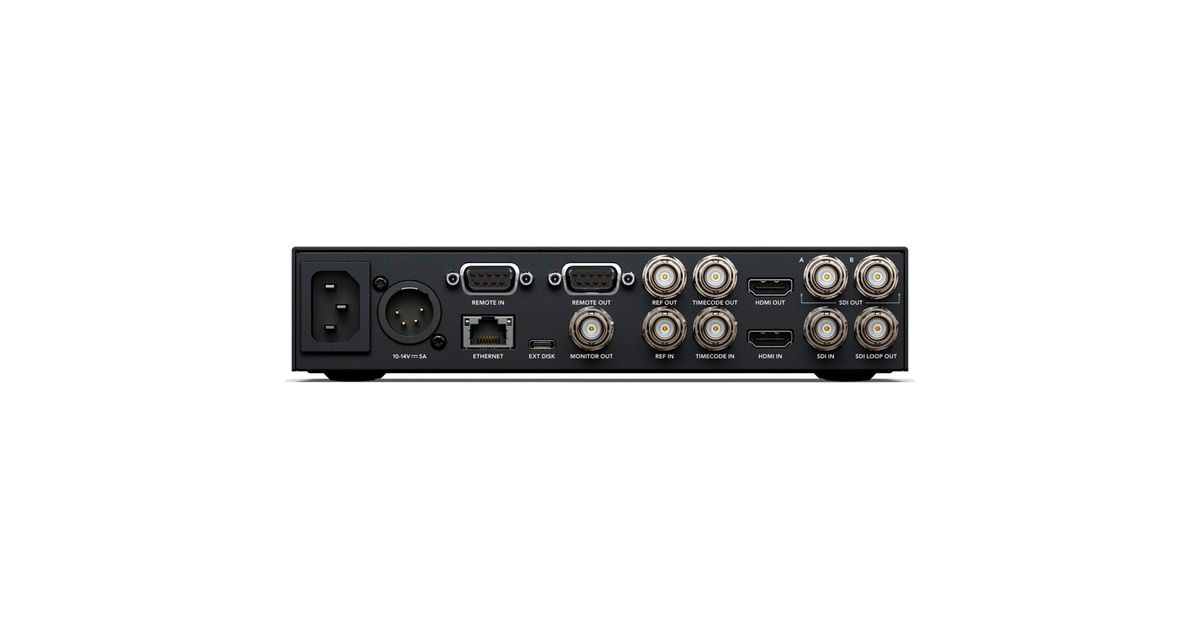

Connectivity

SDI video inputs: 1x
SDI video outputs: 2x
SDI monitor outputs: 1x
SDI rates: 270 Mbit; 1.5 G; 3 G; 6 G
HDMI 2.0 video inputs: 1x
HDMI 2.0 video outputs: 1x
Built-in speaker: 1 mono
Audio output: 1x 6.35 mm headphone jack
Screen: 2.2 inch LCD
Time code connections: 1x BNC input, 1x BNC output
Reference connections: 1x BNC input, 1x BNC output For Tri-Sync or Black Burst
SDI audio inputs: 16x embedded audio channels
SDI audio outputs: 16 embedded audio channels
HDMI audio inputs: 8x embedded audio channels
HMDI audio outputs: 8 embedded audio channels
Remote control: 1 RS-422 input, 1 RS-422 output
Configuration of the recorder: Via the user interface or the Blackmagic HyperDeck Ethernet Protocol
Ethernet: 1 Gbit/s
Computer interface: 1x USB-C 3.0 (up to 5Gb/s) for recording to external hard drives, webcam output, software configuration and updates

Standards

SD video standards: 525i/59.94 NTSC; 625i/50 PAL
- HD video standards:
- 720p/50; 720p/59.94; 720p/60
- 1080i/50; 1080i/59.94; 1080i/60
- 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60
- 1080PsF/23.98; 1080PsF/24; 1080PsF/25; 1080PsF/29.97; 1080PsF/30
2K DCI video standards: 2Kp/23.98 DCI; 2Kp/24 DCI; 2Kp/25 DCI; 2Kp/29.97 DCI; 2Kp/30 DCI
Ultra HD video standards:
- 2160p/23.98; 2160p/24; 2160p/25; 2160p/29.97; 2160p/30
- 4K DCI Video Standards: 4Kp/23.98 DCI; 4Kp/24 DCI; 4Kp/25 DCI; 4Kp/29.97 DCI; 4Kp/30 DCI
SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084 and SMPTE 2108-1
Supported SDI metadata: HD RP188 and Closed Captioning CEA-708. HDR metadata supported via SDI
Supported HDMI formats:
- 525i/59.94 NTSC; 625i/50 PAL,
- 720p/50; 720p/59.94; 720p/60,
- 1080i/50; 1080i/59.94; 1080i/60,
- 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60,
- 2Kp/23.98 DCI; 2Kp/24 DCI; 2Kp/25 DCI; 2Kp/29.97 DCI; 2Kp/30 DCI,
- 2160p/23.98; 2160p/24; 2160p/25; 2160p/29.97, 2160p/30,
- 4Kp/23.98 DCI; 4Kp/24 DCI; 4Kp/25 DCI; 4Kp/29.97 DCI; 4Kp/30 DCI
Audio sampling: TV standard sampling rate of 48 kHz and 24 bit
Video sampling frequency: 4:2:2 YUV
Color accuracy: 10 Bit
Color spaces: Rec. 601, Rec. 709, Rec. 2020. 33-point 3D LUTs can be applied to SDI monitor output
HDR support: Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multirate support: Automatic detection of SD, HD and 6G-SDI.
Copy Protection: Copy protected HDMI sources cannot be recorded via the HDMI input. Always check the copyright before recording or distributing content.

Media

Media:
- 2 SD card slots
- 1 USB-C 3.0 expansion port
- For external recording in SD, HD, 2K DCI, Ultra HD and 4K DCI
Media type: UHS-I and UHS-II SD cards
Storage media format: formats media in ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Supported codecs

ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime in all formats up to 2160p/30 Playback only in ProRes 4444 QuickTime up to 1080p/60; automatic distribution of fill-and-key signals via SDI outputs A and B DNxHD 220x, DNxHD 220x MFX, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF in 720p and 1080p HD formats up to 60 fps DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF in 2K DCI and 2160p formats up to 30 fps H. 264 SDI 4:2:2 10 bit, H.264 High 4:2:0 8 bit, H.264 Medium 4:2:0 8 bit,H.264 Low 4:2:0 8 bit in all formats up to 1080p/60

Control

Integrated control panel: 13 buttons, search slider and 2.2-inch color display for transport and device control
External control: RS-422 deck control, SDI start/stop, timecode run. With Blackmagic HyperDeck Ethernet Protocol Supports remote file uploads via FTP

Utility software

Included software:
- Blackmagic OS
- Blackmagic-HyperDeck-Setup
- Product software upgrades are loaded via USB port at startup or via Blackmagic HyperDeck Setup

Screens

Built-in 2.2-inch LCD for monitoring video, audio, timecode, and menu settings
LED indicators above the SD card slots

Energy Supply
- Energy Supply:
- Mains
Type
- Type:
- Recorder
General
- Material:
- Plastic
- Colour:
- Black
- Width (cm):
- 21,0
- Height (cm):
- 4,42
- Depth (cm):
- 17,7
- Weight (g):
- 1150
