Blackmagic Ultrastudio Mini 4K

Tootja: Blackmagic Design Tootekood: 11270431 EAN: 09338716006087 MPN: BM-BDLKULSDMINI4K

Toote andmed

Üldandmed
Tootja	Blackmagic Design
Tootekood	11270431
EAN	09338716006087
Tootja kood	BM-BDLKULSDMINI4K
Kategooria	Foto - ja filmistuudio tooted

Toote kirjeldus

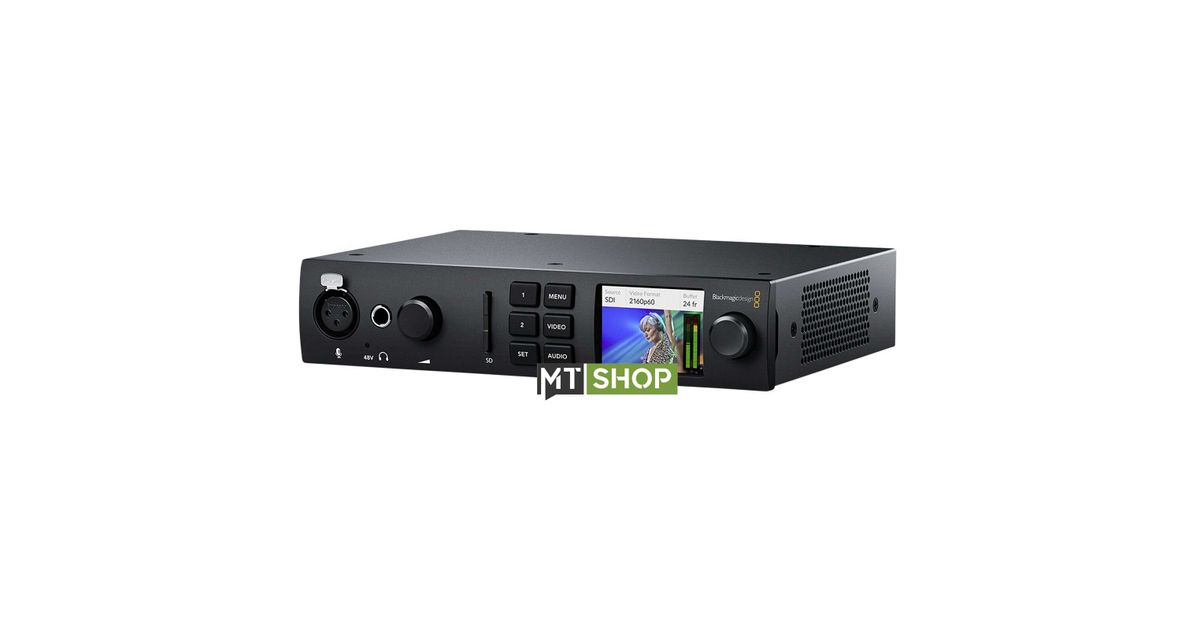

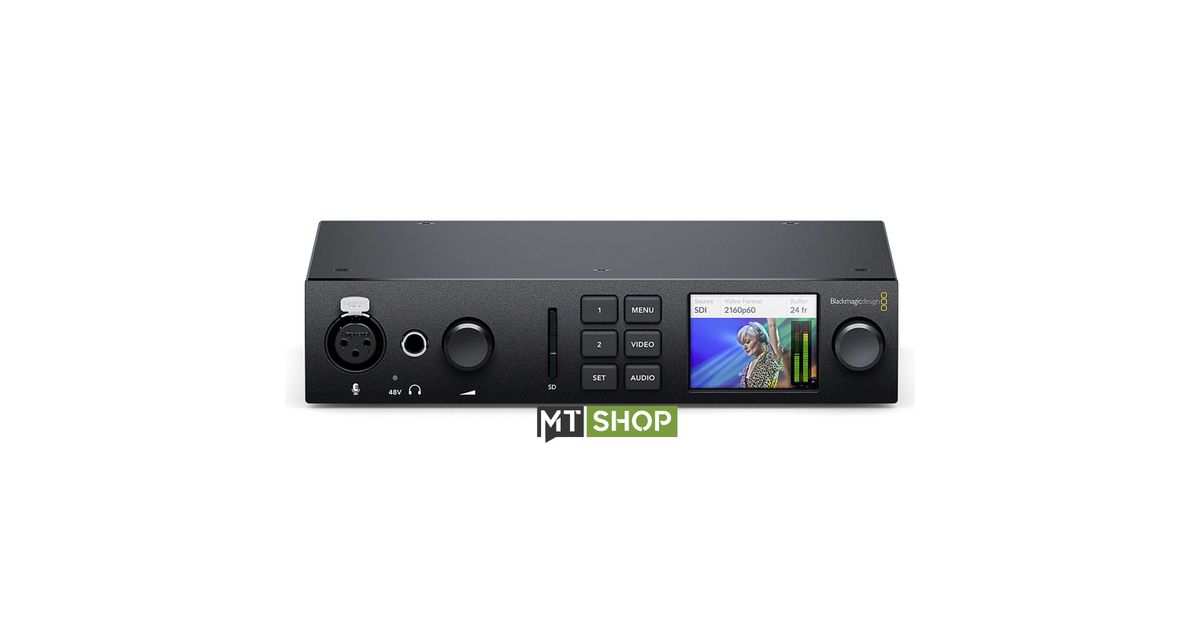

The UltraStudio 4K Mini model is a portable Thunderbolt 3 capture and playback solution packed with the current broadcast technology, including 12G‑SDI, HDMI 2.0 and analog connections. You get broadcast quality 8, 10 and 12‑bit high dynamic range capture in all formats up to 4K DCI at 60p. The front panel features push button controls, an LCD for monitoring signal and setup, an XLR microphone input and a 1/4 inch headphone jack. UltraStudio 4K Mini features USB for connecting a keyboard and mouse, plus it will trickle charge your laptop computer when connected to the Thunderbolt 3 port.

There’s even a built in SD card reader allowing instant access to your camera media cards!

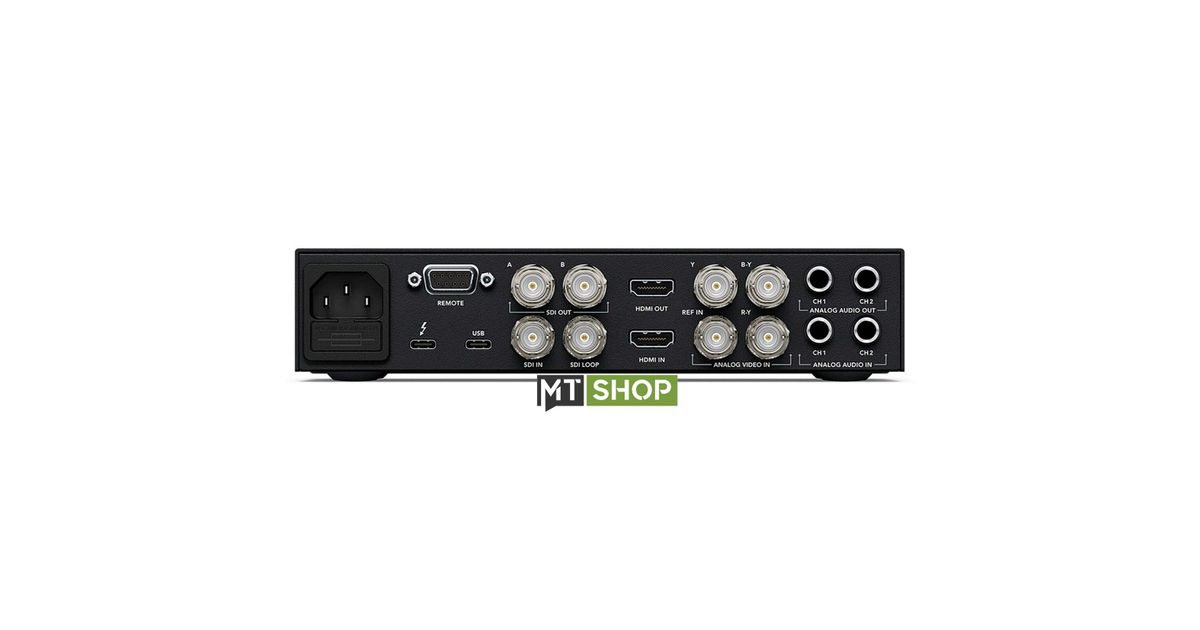

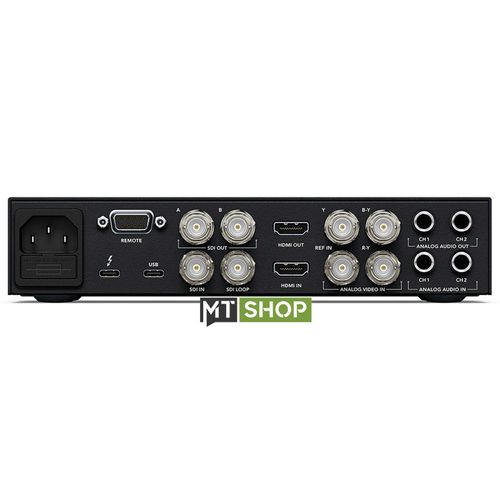

Connections:

SDI Video Inputs: 1
SDI Video Outputs: 2 x program out, 1 x loop out.
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
Analog Video Inputs: Component YUV or Composite NTSC/PAL. Component is switchable between SD and HD.
Analog Audio Inputs: 2 channels of professional balanced analog audio with 1/4 inch Jack connectors.
Analog Audio Outputs: 2 channels of professional balanced analog audio with 1/4 inch Jack connectors.
SDI Audio Inputs:16 Channels embedded in SD/HD/2K/UHD/4K.
SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/UHD/4K.
HDMI 2.0b Video Inputs: 1
HDMI 2.0b Video Outputs: 1
HDMI Audio Inputs: 8 Channels embedded in SD/HD/UHD/4K.
HDMI Audio Outputs: 8 Channels embedded in SD/HD/UHD/4K.
Mic Input: 1 x XLR microphone input. 48V Phantom Power switchable via software control.
Sync Input: Tri-Sync or Black Burst.
Device Control: Sony™ compatible RS-422 deck control port. Serial ports TxRx direction reversible under software control.
USB: 1 x USB-C 3.1 Gen 1 (up to 5 Gb/s).
SD Card Reader: UHS-I and UHS-II compatible.
Computer Interface: Thunderbolt™ 3 (Mac OS, Windows and Linux) with 45W host charging capability.

Type
- Type:
- Video IO Box
General
- Colour:
- Black
- Width (cm):
- 21,0
- Height (cm):
- 4,6
- Depth (cm):
- 17,7
- Weight (g):
- 1200
