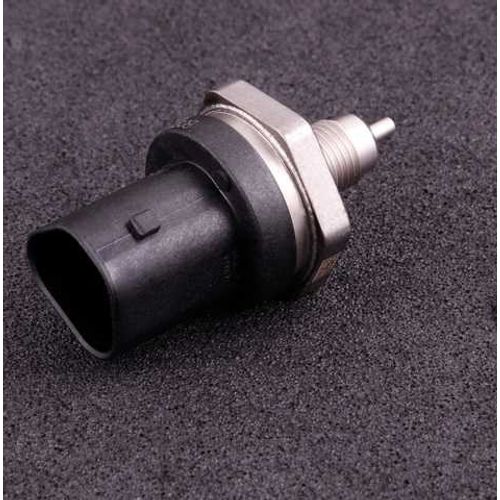

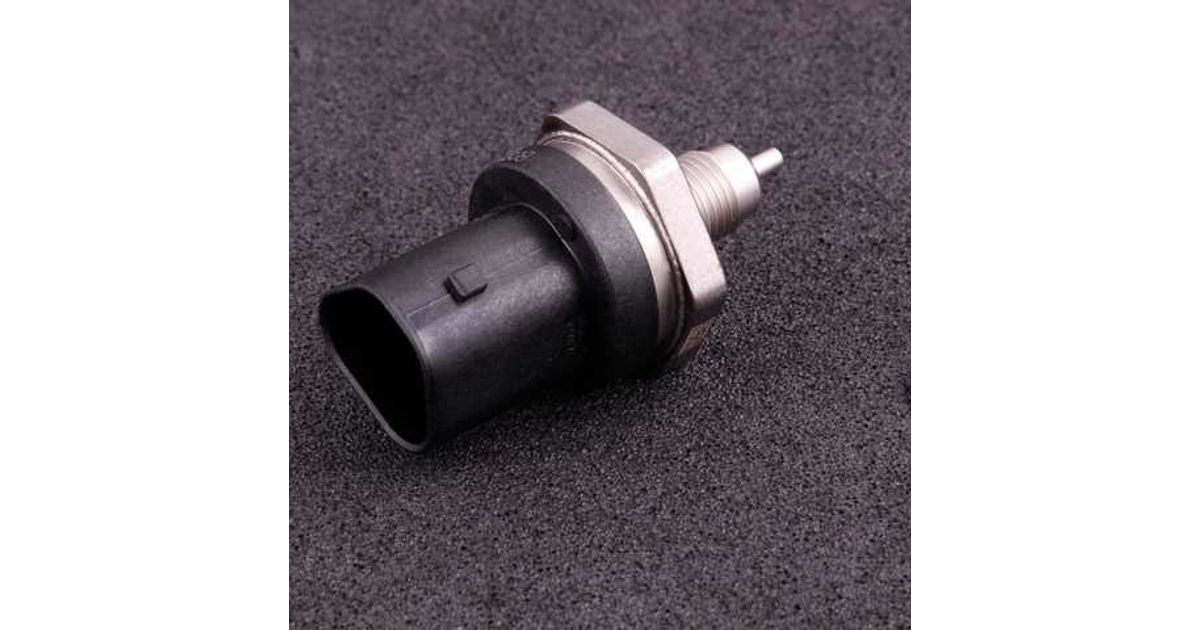

Bosch liquid pressure and temperature sensor (10bar / 140 deg C)
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Bosch |
| Tootekood | 9812684852 |
| EAN | 04047025095082 |
| Tootja kood | B-0261230340 |
Toote kirjeldus

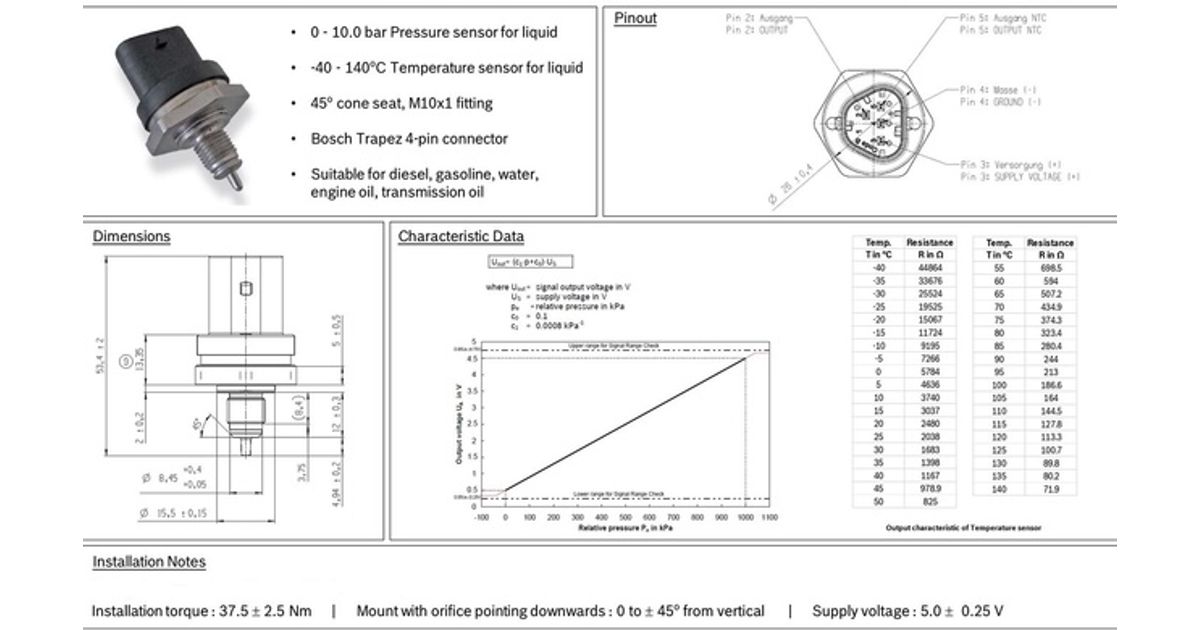

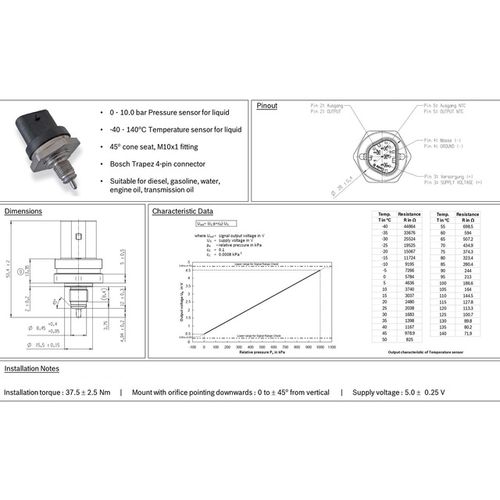

Bosch motorsport liquid pressure and temperature sensor
Thread: M10x1.0
Bosch part no: 0261230340
Alternatively Bosch no: 0261230482
pin2: Pressure signal out (0.5V = 0bar, 4.5V = 10bar)
pin3: +5V sensor supply
pin4: Sensor GND
pin5: Temperature signal out (0.5V = -40 deg C, 4.5V = 140 deg C)
Area of application:
Diesel, Petrol, Ethanol, Water, Engine oil, Transmission oil
(Note that the sensor can have a shorter life with Ethanol)
----------------
