CB PNI ESCORT HP 8000L ASQ raadiojaam + CB PNI S75 antenn koos magnetiga
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318240 |
| EAN | 05949066517853 |
| Tootja kood | PNI-PACK71 |
Toote kirjeldus
| ASQ AdjustableAn innovation in the CB segment, adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, a function that allows to eliminate up to 100% of the interference, background noise and jamming in the CB band. |
ASQ button on microphoneFor added steering comfort, PNI has set the automatic squelch (ASQ) on / off button on the microphone. Besides this button we find on the microphone and up / down buttons for changing channels, so you will not have to take your eyes off the road to operate these main functions. |
|
| Small sizeYou can use the product in any car, as it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, board, between chairs, without disturbing or disturbing. |
Key lock switchCB PNI Escort radio station HP 8000L has a switch on the front panel that allows selecting the emergency channel (19), normal operating mode (CH) and activating the key lock function (L) , a useful function in situations when touch avoidance is desired. accidental station keys. |
|

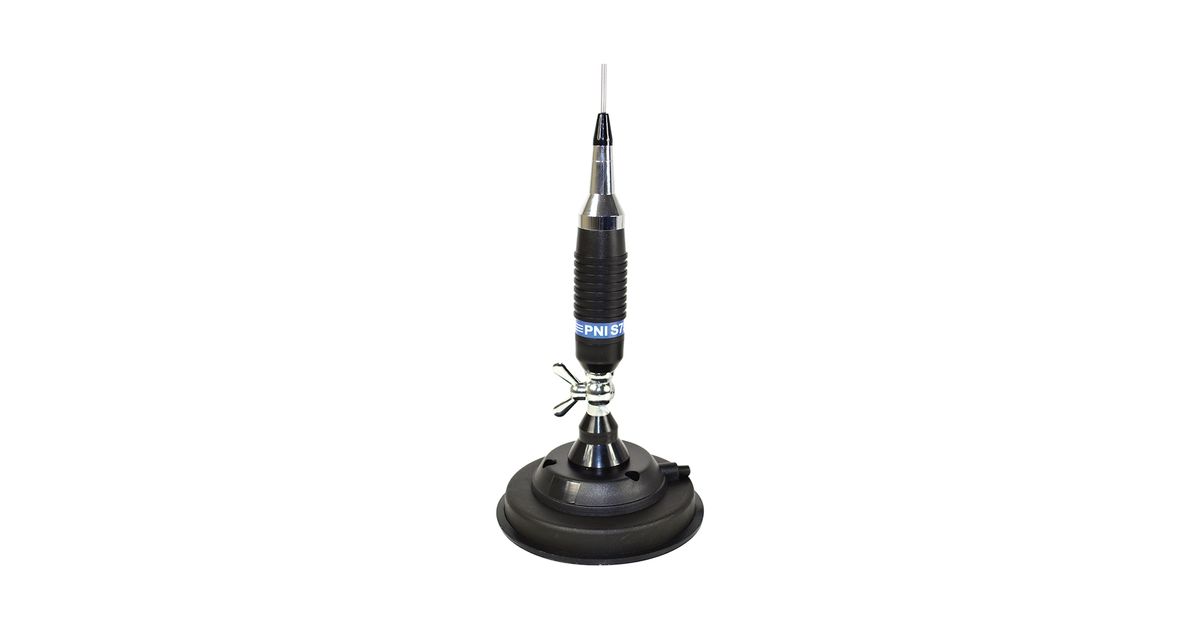

| High performance CB antennaThe performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <= 1.2: 1, maximum applied power 250 W, impedance 50 Ohms, stainless steel etc. |
Communication distanceCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of 10 km is reached under ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthAntenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. The antenna in this kit has a length of 76 cm (magnetic base included). |
Magnetic baseThe magnetic base of this package is provided with a cable of 4 m, long enough to place the antenna on the dome, and a diameter of 125 mm. The powerful magnet gives the antenna stability even at very high speeds. |
|
| Adjustable angleThis antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passages, garages or low height car parks. Apart from these situations, an inclination of more than 30 degrees is not recommended as it may affect the antenna performance. |
| Product identification | |
| Product code | PNI-PACK71 |
| General features of the radio station | |
| Model | Furniture |
| Broadband type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | 6 pines |
| Audio signal distortion | less than 8% @ 1 KHz |
| Emission power | 4 W |
| Modulation | FM: 3KHz ± 0.2KHz, AM: 85-90% |
| Mounting 1 DIN | Yes |
| feeding | 12 V |
| Consumption | 2A |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| EEPROM memory | Yes |
| Special features of the radio station | |
| ASQ (automatic squelch) | Yes |
| Adjustable ASQ | Yes |
| SQ - Squelch | Yes |
| Lock the keyboard | Yes |
| Emergency channel button 9/19 | Yes |
| Digital Automatic Squelch (ASQ) | Yes |
| Operating temperature | -26 C - +60 C |
| Additional speaker connection | Yes |
| Features radio antenna | |
| Working frequency | 26 - 28 Mhz |
| Maximum applied power | 250 W |
| Minimum SWR in the center of the band | less than 1.2: 1 |
| Antenna length | 76 cm with base |
| Working distance | 10 km |
| impedance | 50 Ohms |
| Material | Stainless steel |
| Tip connector | PL259 |
| Magnetic base included | Yes |
| Magnetic base diameter | 125 mm |
| Cable length | 4m |
| Polarization | vertical |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
| PL259 plug | Yes |
| RG58 cable | Yes |
| Lighter plug | Yes |
| Microphone holder | Yes |
| Station support | Yes |
| Microphone | Yes |
