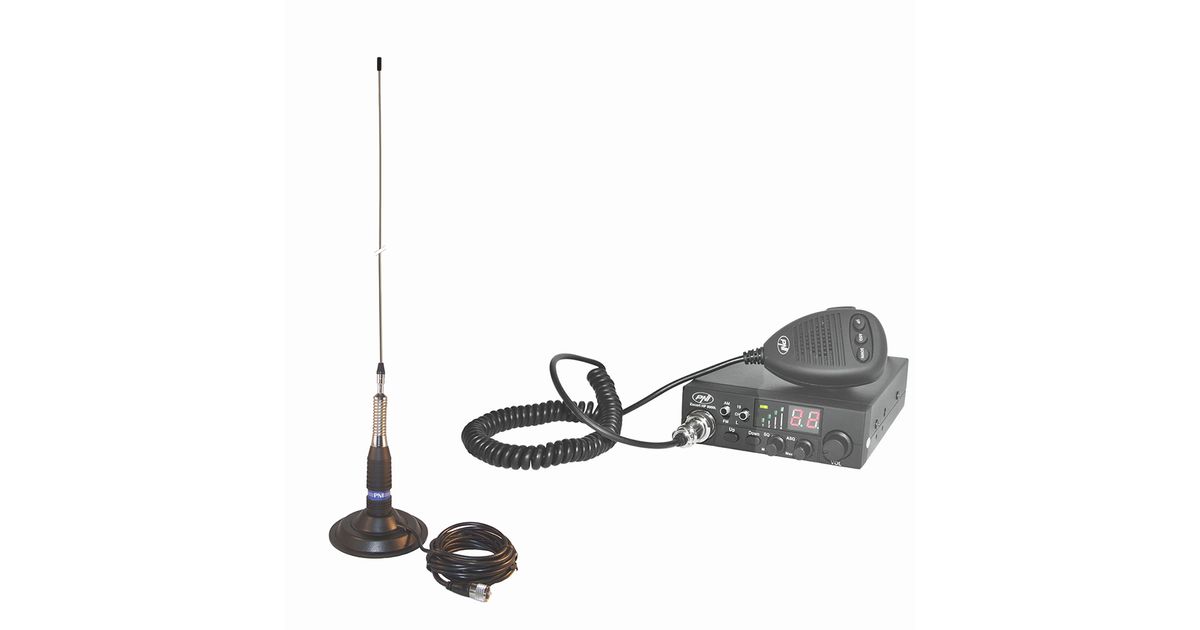

CB PNI ESCORT HP 8000L ASQ raadiojaama komplekt + CB PNI ML160 magnetiga antenn
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318104 |
| EAN | 05949066516887 |
| Tootja kood | PNI-PACK70 |
Toote kirjeldus
| ASQ AdjustableAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, a function that allows to eliminate up to 100% of interference, background noise and jamming in the CB band. |
ASQ button on microphoneFor added driving comfort, PNI has set the automatic squelch on / off button (ASQ) on the microphone. Besides this button we find on the microphone and up / down buttons for changing channels, so you will not have to take your eyes off the road to operate these main functions. |
|
| Small sizeYou can use the product in any car, as it is one of the smallest CB stations on the market. Robust and with a pleasant design, it can be placed in any location: armrest, board, between chairs, without disturbing or disturbing. |
Communication distanceCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 14 km is reached under ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthAntenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the communication distance / range. In this case 145 cm. |
Magnetic baseThe magnetic base of the package is provided with a cable of 4 m, sufficient for placing the antenna on the dome, has a diameter of 145 mm and a strong magnet that offers the antenna stability even at high speeds. |
|
| Full packageThis product offers you everything you need to go on the road: microphone station, antenna, magnetic base and calibration board. All you have to do is mount them on the car and make a calibration to use them at maximum performance. |
| Product identification | |
| Product code | PNI-PACK70 |
| General features of the radio station | |
| Model | Furniture |
| Broadband type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | 6 pines |
| Audio signal distortion | less than 8% @ 1 KHz |
| Emission power | 4 W |
| Modulation | FM: 3KHz ± 0.2KHz, AM: 85-90% |
| Mounting 1 DIN | Yes |
| feeding | 12 V |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| Special features of the radio station | |
| Adjustable ASQ | Yes |
| Lock the keyboard | Yes |
| Emergency channel button 9/19 | Yes |
| Digital Automatic Squelch (ASQ) | Yes |
| Operating temperature | -26 C - +60 C |
| Features radio antenna | |
| Working frequency | 26 - 30 MHz |
| Number of channels | 90 |
| Maximum applied power | 600 W |
| Minimum SWR in the center of the band | less than 1.2: 1 |
| Antenna length | 145cm |
| impedance | 50 Ohms |
| Material | Stainless steel |
| Tip connector | PL259 |
| Bore diameter | 16 mm |
| Magnetic base included | Yes |
| Magnetic base diameter | 15x15x6 cm |
