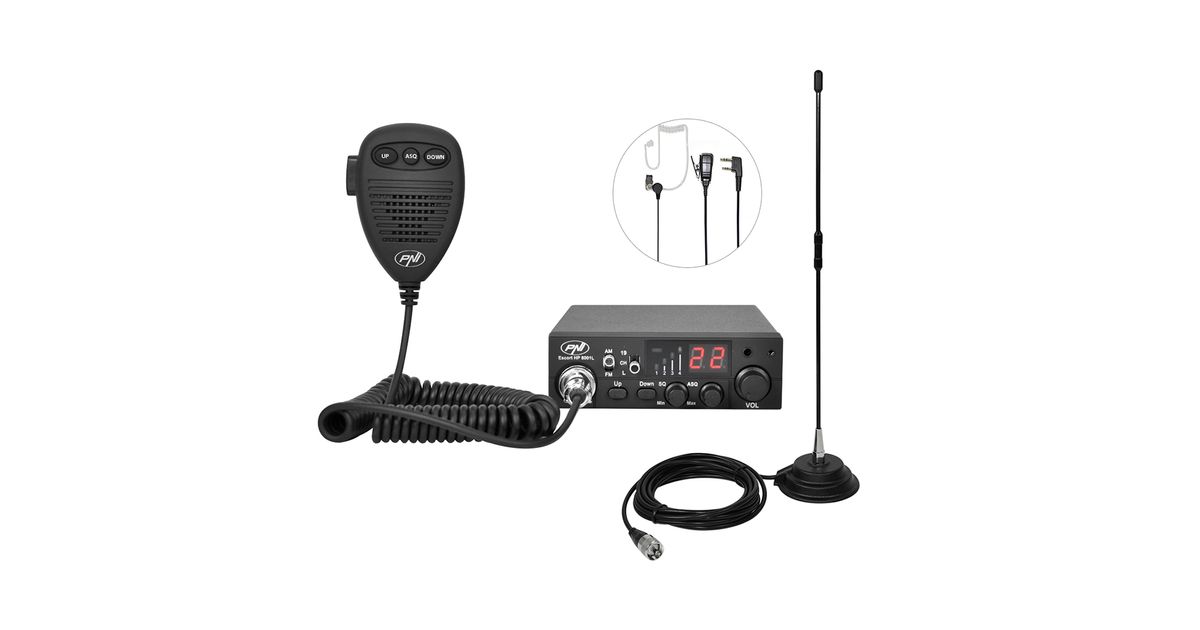

CB PNI ESCORT HP 8001L ASQ 4W 12V raadiojaamapakett, 40 kanalit + CB PNI Extra 40 antenn koos magnetiga, pikkus 45 cm, 30W
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318242 |
| EAN | 05949066517754 |
| Tootja kood | PNI-PACK73 |
Toote kirjeldus
| Key lock switchCB PNI Escort radio station HP 8001L has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L) , a useful function in situations when you want to avoid touch accidental station keys. |
Adjustable ASQAn innovation in the CB segment, adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, a function that allows to eliminate up to 100% of interference, background noise and jamming in the CB band. |
|
| 6-pin microphoneThe HP 8001L ASQ radio station has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button. |
Headphone jack with microphoneThe PNI HP 8001L radio station has plugs on the front panel for connecting a pair of headphones with microphone, included in the package. |
|
| Discreet and efficientThe PNI Extra 40 antenna is the smallest CB antenna (it has a height of only 44 cm-base included) that can be mounted both on cars, as well as on cars or minibuses. Its small size makes it almost unsuitable, easily confused with the radio antenna. The average reception distance is 7 km. |
| Product identification | |
| Product code | PNI-PACK73 |
| General features of the radio station | |
| Model | Furniture |
| Broadband type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | 6 pines |
| Audio signal distortion | less than 5% @ 1 KHz |
| Emission power | 4 W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| feeding | 12 V |
| Dimensions / Weight | 440 X 180 X 36 mm / 1700 g |
| Special features of the radio station | |
| ASQ (automatic squelch) | Yes |
| Adjustable ASQ | Yes |
| Lock the keyboard | Yes |
| Emergency channel button 9/19 | Yes |
| Operating temperature | -26 C - +60 C |
| Features radio antenna | |
| Working frequency | 26 - 30 MHz |
| Maximum applied power | 50 W |
| Minimum SWR in the center of the band | 1.0 |
| Antenna length | 45 cm (base included) |
| Working distance | 7 km |
| impedance | 50 Ohms |
| Material | Fiber glass |
| Tip connector | PL259 |
| Magnetic base included | Yes |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
| PL259 plug | Yes |
| RG58 cable | Yes, 4 m |
| Lighter plug | Yes |
| Microphone holder | Yes |
| Station support | Yes |
| Headphones | Yes, cable 150 cm |
