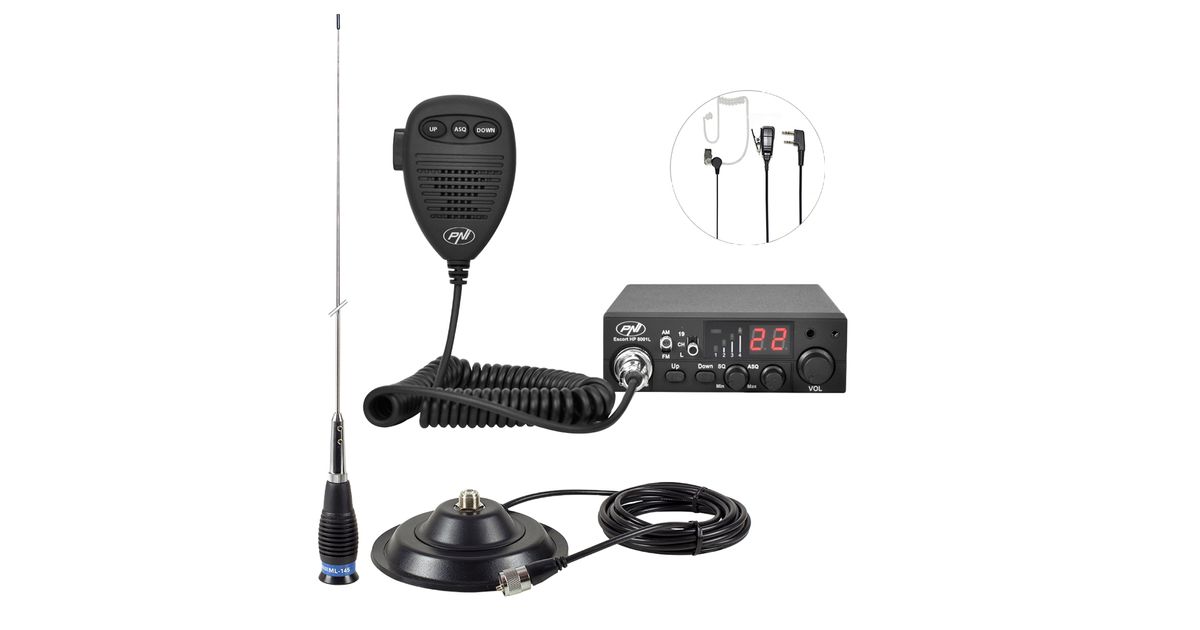

CB PNI ESCORT HP 8001L ASQ raadiojaam + CB PNI ML145 antenn magnetiga 145 / PL
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292317696 |
| EAN | 05949066515545 |
| Tootja kood | PNI-PACK57 |
Toote kirjeldus
| Key lock switchThe CB PNI Escort CB 8001L has a switch on the front panel that allows you to select the Emergency Channel (19), Normal Mode (CH), and Activate Key Lock (L) , a useful function in situations where you want to avoid touching accidental keys of the station. |
ASQ adjustableAn innovation in the CB segment, the adjustable squelch (ASQ), offers the ultimate in comfort even for the most demanding CB CB radio station users. If until now we were accustomed to activating / deactivating the ASQ, now the PNI brings its adjustment function, a feature that allows up to 100% elimination of interference, background noise and CB bandwidth. |
|
| 6-pin microphoneThe HP 8001L ASQ radio has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for selecting channels, PTT button and ASQ activation button. |
40 channelsThe HP 8001L PNI radio station meets the latest European CB standards. The station has a switch to change the modulation type (AM or FM) which will allow you to select the operating mode. |
|
| Headset jack with microphoneThe HP 8001L PNI radio station has sockets on the front panel to connect a pair of microphone headphones included in the package. |
Compatible with PNI Bluetooth accessoriesThe PNI Escort HP 8001L is compatible with the PNI BT-Dongle 8001 Bluetooth Adapter, the PNI BT-MIKE 8500 Bluetooth Headset and the PNI BT-MIKE 7500 Bluetooth Headset.
| |
| CB PNI ML145 antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.0, maximum applied short time 400 W, impedance 50 Ohms, stainless steel etc. |
Communication distanceThe distance of communication is another decisive factor in the acquisition and use of a CB antenna. Thus, the maximum communication distance of 15 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, station with maximum legal power of 4W and with standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
|
| Length of the antennaThe length of the antenna is another very important factor that can influence the communication distance in traffic. The longer the antenna is, the longer the range is. The CB PNI ML145 antenna has a length of 145 cm. |
Magnetic baseThe PNI 145 / PL magnetic base has a diameter of 145 mm, a size that gives the antenna stability even at high speeds, with a nice design. |
|
| Threaded fastenerThe PNI145 / PL is compatible with antennas that have an internal threaded fastening system. |
Cable lengthCable length is an important factor in choosing a magnetic base. The base of the PNI 145 / PL has a quality cable with a length of 4 m, which allows the antenna to be placed on the car's dome without any problems, and the cable set so that it does not degrade the passengers. |
|
| Powerful magnetThe PNI145 / PL has a powerful magnet for its size, which gives it a very good grip on the car dome, and resilience and stability even at high speeds. |
Plug PL259The PNI 145 / PL magnetic base is equipped with RG58 coaxial cable and PL259 socket for direct connection to the station. |
|
| Rubber support includedIn order to protect the car's dome from scratches, but without affecting the optimal performance of the antenna, the 145 / PL magnetic base is provided with a thin and durable rubber support that also protects the water connections and joints inside it. |
| General Radio Station Features | |
| Model | Furniture |
| Broadcasting type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | 6 pins |
| Audio signal distortion | less than 5% @ 1 KHz |
| Emission power | 4 W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| feeding | 12 V |
| Consumption | 2A |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| Special Features Radio Station | |
| ASQ (squelch automaton) | Yes |
| Keypad lock | Yes |
| Emergency channel button 9/19 | Yes |
| Radio antenna features | |
| Frequency of work | 26 - 28 Mhz |
| Number of channels | 90 |
| Maximum power applied | 400 W |
| Minimum SWR at the center of the band | 1.0 |
| Length of the antenna | 145 cm |
| Working distance | 15 km |
| impedance | 50 Ohm |
| Material | Stainless steel |
| Connector type | PL259 |
| Diameter hole | 16 mm |
| Magnetic base included | Yes |
| The package contains | |
| CB radio station | Yes |
| CB Radio Antenna | Yes |
| Magnetic base | Yes |
| Plug PL259 | Yes |
| RG58 cable | Yes, 4 m |
| Fixed gripping mount | Yes |
