CB PNI ESCORT HP 8001L ASQ raadiojaamakomplekt + CB PNI S75 antenn kaabli ja fikseeritud kinnitusega
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318244 |
| EAN | 05949066517846 |
| Tootja kood | PNI-PACK75 |
Toote kirjeldus
| Key lock switchCB PNI Escort radio station HP 8001L has a switch on the front panel that allows you to select the emergency channel (19), the normal operating mode (CH) and activate the key lock function (L) , a useful function in situations when you want to avoid touch accidental station keys. |
Adjustable ASQAn innovation in the CB segment, adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, a function that allows to eliminate up to 100% of interference, background noise and jamming in the CB band. |
|

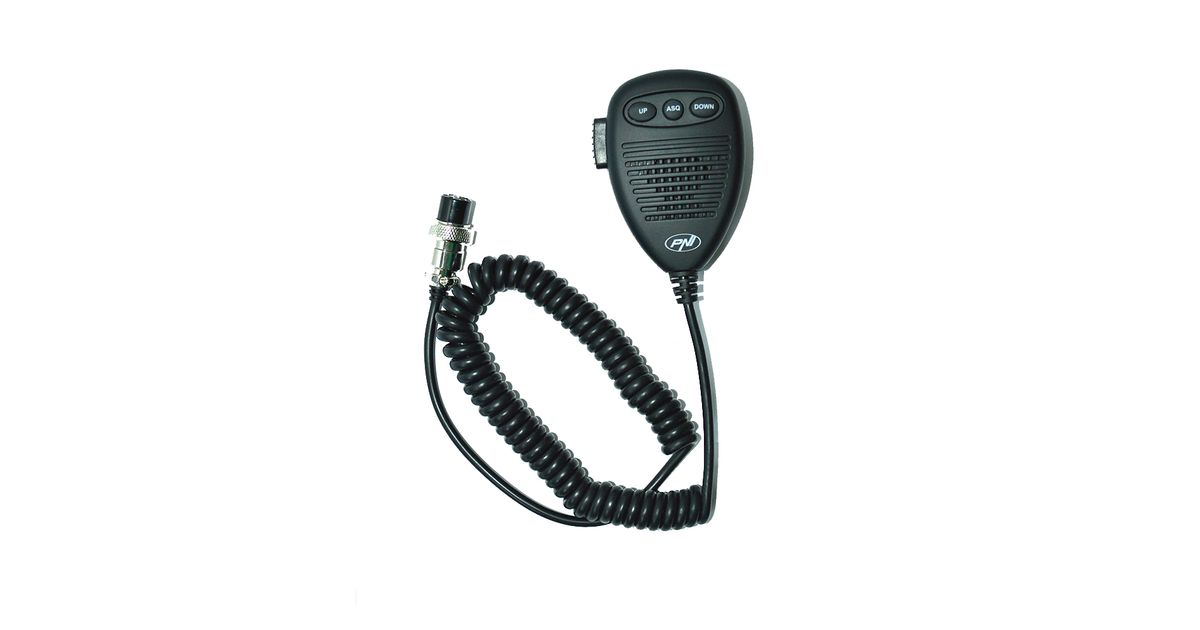

| 6-pin microphoneThe HP 8001L ASQ radio station has a standard 6-pin microphone jack on the front panel. The microphone included in the package has buttons for channel selection, PTT button and ASQ activation button. |
40 channelsThe HP 8001L PNI radio station complies with the latest European CB standards. The station has a switch for modulation type change (AM or FM) which will allow you to select the operating mode. |
|
| Headphone jack with microphoneThe PNI HP 8001L radio station has plugs on the front panel for connecting a pair of headphones with microphone, included in the package. |
Compatible with PNI Bluetooth accessoriesThe HP 8001L PNI Escort radio station is compatible with the BT-Dongle 8001 PNI Bluetooth adapter, the BT-MIKE 8500 PNI Bluetooth microphone and the BT-MIKE 7500 Bluetooth PNI headset.
| |
| High performance CB antennaThe performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <= 1.2: 1, maximum applied power 250 W, impedance 50 Ohms, stainless steel etc. |
Communication distanceCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of 10 km is reached under ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
|
| Antenna lengthAntenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range. The antenna in this kit has a length of 76 c. |
Fixed fastening accessories includedThe PNI Antenna S75 includes all the accessories necessary for mounting on the car: 4 m cable RG58, PL259 socket and mount for fixed mounting. | |
| Adjustable angleThis antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passages, garages or low height car parks. Apart from these situations, an inclination of more than 30 degrees is not recommended as it may affect the antenna performance. |
| Product identification | |
| Product code | PNI-PACK75 |
| General features of the radio station | |
| Model | Furniture |
| Broadband type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | 6 pines |
| Audio signal distortion | less than 5% @ 1 KHz |
| Emission power | 4 W |
| Modulation | FM: 1.8KHz ± 0.2KHz, AM: 85-95% |
| feeding | 12 V |
| Consumption | 2A |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| Special features of the radio station | |
| ASQ (automatic squelch) | Yes |
| Adjustable ASQ | Yes |
| Lock the keyboard | Yes |
| Emergency channel button 9/19 | Yes |
| Operating temperature | -26 C - +60 C |
| Features radio antenna | |
| Working frequency | 26 - 28 Mhz |
| Maximum applied power | 250 W |
| Minimum SWR in the center of the band | less than 1.2: 1 |
| Antenna length | Spike length: 54 cm |
| impedance | 50 Ohms |
| Material | Stainless steel |
| Tip connector | PL259 |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| PL259 plug | Yes |
| RG58 cable | Yes |
| Fixed mounting bracket | Yes |
| Lighter plug | Yes |
| Microphone holder | Yes |
| Station support | Yes |
| Headphones | Yes, cable 150 cm |
