Toote tegelik värvus võib erineda piltidel kujutatavast ning pildid on
illustratiivsed.

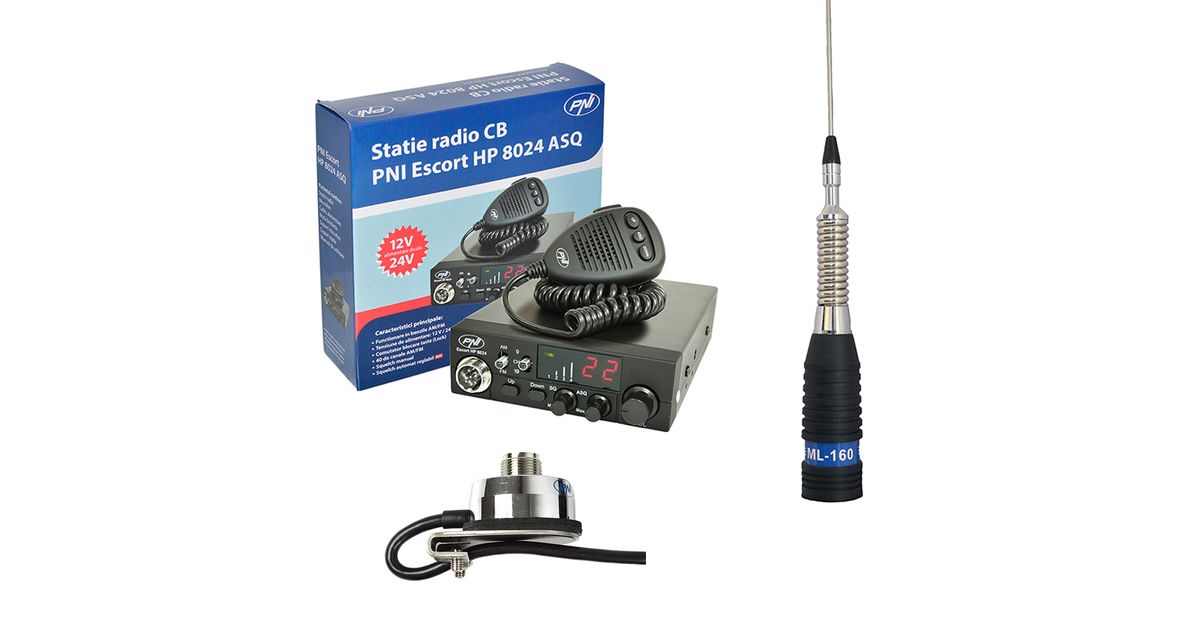

CB PNI ESCORT HP 8024 ASQ raadiojaam + CB PNI ML160 antenn koos T941 toega
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292317990 |
| EAN | 05949066515675 |
| Tootja kood | PNI-PACK55 |
Toote kirjeldus
| ASQ Adjustable and 12/24 V powerCB PNI Radio Station The HP 8024 Escort can be mounted on both 12V and 24V power trucks or trucks. An innovation in the CB segment, the adjustable squelch (ASQ), offers the ultimate in comfort even for the most demanding CB CB radio station users. If until now we were accustomed to activating / deactivating the ASQ, now PNI brings its adjustment function, which allows the removal of up to 100% of interference, background noise and CB bandwidth. |
Key lock switchCB PNI Escort CB 8024 has a switch on the front panel that allows you to select the Emergency Channel (19), Normal Mode (CH), and Activate Key Lock (L), a useful function in situations where you want to avoid touching accidental keys of the station. |
|
| Reduced dimensionsYou can use the product in any car because it is one of the smallest CB radio stations on the market. Robust and well-liked design, can be placed in any location: armrest, board, between chairs without uncomfortable or disturbing. |
performancesThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <1.1, Maximum applied power 600 W, impedance 50 Ohms, Stainless steel etc. |
|
| Communication distanceThe distance of communication is another decisive factor in the acquisition and use of a CB antenna. Thus the maximum communication distance of 15 km or more is reached in ideal working conditions: Calibrated antenna, open field without obstacles, station with maximum legal power of 4W and standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
Antenna supportThe antenna mounting bracket comes with a cable length of 5m, allowing you to mount the antenna on the car trunk and still get in touch with the CB radio station. Due to the robust grip with the hexagon bolts, there is no danger that the support and the antenna will break out and put you at risk. |
|
| Product Identification | |
| Product code | NIP-PACK55 |
| General Radio Station Features | |
| Model | Furniture |
| Broadcasting type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | 6 pins |
| Emission power | 4 W + |
| Modulation | FM: 3KHz ± 0.2KHz, AM: 85-90% |
| 1 DIN mounting | Yes |
| feeding | 12 -24 V |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| Special Features Radio Station | |
| ASQ (squelch automaton) | Yes |
| ASQ adjustable | Yes |
| SQ - Squelch | Yes |
| Keypad lock | Yes |
| Emergency channel button 9/19 | Yes |
| Radio antenna features | |
| Frequency of work | 25 - 30 MHz |
| Number of channels | 90 |
| Maximum power applied | 600 W |
| Minimum SWR at the center of the band | 1.0 |
| Length of the antenna | 145cm |
| Working distance | 15 km |
| impedance | 50 Ohm |
| Material | Stainless steel |
| Connector type | PL259 |
| Diameter hole | 16 mm |
| The package contains | |
| CB radio station | Yes |
| CB Radio Antenna | Yes |
| Cable antenna support | Yes |
