Toote tegelik värvus võib erineda piltidel kujutatavast ning pildid on
illustratiivsed.

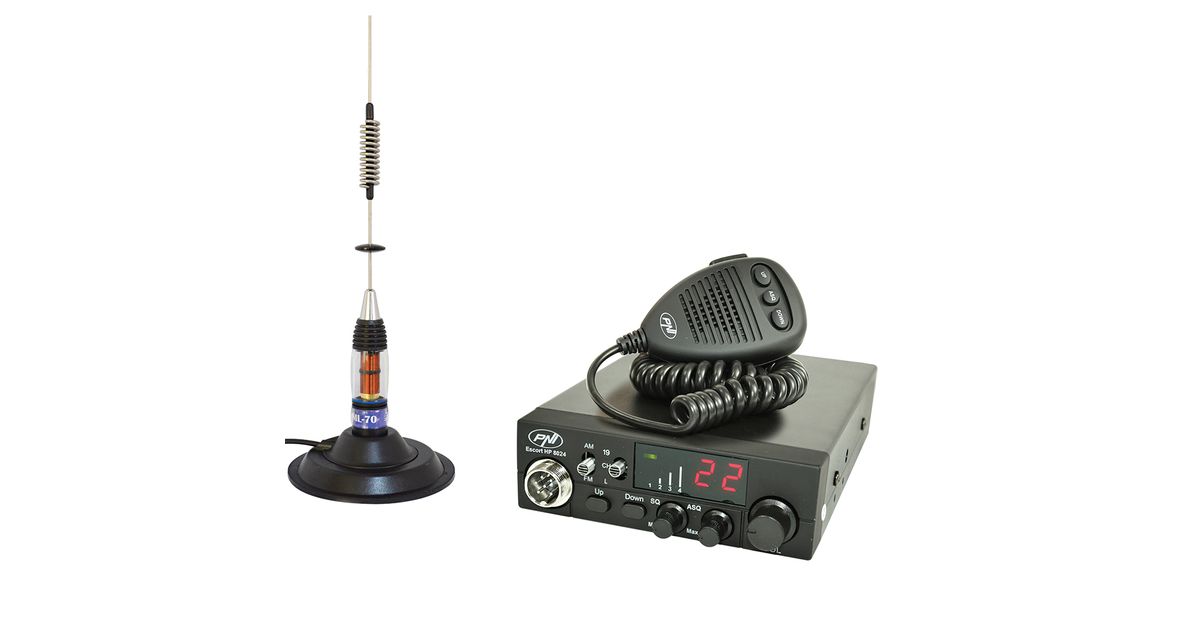

CB PNI ESCORT HP 8024 ASQ raadiojaamakomplekt, 12–24 V, 40 kanalit, 4W + CB PNI ML70 antenn koos magnetiga
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318246 |
| EAN | 05949066517983 |
| Tootja kood | PNI-PACK77 |
Toote kirjeldus
| 12V / 24V dual power supplyThe CB PNI Escort HP 8024 radio station can be mounted both on cars with 12V power supply, as well as on trucks or TIRs with 24V power supply. |
ASQ AdjustableAn innovation in the CB segment, the adjustable automatic squelch (ASQ), offers maximum comfort even for the most demanding users of CB car radio stations. If up until now we were used to activating / deactivating the ASQ, now PNI brings its adjustment function, which allows to eliminate up to 100% of interference, background noise and jamming in the CB band. |
|
| ASQ button on microphoneFor added steering comfort, PNI has set the automatic squelch (ASQ) on / off button on the microphone. In addition to this we find the up / down buttons for changing channels. |
Distance of communicationCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 9 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
|
| Magnetic baseThe PNI 145 / PL magnetic base in the package is provided with a 4 m cable, sufficient for placing the antenna on the dome, has a diameter of 145 mm and a strong magnet that offers the antenna stability even at high speeds. |
| Product identification | |
| Product code | PNI-PACK77 |
| General features of the radio station | |
| Model | Furniture |
| Broadband type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Microphone type | 6 pines |
| Audio signal distortion | less than 8% @ 1 KHz |
| Emission power | 4 W + |
| Modulation | FM: 3KHz ± 0.2KHz, AM: 85-90% |
| feeding | 12 -24 V |
| Dimensions / Weight | 115 x 36 x 152 mm / 0.8 kg |
| Special features of the radio station | |
| ASQ (automatic squelch) | Yes |
| Adjustable ASQ | Yes |
| Lock the keyboard | Yes |
| Emergency channel button 9/19 | Yes |
| Operating temperature | -26 C - +60 C |
| Features radio antenna | |
| Working frequency | 26 - 28 Mhz |
| Maximum applied power | 200 W |
| Minimum SWR in the center of the band | less than 1.2 |
| Antenna length | 70 cm (magnetic base included) |
| Working distance | 8 km |
| impedance | 50 Ohms |
| Material | Stainless steel |
| Tip connector | PL259 |
| Bore diameter | 16 mm |
| Cable length | 4m |
| I earn | 4 dB |
| The package contains | |
| CB radio station | Yes |
| CB radio antenna | Yes |
| Magnetic base | Yes |
| PL259 plug | Yes |
| RG58 cable | Yes, 4 m |
| Lighter plug | Yes |
| Microphone holder | Yes |
| Station support | Yes |
| Microphone | Yes |
