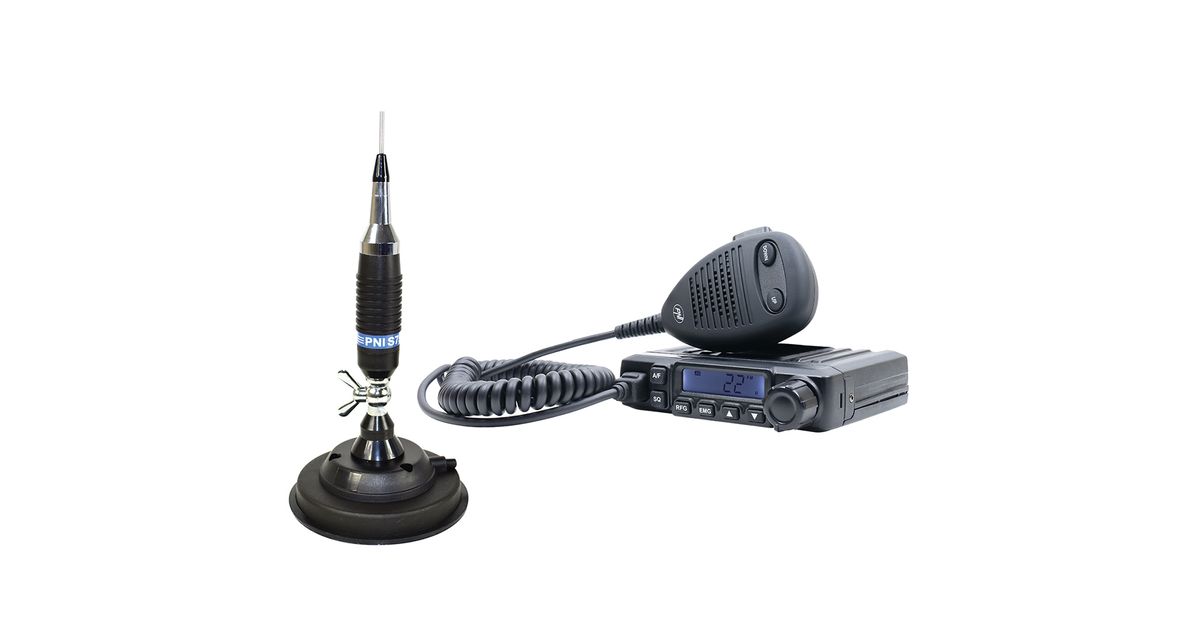

CB PNI eskortraadio pakett HP 6500 ASQ + CB PNI S75 antenn
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318088 |
| EAN | 05949066516702 |
| Tootja kood | PNI-PACK62 |
Toote kirjeldus
Reduced dimensionsIts small dimensions (only 110x120x25mm) allow the station to be located even in very narrow spaces, without having to resort to a real installation, such as a classic CB. |
|
| 4W transmission powerThe station complies with the Romanian legislation in force harmonized with the European norms, having the maximum legal power of 4 W. |
FM / AMCB PNI Escort The HP 6500 Escort allows FM radio communication, used in Romania, but also in the AM band, when traveling outside the country. In addition to the bandwidth type, the station also allows the selection of the frequency band, which is necessary for the station to be used in other countries in Europe. |
|
| Squelch double, adjustable and digital automaticallyThe PNI Escort HP 6500 is enhanced with a Digital Automatic Squelch (Digital Automatic Squelch). The double manual and automatic squelch mode provides 28 and 9 levels with the RF Gain function for a finer tuning of the reception. |
CB antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.2: 1, maximum applied power 250 W, impedance 50 Ohms, stainless steel etc. |
|
| Communication distanceThe distance of communication is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of 10 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, station with maximum legal power of 4W and with standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
Length of the antennaThe length of the antenna is another very important factor that can influence the communication distance in traffic. The longer the antenna is, the longer the range is. The antenna in this kit has a length of 76 cm (magnetic base included). |
|
| Adjustable angleThis antenna can be tilted with the butterfly screw with which it is provided to enter passages, garages or parking spaces of low height. In addition to these situations, a tilt of more than 30 degrees is not recommended as it may affect the performance of the antenna. |
| Product Identification | |
| Product code | PNI-PACK62 |
| General Radio Station Features | |
| Model | Furniture |
| Broadcasting type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Audio speaker power | 1 W |
| Sensitivity (20dB SINAD) | higher than 1 μV (AM / FM) |
| Emission power | 4 W |
| Modulation | 80 - 90% |
| feeding | 12 V |
| Consumption | 2A max |
| Dimensions / Weight | 110 x 120 x 28/385 g |
| Special Features Radio Station | |
| ASQ adjustable | Yes, 28 levels |
| SQ - Squelch | Yes |
| Scanning channels | Yes |
| RF Gain | Yes, 9 levels |
| Keypad lock | Yes |
| Emergency channel button 9/19 | Yes |
| Radio antenna features | |
| Frequency of work | 26 - 28 Mhz |
| Number of channels | 40 |
| Maximum power applied | 250 W |
| Minimum SWR at the center of the band | less than 1.2 |
| Length of the antenna | 76 cm with the base |
| Working distance | 10 km |
| impedance | 50 Ohm |
| Material | Stainless steel |
| Connector type | DV |
| Magnetic base included | Yes |
| Magnetic base diameter | 125 mm |
| Cable length | 4m |
| The package contains | |
| CB radio station | Yes |
| CB Radio Antenna | Yes |
| Magnetic base | Yes |
| Plug PL259 | Yes |
| RG58 cable | Yes, 4 m |
