Toote tegelik värvus võib erineda piltidel kujutatavast ning pildid on
illustratiivsed.

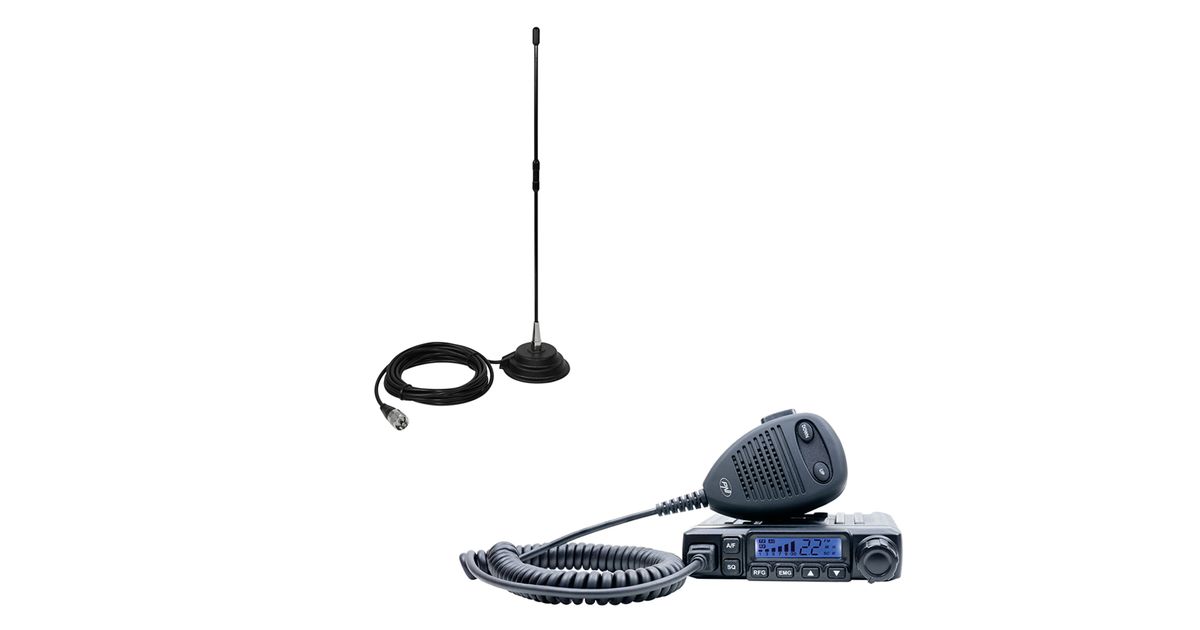

CB PNI saateraadio pakett HP 6500 ASQ + CB PNI Extra 40 antenn
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318095 |
| EAN | 05949066516788 |
| Tootja kood | PNI-PACK69 |
Toote kirjeldus
Small sizeIts small size (only 110x120x25mm) allows the location of the station even in very narrow spaces, without having to resort to a real installation, such as in the case of a classic CB. |
|
| 4W emission powerThe station complies with the legislation in force in Romania harmonized with the European norms, having the maximum legal power allowed by 4 W. |
FM / AMThe CB PNI Escort HP 6500 station allows communication in the FM band, used in Romania, but also in the AM band, when traveling abroad. Besides the type of band, the station also allows the selection of the band of frequency, setting necessary for the use of the station in other countries of Europe. |
|
| Squelch double, adjustable and automatic digitalPNI Escort HP 6500 is upgraded with a digital automatic noise reduction and interference system (Digital Automatic Squelch). The manual and automatic dual squelch mode offers 28 and 9-level adjustments along with the RF Gain function for finer reception tuning. |
Discreet and efficientThe PNI Extra 40 antenna is the smallest CB antenna (it has a height of only 44 cm-base included) that can be mounted both on cars, as well as on cars or minibuses. Its small size makes it almost unsuitable, easily confused with the radio antenna. The average reception distance is 7 km. |
|
| Easy installationThe PNI Extra 40 antenna is easy to install, by simply screwing the spike onto the magnet attached to the dome of the car. The antenna is pre-calibrated from the factory. |
High performance antennaThe PNI Extra 40 antenna has the characteristics of a large antenna: SWR 1.2: 1, impedance 50 Ohms, frequency 26.8 - 27.6 MHz. |
|
| Product Identification | |
| Product code | PNI-PACK69 |
| General Radio Station Features | |
| Model | Furniture |
| Broadcasting type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Audio speaker power | 1 W |
| Sensitivity (20dB SINAD) | higher than 1 μV (AM / FM) |
| Emission power | 4 W |
| Modulation | 80 - 90% |
| feeding | 12 V |
| Dimensions / Weight | 110 x 120 x 28/385 g |
| Special Features Radio Station | |
| ASQ adjustable | Yes, 28 levels |
| Scanning channels | Yes |
| RF Gain | Yes, 9 levels |
| Keypad lock | Yes |
| Multicolored screen | Yes |
| Emergency channel button 9/19 | Yes |
| Operating temperature | -26 C - +60 C |
| Additional speaker connection | Yes |
| Radio antenna features | |
| Frequency of work | 26 - 28 Mhz |
| Maximum power applied | 30 W |
| Minimum SWR at the center of the band | less than 1.2: 1 |
| Length of the antenna | 44 cm (base included) |
| impedance | 50 Ohm |
| Connector type | PL259 |
| Cable length | 4m |
| The package contains | |
| CB radio station | Yes |
| CB Radio Antenna | Yes |
| Magnetic base | Yes |
| Plug PL259 | Yes |
| RG58 cable | Yes, 4 m |
| Cable antenna support | Yes |
