CB PNI saateraadio pakett HP 6500 ASQ + CB PNI ML70 antenn
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292318087 |
| EAN | 05949066516733 |
| Tootja kood | PNI-PACK61 |
Toote kirjeldus
Reduced dimensionsIts small dimensions (only 110x120x25mm) allow the station to be located even in very narrow spaces, without having to resort to a real installation, such as a classic CB. |
|
| 4W transmission powerThe station complies with the Romanian legislation in force harmonized with the European norms, having the maximum legal power of 4 W. |
FM / AMCB PNI Escort The HP 6500 Escort allows FM radio communication, used in Romania, but also in the AM band, when traveling outside the country. In addition to the bandwidth type, the station also allows the selection of the frequency band, which is necessary for the station to be used in other countries in Europe. |
|
| Squelch double, adjustable and digital automaticallyThe PNI Escort HP 6500 is enhanced with a Digital Automatic Squelch (Digital Automatic Squelch). The double manual and automatic squelch mode provides 28 and 9 levels with the RF Gain function for a finer tuning of the reception. |

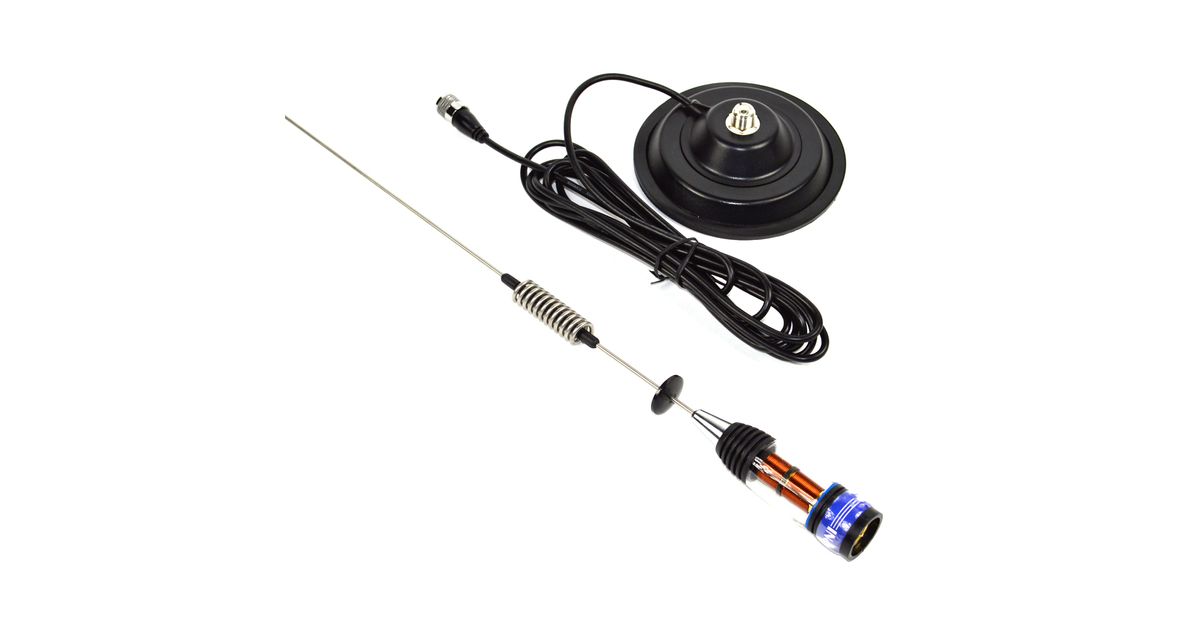

CB PNI ML70 antenna performanceThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.2, maximum applied 200 W, impedance 50 Ohms, stainless steel etc. |
|
| Communication distanceThe distance of communication is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of up to 9 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, station with maximum legal power of 4W and standard reception. Any obstacle such as hills, mountains, buildings, walls can reduce this distance. |
Length of the antennaThe length of the antenna is a very important factor that can influence the distance of communication. Thus, the longer the antenna is, the longer the range is. The PNI ML70 antenna has a length of 70 cm (magnetic base included). |
|
| Magnetic baseThe PNI 145 / PL magnetic base is provided with a 4 m cable, enough to seat the antenna on the dome, is 145 mm in diameter and a powerful magnet that provides the antenna with stability even at high speeds. |
| Product Identification | |
| Product code | PNI-PACK61 |
| General Radio Station Features | |
| Model | Furniture |
| Broadcasting type | AM-FM |
| Frequency | 26.965-27.405 MHz |
| channels | 40 AM / FM |
| Audio speaker power | 1 W |
| Sensitivity (20dB SINAD) | higher than 1 μV (AM / FM) |
| Emission power | 4 W |
| Modulation | 80 - 90% |
| feeding | 12 V |
| Consumption | 2A max |
| Dimensions / Weight | 110 x 120 x 28/385 g |
| Special Features Radio Station | |
| ASQ adjustable | Yes, 28 levels |
| SQ - Squelch | Yes |
| Scanning channels | Yes |
| RF Gain | Yes, 9 levels |
| Keypad lock | Yes |
| Emergency channel button 9/19 | Yes |
| Radio antenna features | |
| Frequency of work | 26 - 28 Mhz |
| Number of channels | 90 |
| Maximum power applied | 200 W |
| Minimum SWR at the center of the band | less than 1.2 |
| Length of the antenna | 70 cm (magnetic base included) |
| Working distance | 7 km |
| impedance | 50 Ohm |
| Material | Stainless steel |
| Connector type | PL259 |
| Diameter hole | 16 mm |
| Magnetic base included | Yes |
| Magnetic base diameter | 145 mm |
| Cable length | 4m |
| The package contains | |
| CB radio station | Yes |
| CB Radio Antenna | Yes |
| Magnetic base | Yes |
| Plug PL259 | Yes |
| RG58 cable | Yes, 4 m |
