DeLOCK 62864 liidesekaart/adapter Sisemine M.2
DeLOCK 62864, U.2, M.2, Must, Roheline, 6 Gbit/s, Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise..., 52 mm
Loe rohkem...
Loe rohkem...
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | DeLOCK |
| Tootekood | 16735784 |
| EAN | 04043619628643 |
| Tootja kood | 62864 |
| Kategooria | S-ATA kaablid ja adapterid |
Toote kirjeldus

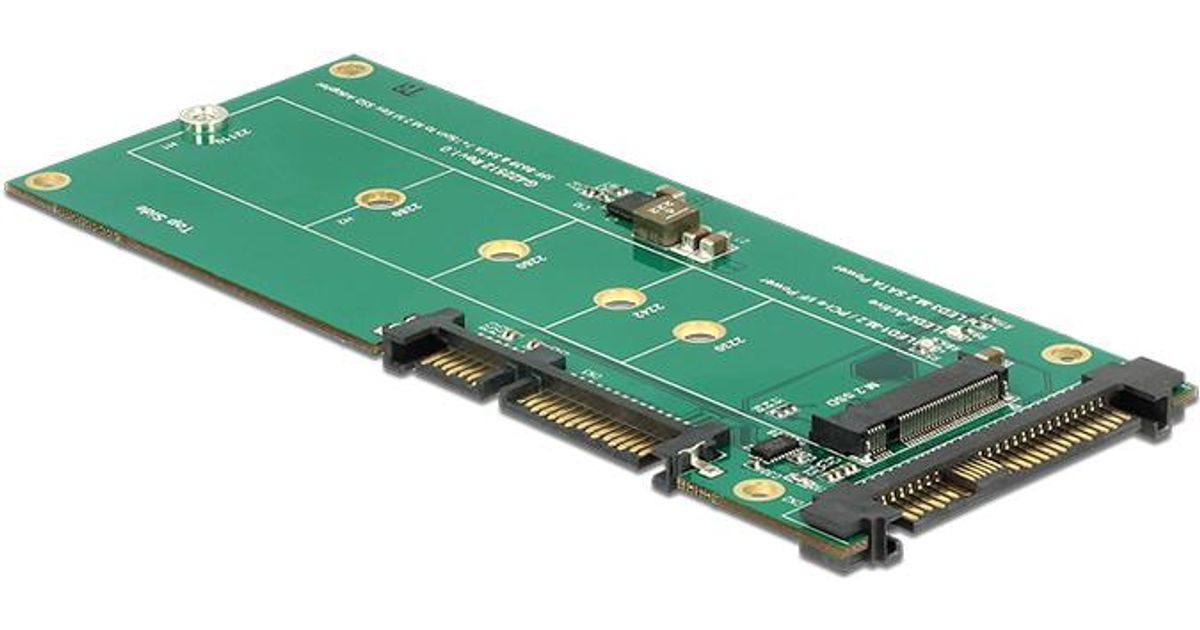

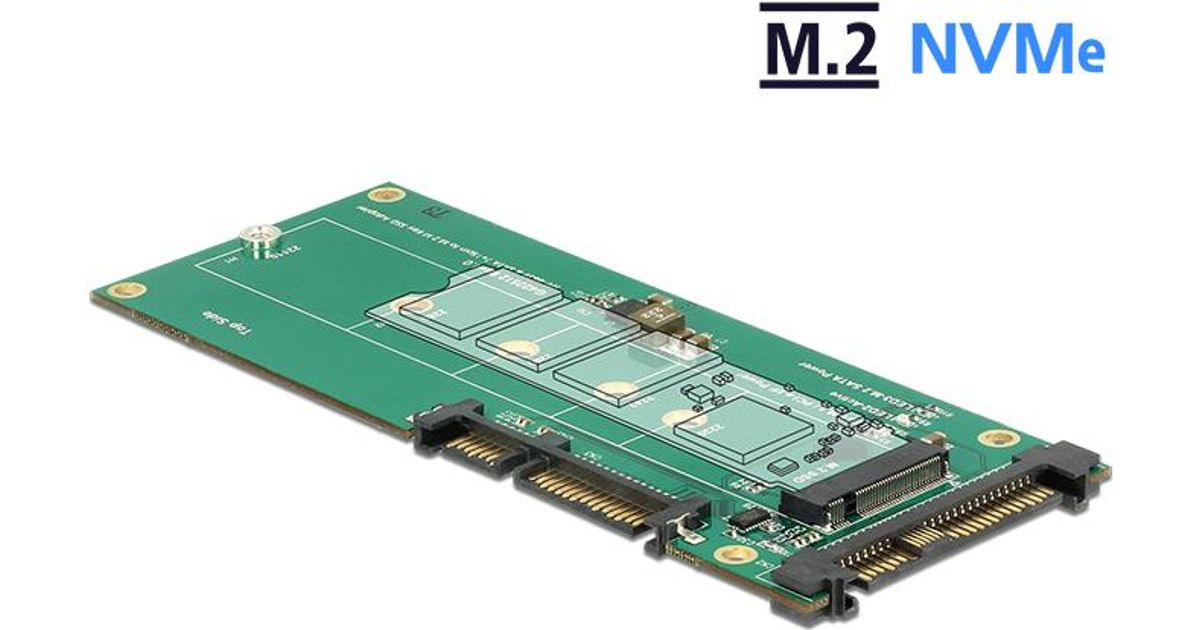

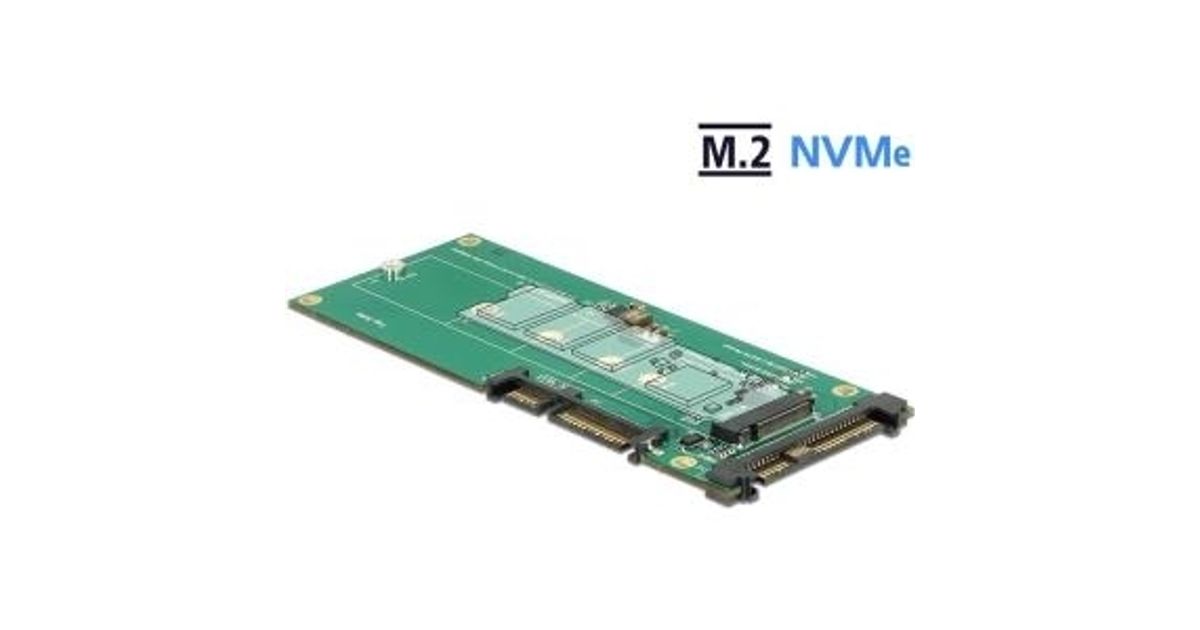

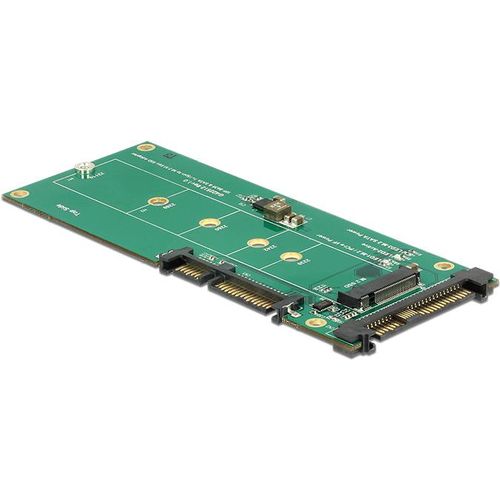

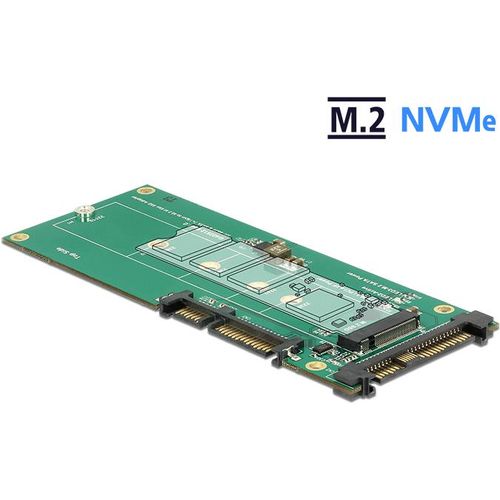

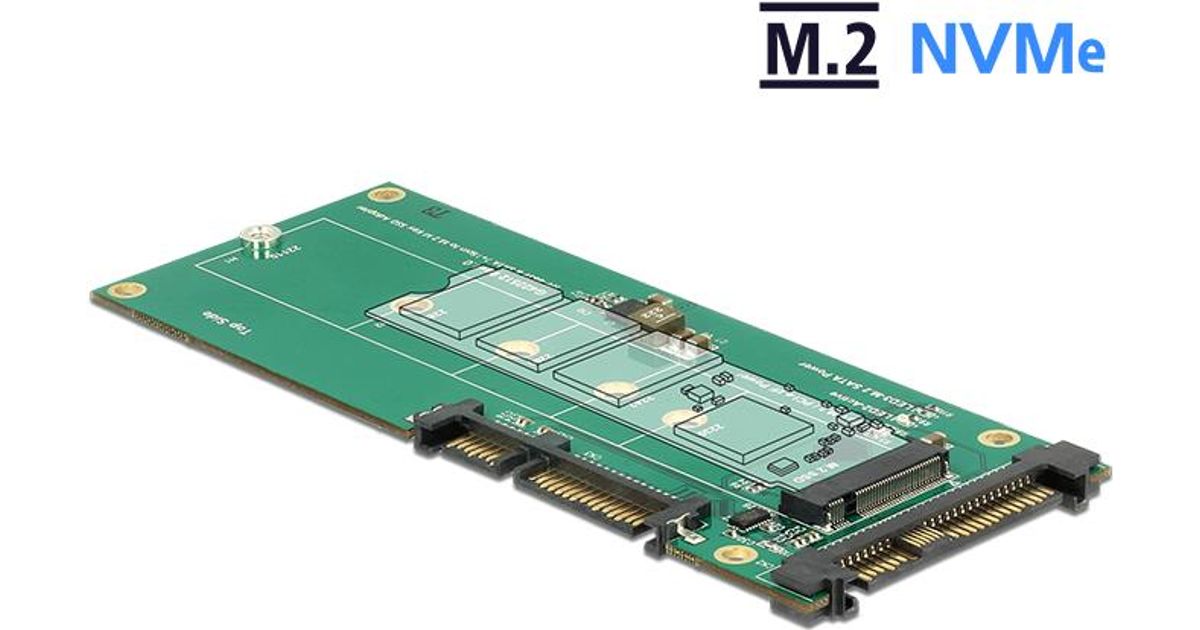

This Delock converter enables the connection of a M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. It allows the possibility to connect a PCIe or SATA M.2 SSD. The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the U.2 interface while using a PCIe M.2 SSD.
Specification
• Connectors:
1 x U.2 SFF-8639 male (for PCIe SSDs 2 or 4 lanes)
1 x SATA 6 Gb/s 22 pin receptacle (for SATA SSDs)
1 x 67 pin M.2 key M slot
• Interface: SATA / PCIe (2 or 4 lanes)
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key
B+M based on SATA or PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided
assembled modules supported
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Maximum output current: 3 A
• Over current protection, over heating protection, short circuit protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 130 x 52 x 6 mm
System requirements
• Linux Kernel 3.20 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free U.2 SFF-8639 interface (PCIe SSD) or
• A free SATA 22 pin interface (SATA SSD)
Package content
• Converter

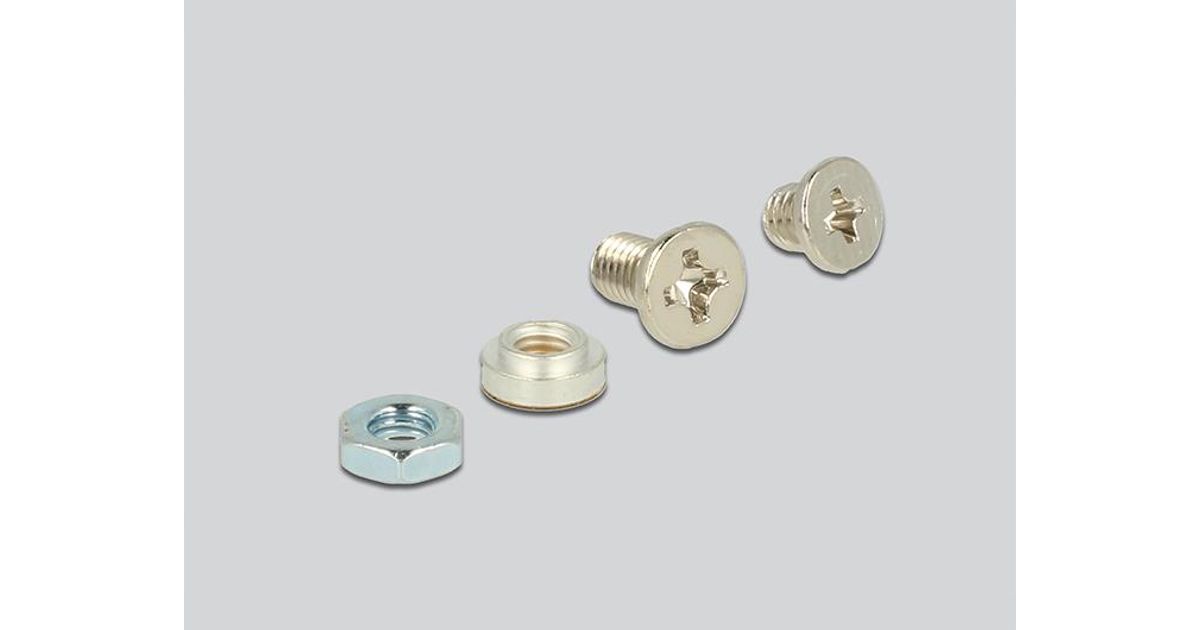

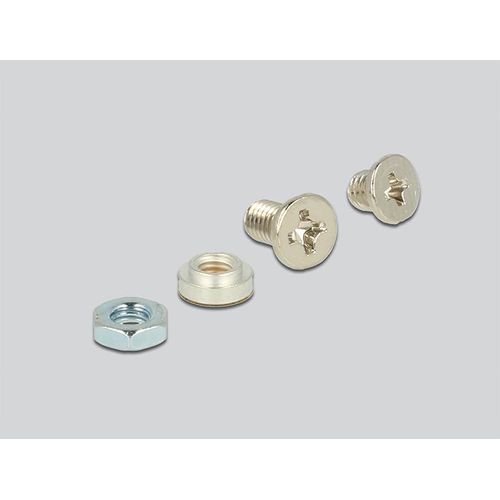

• Mounting material
• User manual
