Tootepildid on illustratiivsed

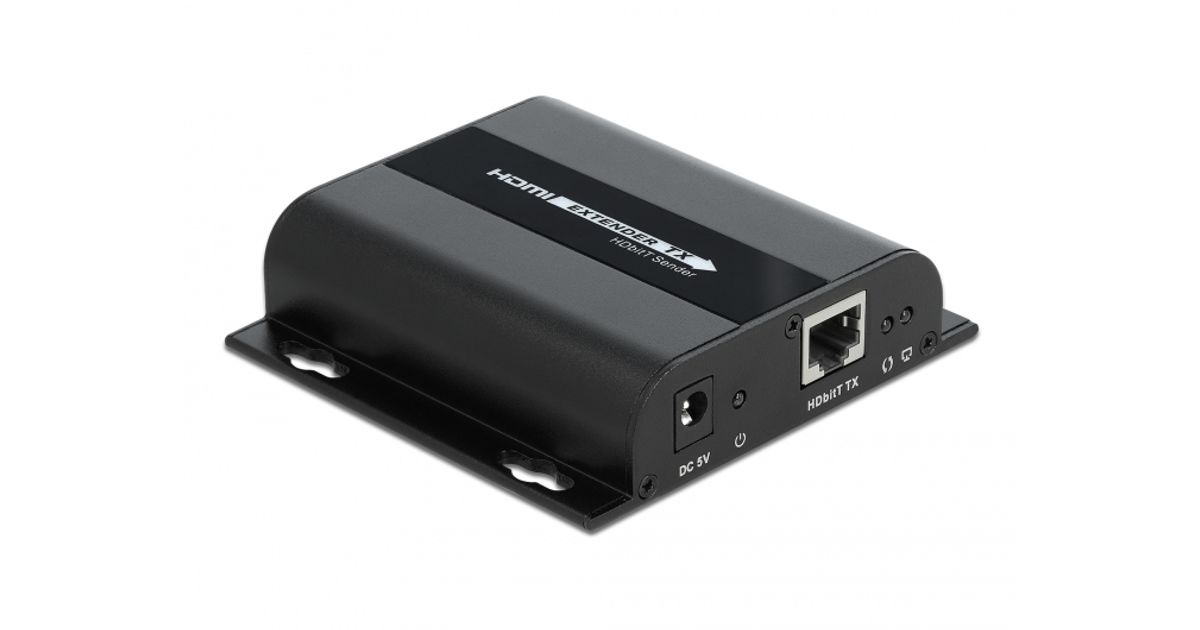

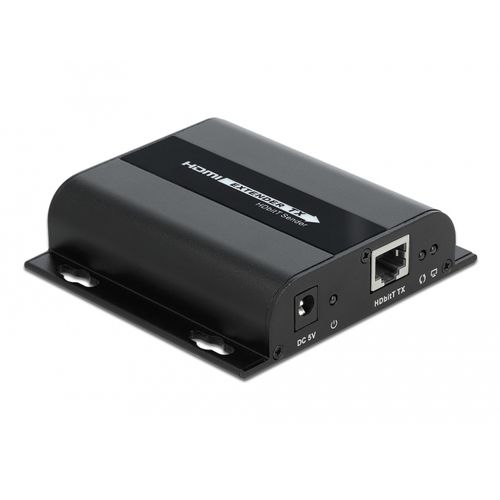

DeLOCK 65950 AV-pikendus AV saatja Must
DeLOCK 65950, AV saatja, 100 m, Juhtmega ühendatud, Must, HDCP
Loe rohkem...
Loe rohkem...
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | DeLOCK |
| Tootekood | 326048571 |
| EAN | 04043619659500 |
| Tootja kood | 65950 |
| Kategooria | Muud AV tooted ja elektroonika |
Toote kirjeldus
This video extender system by Delock allows video signals to be transmitted over an IP network. The transmitter and receiver can be connected with a network cable of up to 100 m. Alternatively both devices can be connected via a switch, the distance between the source and the display device can then be 200 m.
HDBitT
The HDBitT technology allows different transmitters and receivers to be combined with each other, e.g. a DisplayPort transmitter with an HDMI receiver. Optionally, several receivers can be operated simultaneously.
Specification
• Connectors:
1 x RJ45 jack
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female (IR)
1 x DC 5.5 x 2.1 mm female
• Transmission of audio and video signals
• Transmission of IR signals 20 - 60 kHz
• Supported resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
• Supports EDID und HDCP
• Supports RTP Multicast
• Supports One-to-one and One-to-many connections
• Latency: ca. 400 ms
• Power consumption: max. 3.5 W
• Robust metal housing
• Wallmount option
• Dimensions (LxWxH): ca. 97 x 94 x 24 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• Connection cables
• Receiver for video over IP
• Switch with VLAN or IGMP snooping

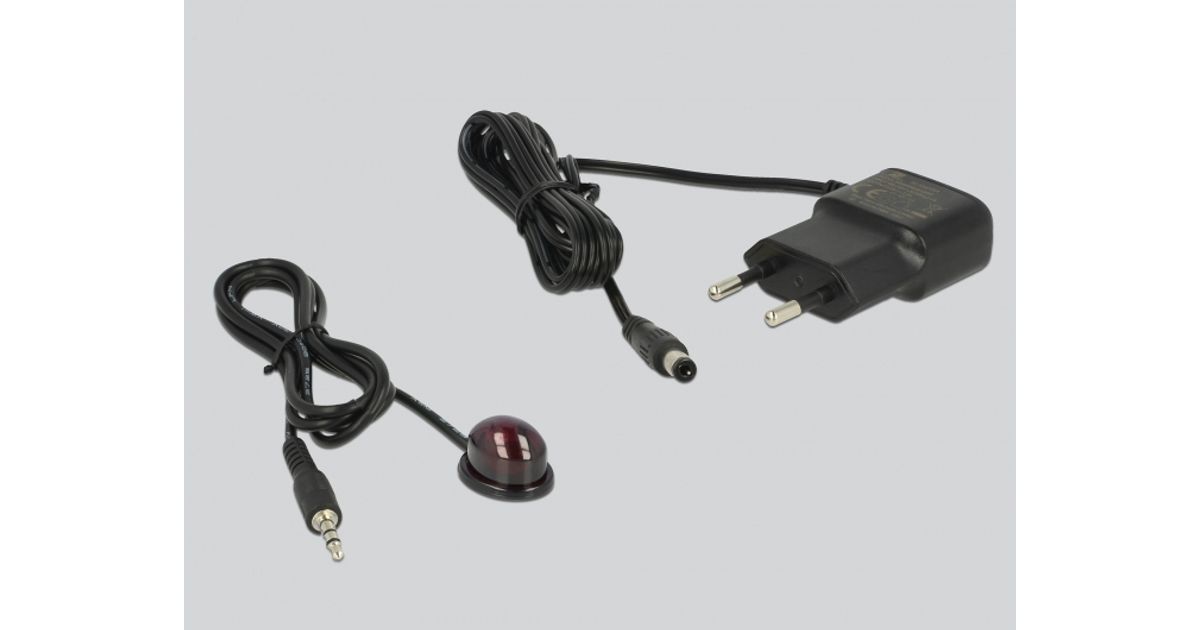

Package content
• HDMI transmitter
• Infrared transmitter
• Power supply
• User manual
