Ermenrich PL30 optisches Nivelliergerät

Tootja: Ermenrich Tootekood: 1111572706 EAN: 05905555021782 MPN: 84090

Toote andmed

Üldandmed
Tootja	Ermenrich
Tootekood	1111572706
EAN	05905555021782
Tootja kood	84090
Kategooria	Mõõteseadmed

Toote kirjeldus

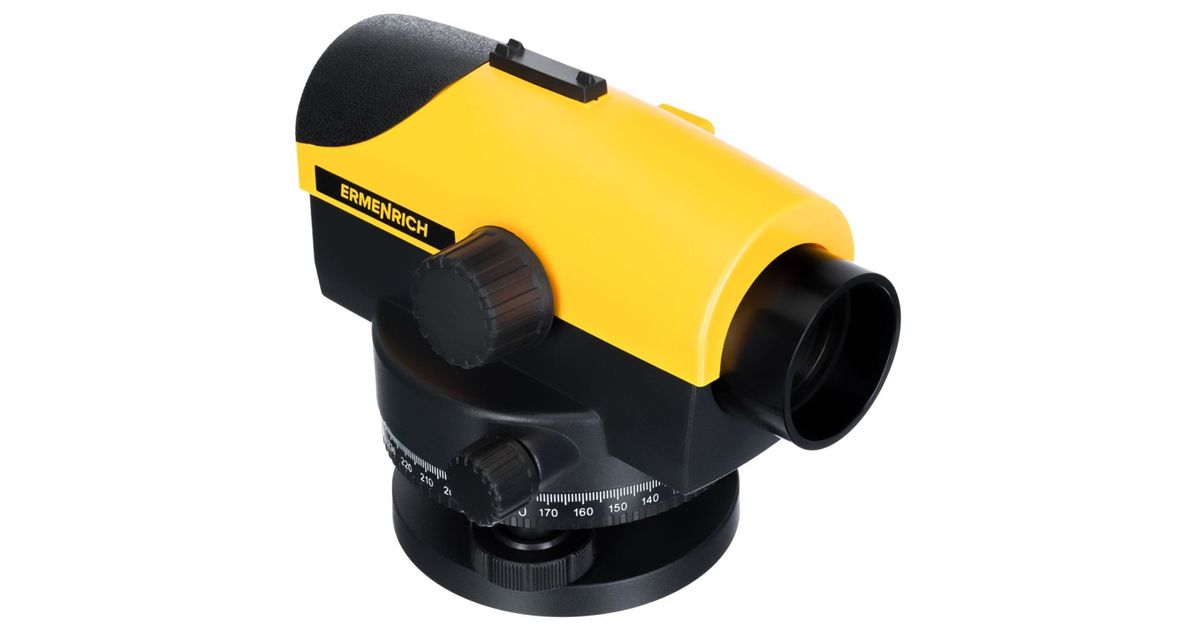

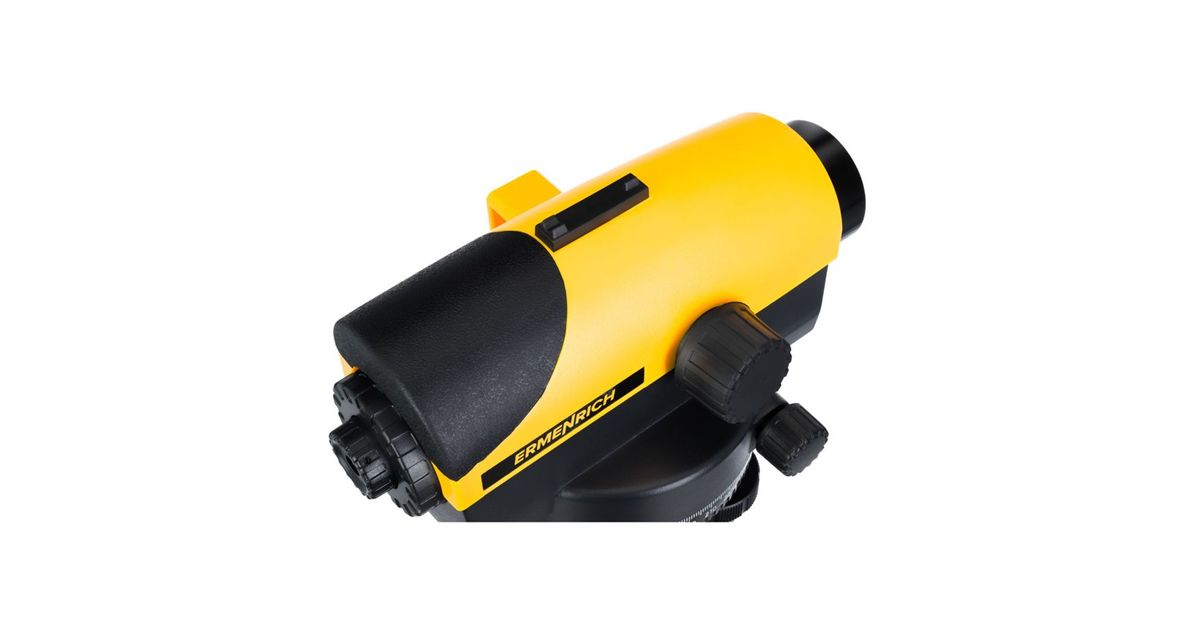

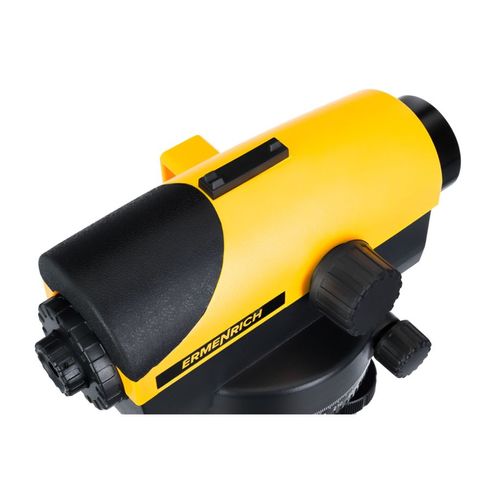

Ermenrich PL30 optical leveller

The Ermenrich PL30 leveller is an optical instrument that allows you to measure the vertical height (difference in height) between two points distant from each other, angles in the horizontal plane and the distance to an object. The 32x magnification allows you to see the millimeter scale of a leveling bar at a distance of up to about 50 meters. The metric E" divisions are visible over the entire working distance - up to 120 meters. The optical leveler is equipped with a compensator, which automatically aligns the finish line, making the work easier and more convenient. The compensator is robust and the measurement accuracy high.

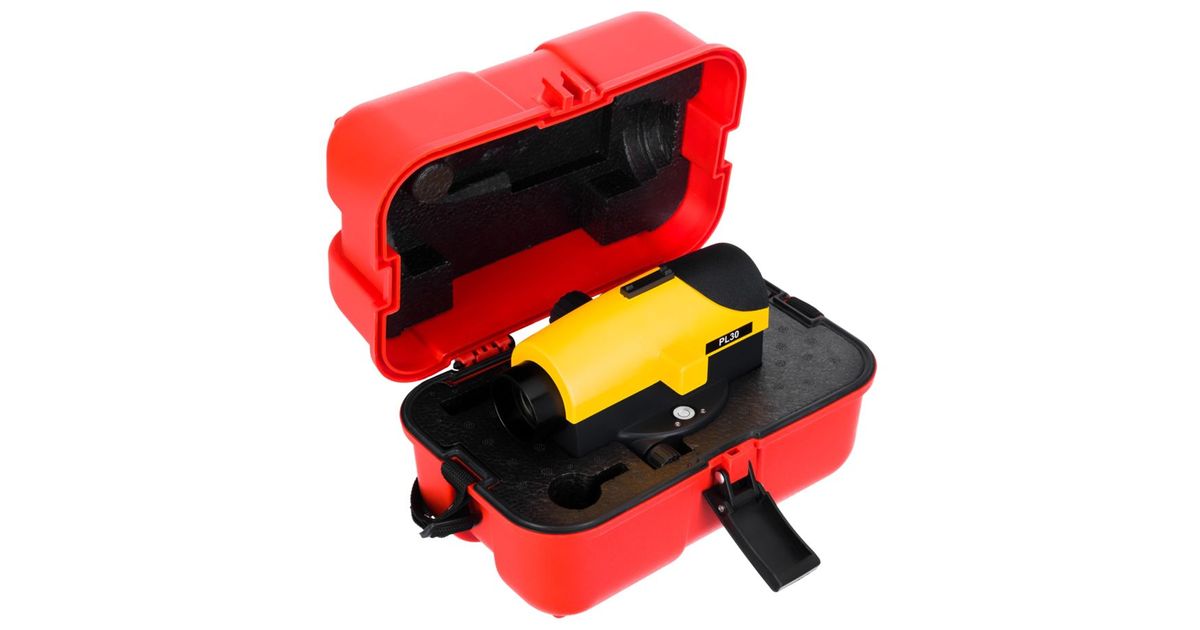

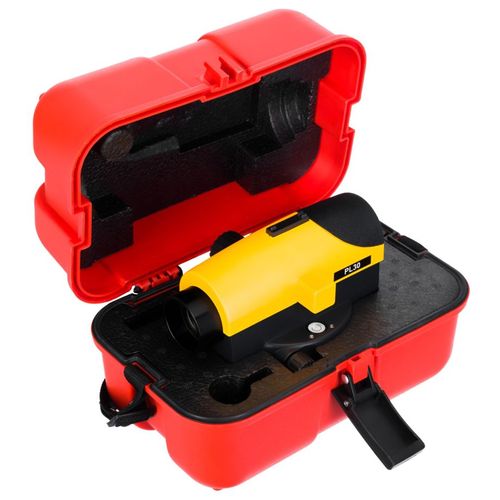

The optical leveller is ideal for construction, landscaping and surveying. It can be used both for professional purposes (construction of large buildings and facilities, laying foundations) and to solve everyday tasks in the household (leveling the floor, building a fence, setting up a greenhouse). The unit is robust and splash-proof, and the set includes alignment tools.

Note: To measure with the optical leveler, you need a leveling bar and a tripod (not included).

Features:

Optical, with compensator
Upright image of the target
Magnification: 32-fold
Lens diameter: 36 mm
Water resistant
M16 or 5/8-inch tripod thread
Colour: purple / black

Technical data:

Level type: optical
Compensator type: air damping
Image of the target: upright
Near focus: 0.3 m
Field of view: 1°30'
Height accuracy for single measurement: 1.6 mm / 30 m
Standard deviation per 1 km (double levelling): 1 mm
Working range of the compensator: 0.3 angular seconds
Compensation locking
Stadia ratio: 100

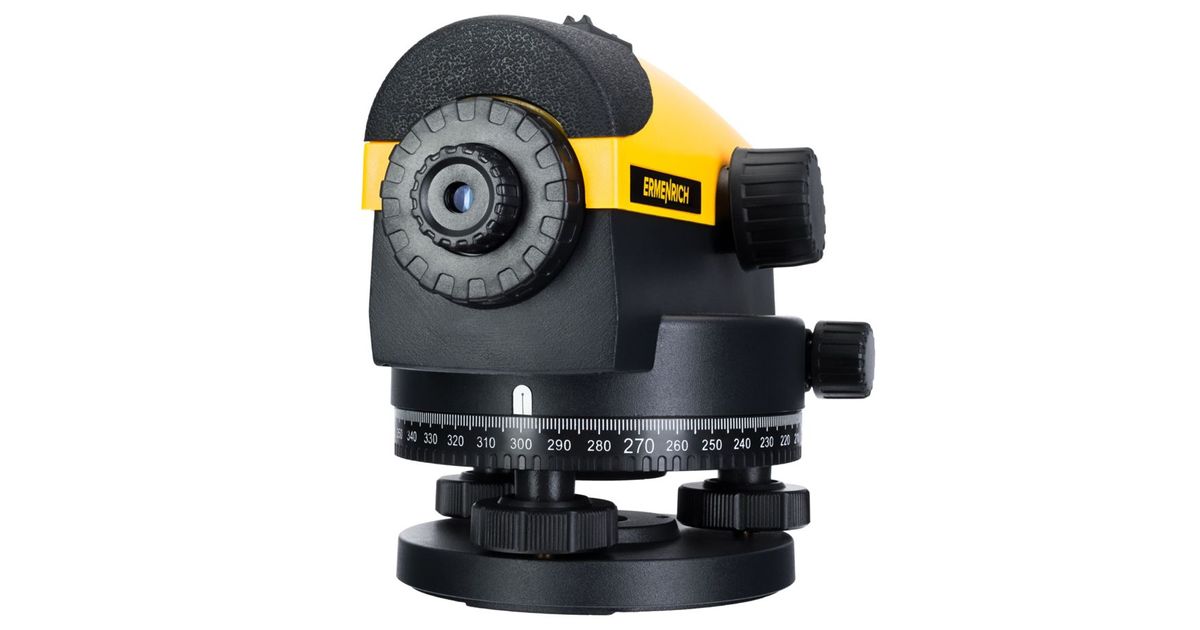

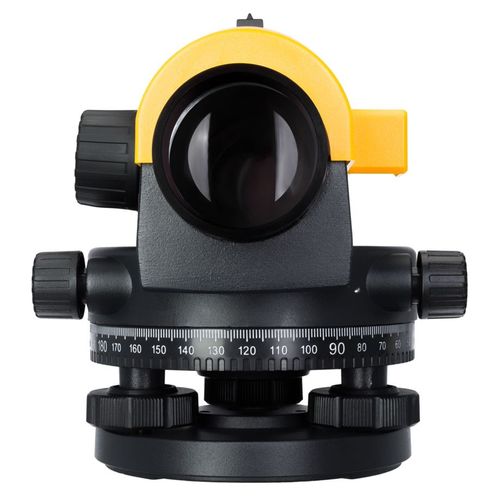

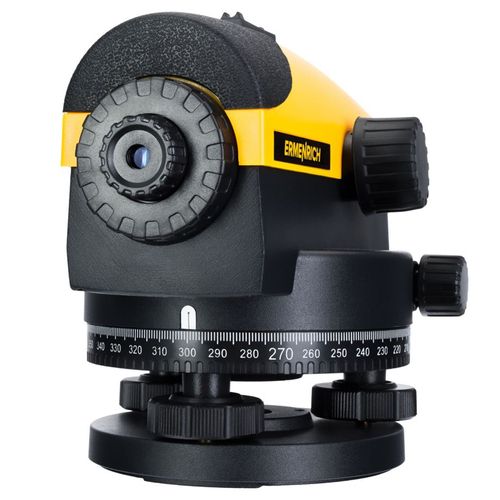

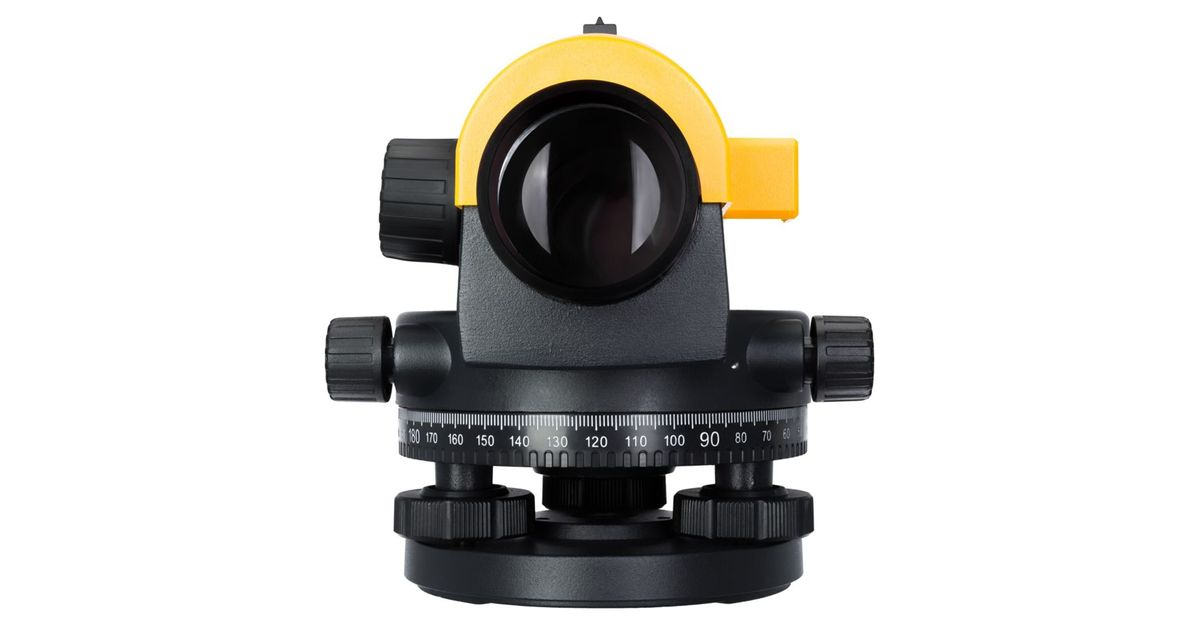

Horizontal circle: 1° or 1 gon

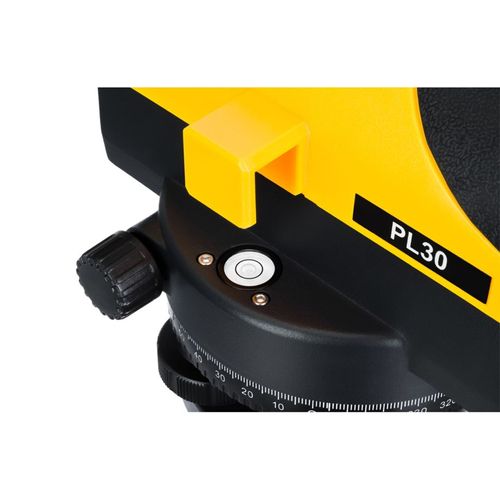

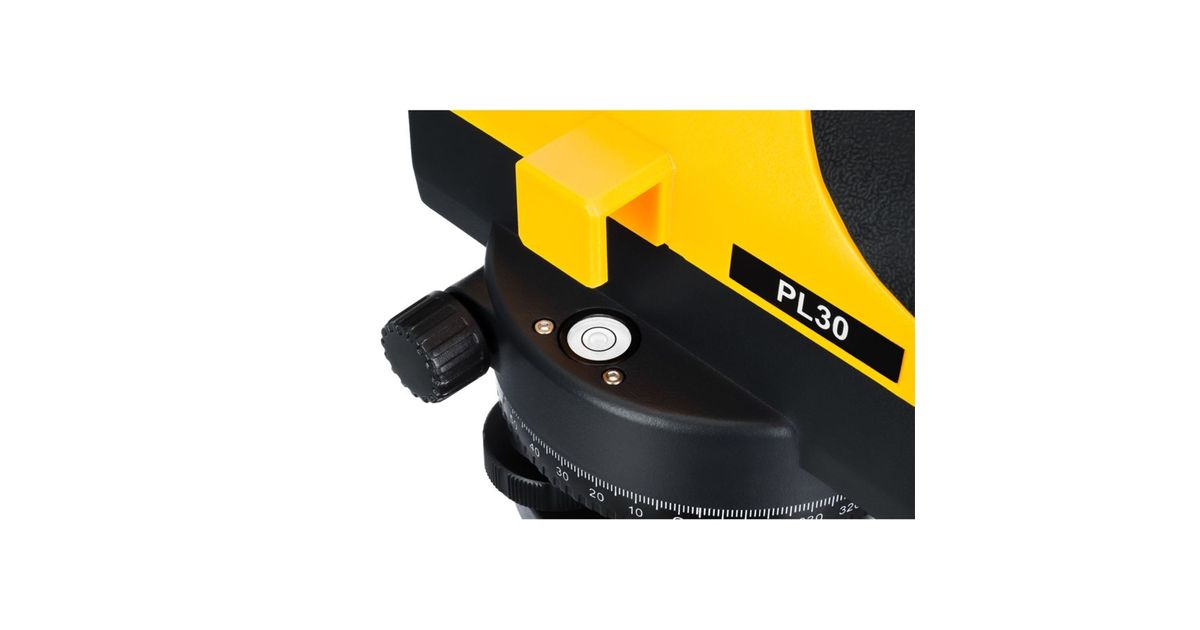

Sensitivity of the bubble: 8'/2 mm
Housing: Robust plastic
Water resistance: IP54 (splash-proof)
