Fuel Gauge OHM Rating 0-90 Ohms
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Nuke Performance |
| Tootekood | 859157792 |
| Tootja kood | 150-FLG-01 |
| Kategooria | CFC seadme varuosad / tarvikud |
Toote kirjeldus

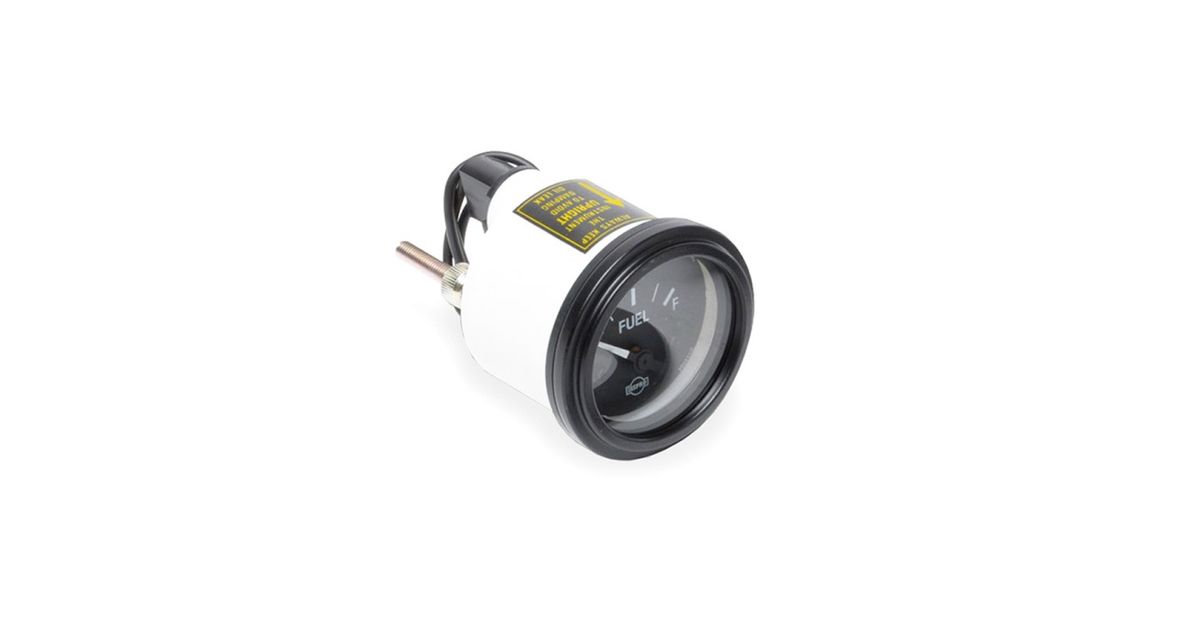

Pyrotect / Isspro fuel level gauge 0-90 Ohms for the Pyrotect / Isspro fuel level sender units.
0-90 Ohms fuel level gauge to use with the Pyrotect / Isspro fuel level sender units for the Nuke Performance CFC Units.
Ohm resistance:
0 Ohms : empty
90 Ohm : full
Optional specifications:
0-90 Ohms / 76-6 Ohms / 240-33 Ohms, contact us for more information.
Order a full setup with fuel level sender unit and gauge together
The fuel level sender units are available in 8" (203mm), 9" (228mm), 10" (254mm), 12" (305mm), 13" (330mm), and 16" (406mm). If you want to order a full set of fuel level sender units and gauges, proceed to these products.
Fuel Level Sender Unit 8" With Gauge Part # : 150-FLS-08-02
Fuel Level Sender Unit 9" With Gauge Part # : 150-FLS-09-02
Fuel Level Sender Unit 10" With Gauge Part # : 150-FLS-10-02
Fuel Level Sender Unit 12" With Gauge Part # : 150-FLS-12-02
Fuel Level Sender Unit 13" With Gauge Part # : 150-FLS-13-02
Fuel Level Sender Unit 16" With Gauge Part # : 150-FLS-16-02
