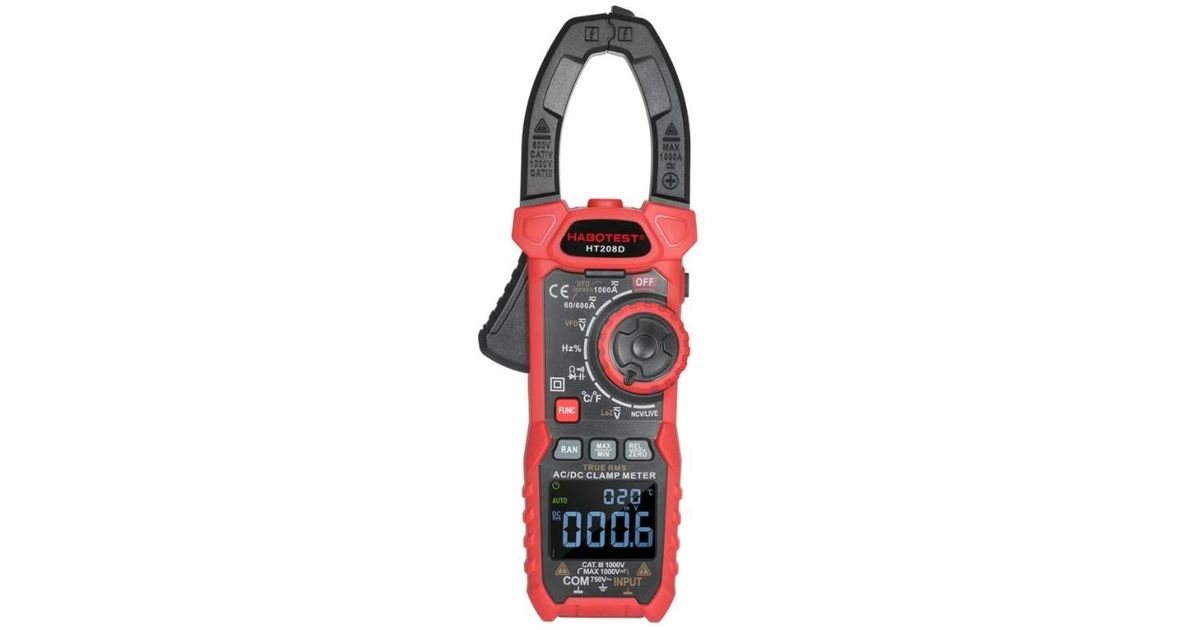

Habotest HT208D Digital Clamp Meter
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Habotest |
| Tootekood | 596191846 |
| EAN | 05907489607711 |
| Tootja kood | HT208D |
| Kategooria | Mõõteseadmed |
Toote kirjeldus
Habotest HT208D digital clamp meter
HT208D is a practical device with which you can check the value of various parameters, for example, AC and DC voltage and current, resistance, temperature, inrush current and many others. The product provides accurate measurements, and the results are displayed on the LCD screen. The HT208D also features a flashlight for convenient operation in dark rooms.
Multifunctional device
You will use the HT208D in many situations. You can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. Furthermore, you can also check continuity and true RMS value.
Safe use
The device is completely safe to use. You can, for example, detect voltage without touching, thanks to the NCV sensors. The meter's jaws, thanks to their maximum width of 40 mm, allow you to make measurements comfortably without damaging the circuit. The flashlight function ensures comfortable and safe work in dark rooms.
Additional features
When it receives an electromagnetic signal, the NCV sensor will send an audible alarm, and if the voltage or current is high, the LCD screen color will turn orange. What's more, the device will automatically turn off to save power if no action is performed within 15 min.
Specification
| Function | HT208A | HT208D |
| DC voltage |
6V/60V/600V/1000V ±(1%+3) |
6V/60V/600V/1000V ±(1%+3) |
|---|---|---|
| AC voltage |
6V/60V/600V/750V ±(1.2%+3) |
6V/60V/600V/750V ±(1.2%+3) |
| DC current | 6V/60V/600V/750V |
6V/60V/600V/750V ±(1.2%+3) |
| AC current |
60A/600A/1000A ±(3.0%+5) |
60A/600A/1000A ±(3.0%+5) |
| Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) |
| Capacity |
10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3), 100mF ±(5.0%+5)
|
10nF/100nF/1μF/10μF/100μF/1mF/10mF±(4.0%+3), 100mF ±(5.0%+5) |
| Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) |
| Duty |
1%~99% ±(1.0%+2) |
1%~99% ±(1.0%+2) |
| Temperature |
-40°C~1000°C ±(1.0%+3) |
-40°C~1000°C ±(1.0%+3) |
| Counts | 6000 | 6000 |
|
Auto/manual range |
Yes | Yes |
| Continuity | Yes, LED and buzz | Yes, LED and buzz |
| Diode | Yes | Yes |
| Data hold | Yes | Yes |
| NCV | Yes, LED and buzz | Yes, LED and buzz |
| Double color backlight | Yes | Yes |
| Flashlight | Yes | Yes |
|
Low battery indicator |
Yes | Yes |
| Auto power off | Yes | Yes |
| True RMS | Yes | Yes |
| LPF | Yes | Yes |
| MAX/MIN | Yes | Yes |
| V-LoZ | No | Yes |
| Power | 2x AA batteries (in the box) | 2x AA batteries (in the box) |
| Weight | about 380 g | about 380 g |
| Size | 240 x 85 x 40 mm | 240 x 85 x 40 mm |
| Size of jaws | 44 mm | 44 mm |
| Safety |
EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V |
EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V |
