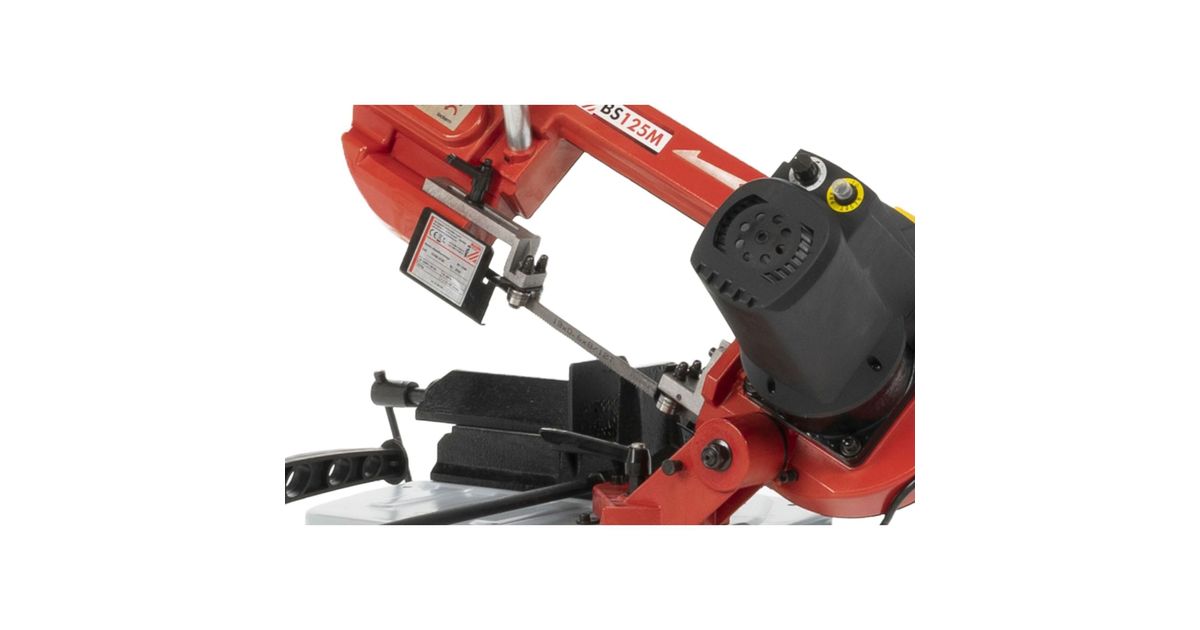

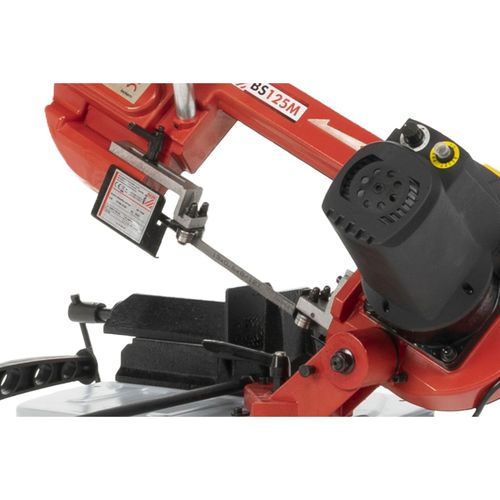

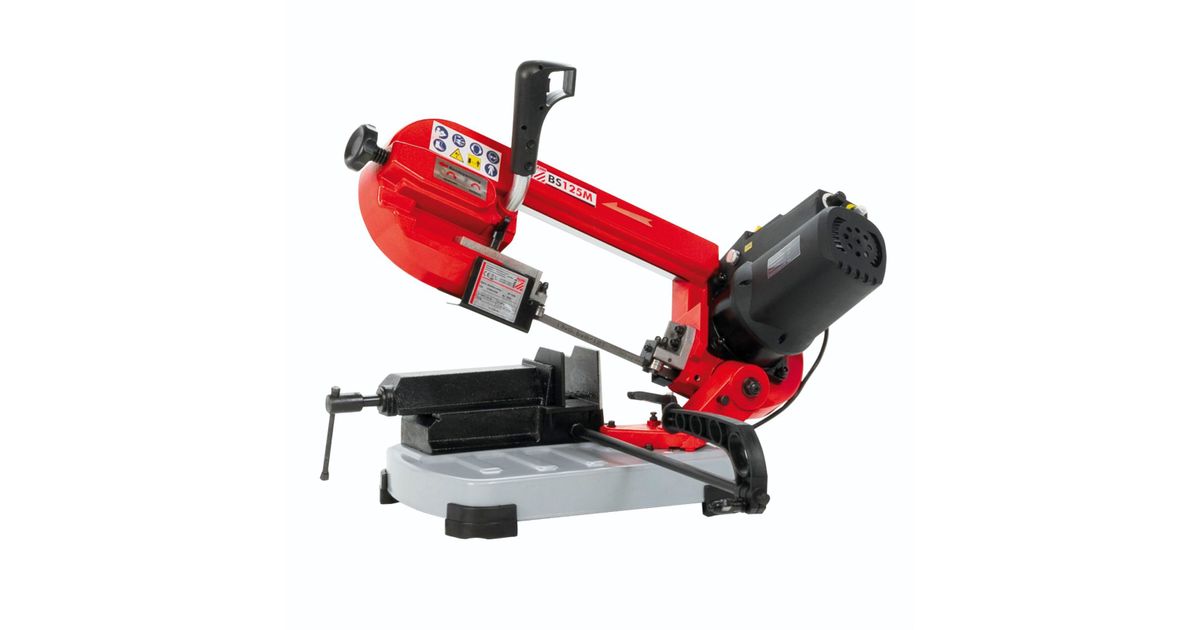

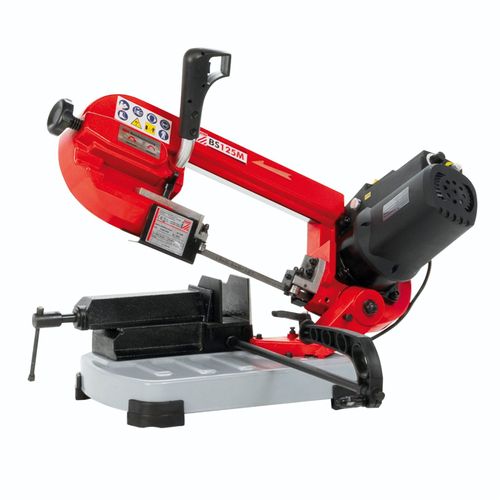

Holzmann BS125M mobile Metal Band Saw
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Holzmann |
| Tootekood | 116610583 |
| EAN | 09120039901190 |
| Tootja kood | BS125M |
| Kategooria | Saepingid, plaatsaed ja tarvikud |
Toote kirjeldus
Holzmann BS125M mobile metal band saw 230 V
Features:
- Particularly suitable for mobile assembly, repair and construction site use thanks to its low own weight
- Ideal for sawing iron, steel, aluminium, copper and PVC
- Infinitely variable electronic speed control allows precise adjustment of the cutting speed to the material
- Ball bearing saw blade guide and solid base plate with non-slip feet ensure smooth running and cutting accuracy
- Saw blade tension can be conveniently adjusted via a rotary knob positioned on the front side
- Spring-assisted saw arm lowering
- Mitre cuts up to 60° with quick angle adjustment and scale
- Lockable saw bow for transport
- Standard with band saw blade, vice, workpiece stop
Technical data:
- Motor power S1: 400 W
- Voltage: 230 V
- Speed in min-1: 2000 - 4200
- Installation dimensions: 700 x 305 (640) x 435 (720) mm
- Cutting capacity round Ø 45°: 76 mm
- Cutting capacity round Ø 90°: 125 mm
- Cutting capacity L x H 45°: 76 x 76 mm
- Cutting capacity L x H 90°: 130 x 125
- Saw band: 1435 x 12,5 x 0,6 mm
- Saw blade speed: 35-80 m/min
- Sound power level: 90 dB(A)
- Sound pressure level: 77 dB(A)
- Net weight: 22 kg
-
Technical Data
- No-Load Speed (min-1):
- 2000 - 4200
- Handle:
- Yes
-
Energy Supply
- Power (Watt):
- 400
- Voltage (V):
- 230
-
Type
- Type:
- Metal Band Saw
- Operating Mode:
- Mains
-
General
- Overall Length (mm):
- 700
- Colour:
- Red
- Material:
- Metal / Plastic
- Width (cm):
- 70,0
- Height (cm):
- 30,5
- Depth (cm):
- 64,0
- Weight (kg):
- 22,0
