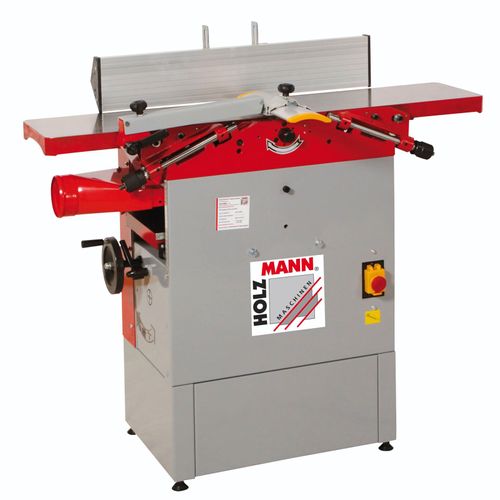

Holzmann HOB260NL Surface Planer Thicknessing Machine
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Holzmann |
| Tootekood | 117899649 |
| EAN | 09120039902289 |
| Tootja kood | HOB260NL_230V |
Toote kirjeldus
HOB260NL_230V surface planer thicknessing machine
Features:
- Feed rate: 8 m/min
- Stable base for high stability
- Swivelling planing fence
- Laterally hinged cast iron tables for comfortable thickness planing
- Extraction connection allows dust- and chip-free work
- Feed can be switched off optionally
- Dressing max. chip removal: 3mm
- planing fence: 720x135
- Swivel range of dressing fence: 90° -45
- Dressing table size: 1090x250 mm
- dressing table height: 855 mm
- Motor power S6: 2100 W
- Motor power S1:1500 W
- Feeding speed: 8
- Voltage: 230 V
- Suction connection: 100 mm
- Max. workpiece thickness: 185 mm
- Thickness planer table size: 600 x 185 mm
- Thickness planing max. chip removal: 3 mm
- planing shaft diameter: 75 mm
- Planing shaft speed: 4000 min-1
- Number of planing knives: 3
- Installation dimensions: 1100 x 420 mm
- Weight: 150 kg
-
Technical Data
- Planing Width (mm):
- 75
- Planing Depth (mm):
- 3
- Max. Rotation Speed (r/min):
- 4000
- Integrated Dust Extraction:
- No
-
Energy Supply
- Operating Mode:
- Mains
- Power (Watt):
- 2100
- Voltage (V):
- 230
- Rechargeable Batteries Included in Delivery:
- No
-
Type
- Type:
- Combined Planer and Thicknesser
-
General
- Colour:
- Red / Silver
- Width (cm):
- 110
- Height (cm):
- 85,5
- Depth (cm):
- 25
- Weight (kg):
- 150
