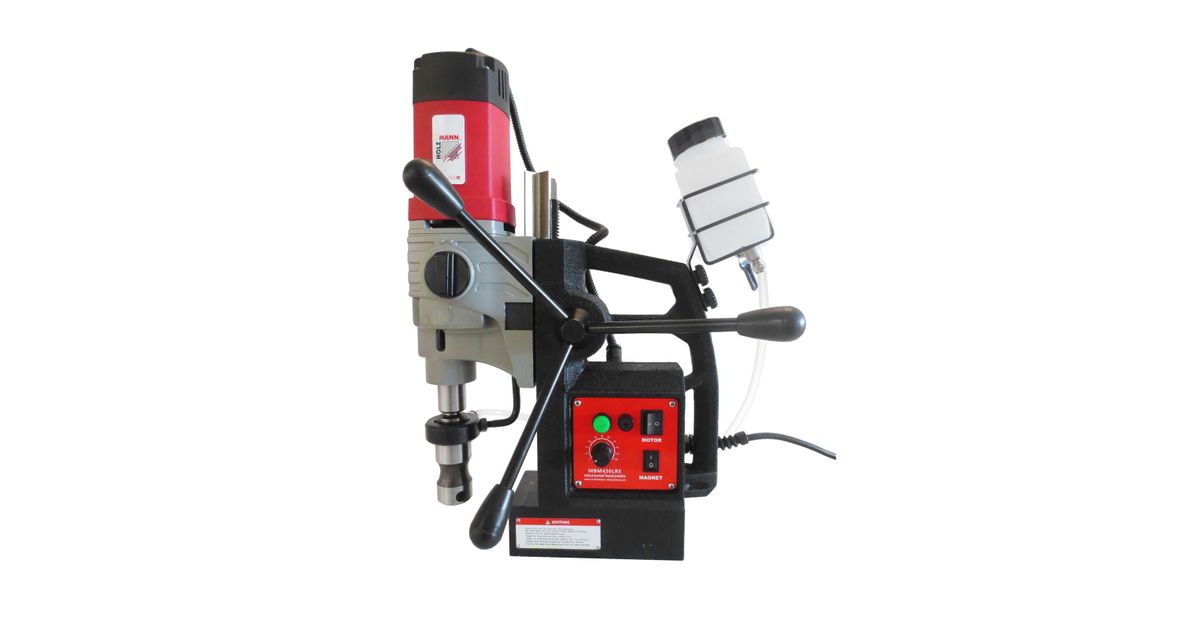

Holzmann MBM450LRE Magnetic Drilling Machine
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Holzmann |
| Tootekood | 116610581 |
| EAN | 09120058371608 |
| Tootja kood | MBM450LRE |
| Kategooria | Lööktrellid |
Toote kirjeldus
Holzmann MBM450LRE magnetic drilling machine 230 V
Features:
- For core & thread drilling
- Ideal for machining large unwieldy steel workpieces - wherever conventional drills and cordless screwdrivers are inadequate
- Enables mobile machining of workpieces with precise guidance
- Also for vertical drilling - effective and accurate
- By activating the electromagnet, the drill can be fixed on any steel part and in any position. No slipping!
- the magnet provides safety for working overhead
- often used in the construction industry, bridge building and shipbuilding
- multifunctional tool with left and right rotation adjustable speed, speed control and thread cutting device
Scope of delivery:
- Mandrel MK2 B16
- Gear rim drill chuck 1,5-13mm (B16)
- Drift wedge
- Tensioning belt and coolant device
- Transport box
- MK2 arbor for core drill
Technical data:
- Motor power S1: 1650 W
- Voltage: 230 V / 50 Hz
- Speed in min-1: 100 - 250 / 180 - 450
- Twist drill max. drilling depth: 110 mm
- Countersunk hole max. Ø: 22 mm
- Max. thread size: M18
- Magnetic base: 170 x 80 x 50 mm
- Magnet holding force: 15000 N
- Weldon shank holder: MK2 / MT2
- Twist drill max. Ø: 19 mm
- Core drill max. drilling depth: 35 mm
- Core drill max. Ø: 45 mm
- Distance quick-change holder - base plate: 240 mm
- Net weight: 12 kg
-
Energy Supply
- Power (Watt):
- >1001
- Power consumption (W):
- 1650
-
Type
- Type:
- Magnetic Core Drilling Machine
- Operating Mode:
- Mains
-
General
- Colour:
- Red
- Weight (kg):
- 12,0
