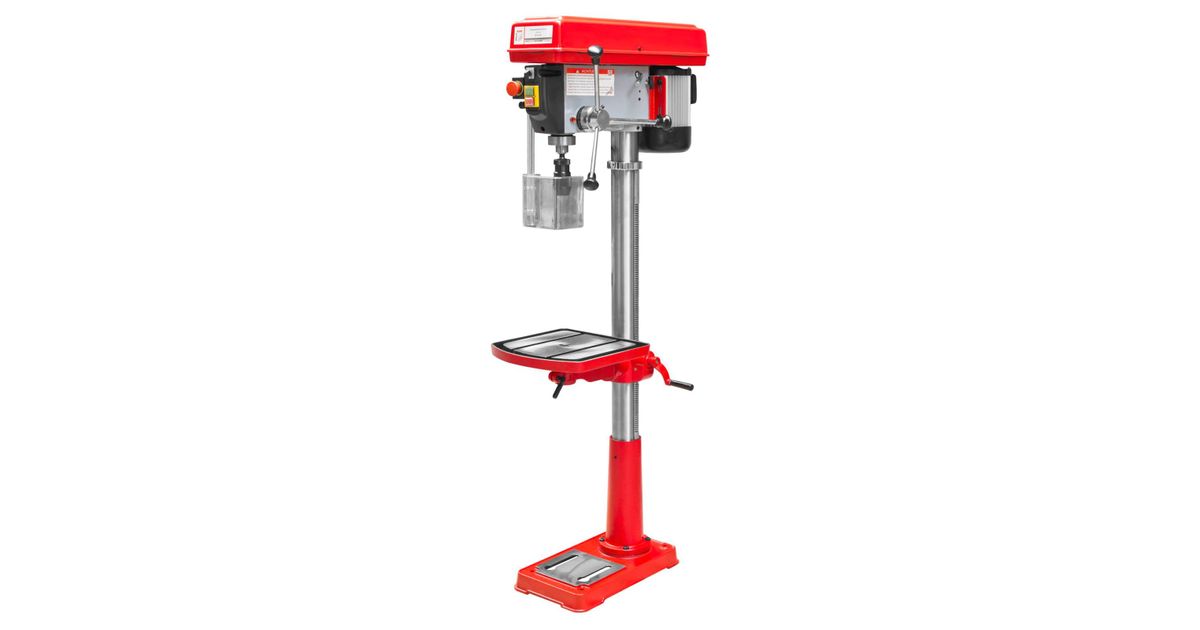

Holzmann SB2516H 230V column drill press
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Holzmann |
| Tootekood | 164021257 |
| EAN | 09120039909240 |
| Tootja kood | SB2516H_230V |
| Kategooria | Teisaldatavad tööpingid |
Toote kirjeldus
Features:
- Solid base plate for good stability
- Aluminium motor according to IP54
- Bending-resistant drill column with ground surface
- Rotating drilling table can be adjusted to any height via gear rack
- Practical three-arm lever with drill depth scaling
- Fold-away quick chuck cover made of acrylic glass
- Drill depth stop
Motor data:
- Motor power S1 in W: 1100
- Voltage: 230V
General dimensions:
- Max. height in mm: 1635
- Extension in mm: 215
- Table size in mm: 356 x 356
- Set-up dimensions in mm: 1635x356x780
Technical specification
- Spindle stroke in mm: 80
- Base plate in mm: 485 x 290
- Max. drilling power in mm: 25
- Drilling spindle speed in min-1: (16) 160-3000
- Drilling spindle mount: MK3 / MT3
- Distance spindle to base plate in mm: 1220
- Max. distance spindle to table in mm: 725
-
Technical Data
- Idle Speed (min-1):
- 160 - 3000
- Field of Application:
- Concrete / Wood / Steel
- Max. Drilling Capacity in Wood (mm):
- 25
-
Energy Supply
- Power (Watt):
- >1001
-
Type
- Type:
- Ständerbohrmaschine
- Operating Mode:
- Mains
-
General
- Colour:
- Red
- Width (cm):
- 35,6
- Height (cm):
- 163,5
- Depth (cm):
- 78,0
- Weight (kg):
- 79
