Muud andmed
|
| Certification |
CE, UL, FCC
|
| Bit rate control |
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
|
| Region of Interest (ROI) encoding |
Y
|
| Gain control type |
Auto/Manual
|
| Progressive scan |
Y
|
| Video compression formats |
H.264+
|
| Day/night mode |
Y
|
| Sensor type |
CMOS
|
| Maximum aperture number |
2
|
| Fixed focal length |
2.8 mm
|
| Intelligent Video Surveillance (IVS) system features |
Tripwire
|
| Flip & mirror |
Y
|
| Number of sensors |
1
|
| Management software |
Smart PSS, DSS, DMSS
|
| Surge protection voltage |
2 kV
|
| Number of lenses |
1
|
| ROM capacity |
32 MB
|
| Mobile operating systems supported |
iOS
|
| Infrared (IR) cut-off filter |
Y
|
| Mounting type |
Ceiling/Wall/Pole
|
| Web browser |
Y
|
| Active tampering alarm |
Y
|
| 3D NR (Noise Reduction) |
Y
|
| Optical sensor size |
25.4 / 3 mm (1 / 3")
|
| Video streaming |
Y
|
| Digital zoom |
16x
|
| Number of effective pixels (H x V) |
2688 x 1520 pixels
|
| Night Vision |
Y
|
| Smart IR |
N
|
| Number of users |
20 user(s)
|
| Fixed focus |
Y
|
| Streaming method |
Multicast
|
| Video motion detection |
Y
|
| Privacy masking |
Y
|
| Product colour |
White
|
| Power consumption (typical) |
5.5 W
|
| Quality of Service (QoS) support |
Y
|
| Power source type |
PoE
|
| Tilt angle range |
0 - 90°
|
| Depth |
108 mm
|
| Storage temperature (T-T) |
-30 - 60 °C
|
| Operating temperature (T-T) |
-30 - 60 °C
|
| Supported graphics resolutions |
640 x 480 (VGA)
|
| Ethernet LAN |
Y
|
| Viewing angle, horizontal |
104°
|

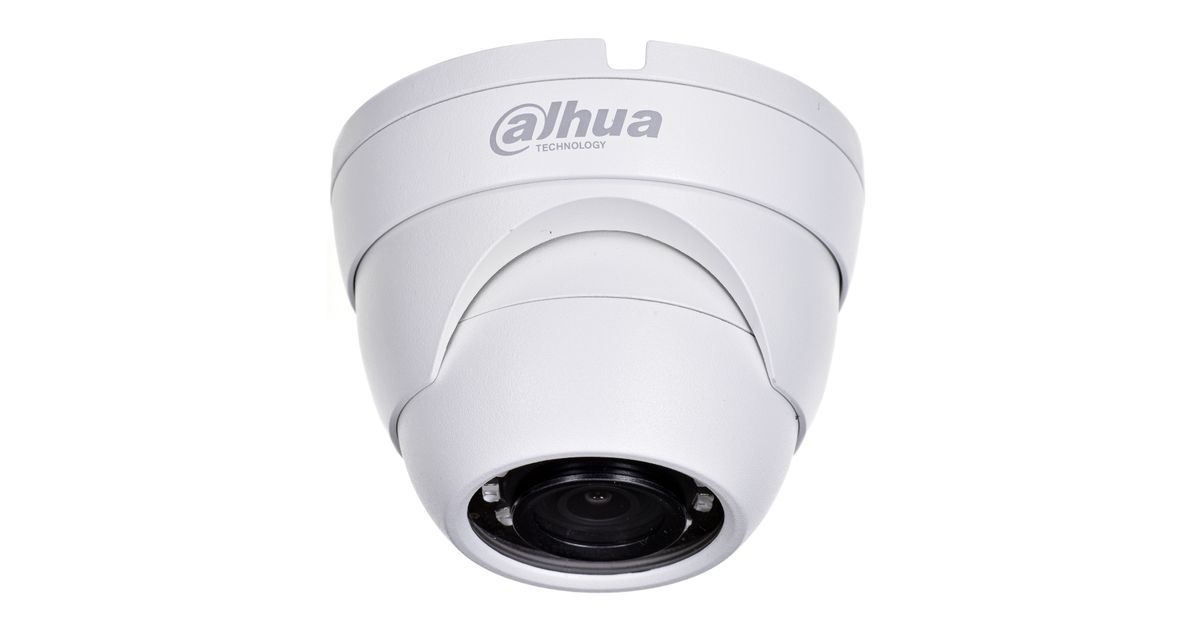

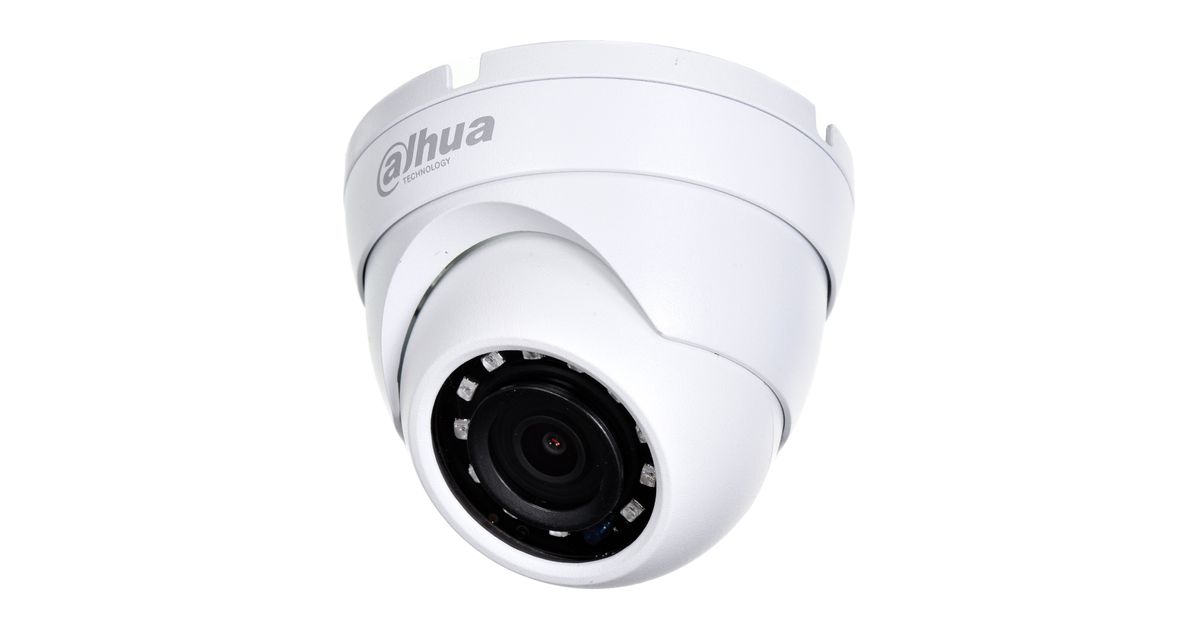

| Type |
IP security camera
|
| Networking standards |
IEEE 802.3af
|
| Maximum resolution |
2688 x 1520 pixels
|
| Form Factor |
Dome
|
| Package weight |
387 g
|
| Bit rate |
8448 - 32000
|
| Height |
84.9 mm
|
| Ethernet LAN (RJ-45) ports |
1
|
| Width |
108 mm
|
| Housing material |
Metal
|
| Camera shutter type |
Electronic
|
| Camera shutter speed |
1/3 - 1/100000 s
|
| PTZ control |
Y
|
| White balance |
Auto
|
| Angle of rotation |
360°
|
| LED type |
IR
|
| Total megapixels |
4 MP
|
| Ethernet interface type |
Fast Ethernet
|
| Number of cameras |
1
|
| Viewing angle, vertical |
57°
|
| Minimum Illumination |
0.08 lx
|
| Wide Dynamic Range (WDR) |
Y
|
| Weight |
230 g
|
| Cabling technology |
10/100Base-T(X)
|
| Back Light Compensation (BLC) |
Y
|
| Highlight Compensation (HLC) |
Y
|
| International Protection (IP) code |
IP67
|
| Operating relative humidity (H-H) |
0 - 95%
|
| Zoom capability |
Y
|
| Night vision distance |
30 m
|
| Number of illumination LEDs |
12
|
| Analog signal format system |
PAL
|
| Signal-to-Noise Ratio (SNR) |
50 dB
|
| Pan range |
0 - 360°
|
| Connectivity Technology |
Wired
|
| Protection features |
Dust resistant
|
