Kärcher SP 9.000 Flat

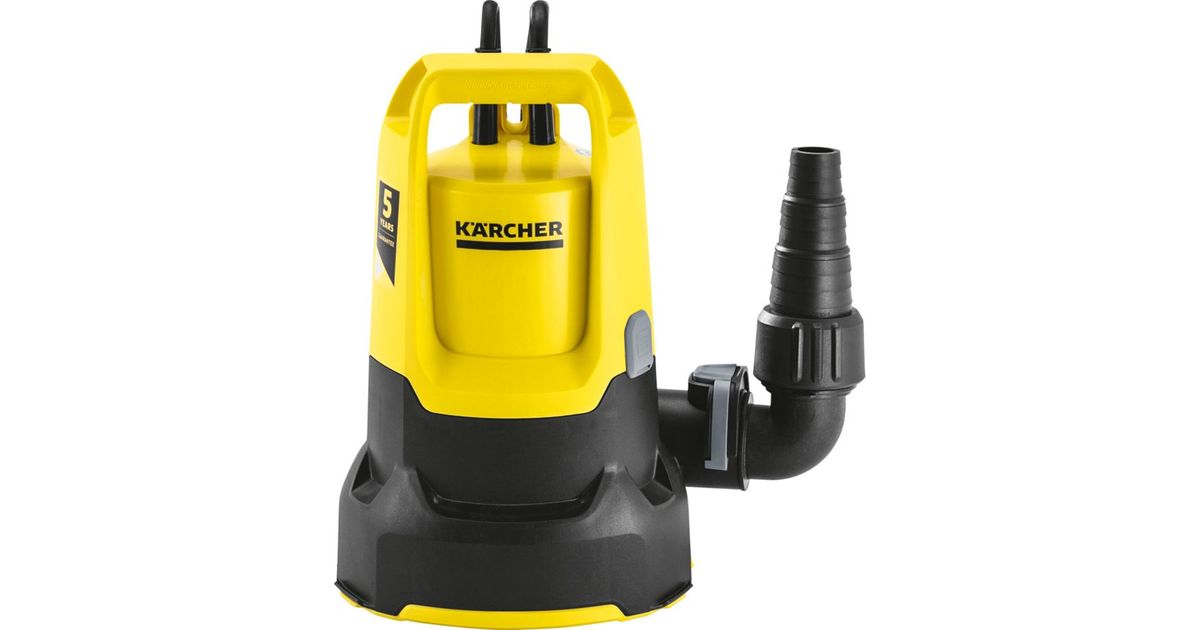

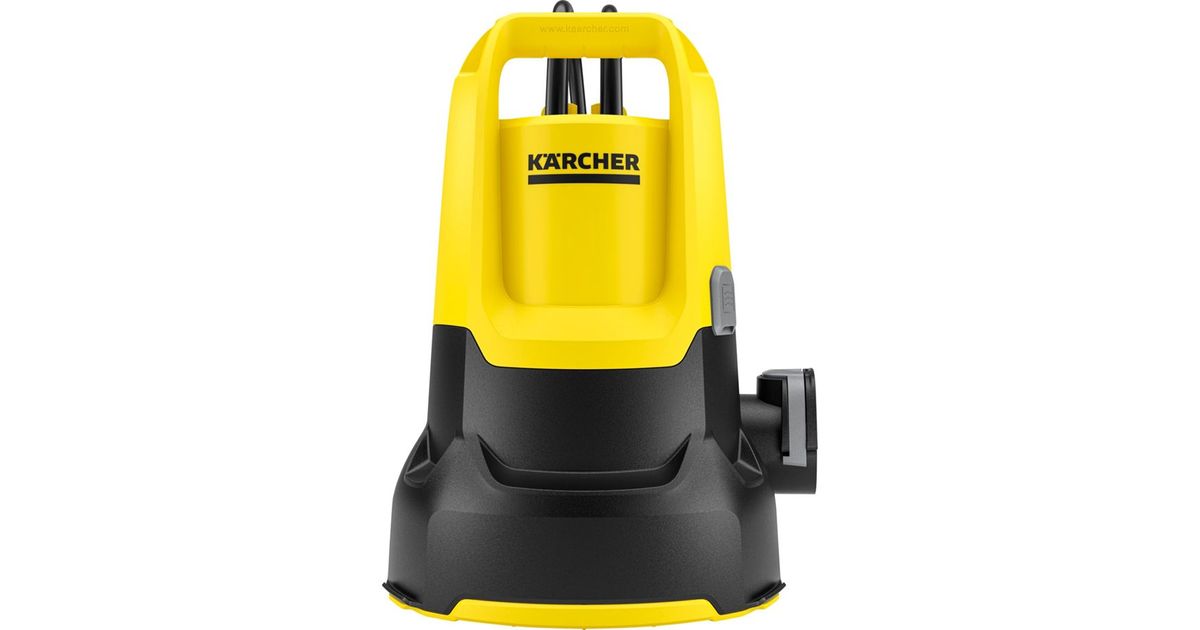

Kärcher SP 9.000 Flat submersible pump

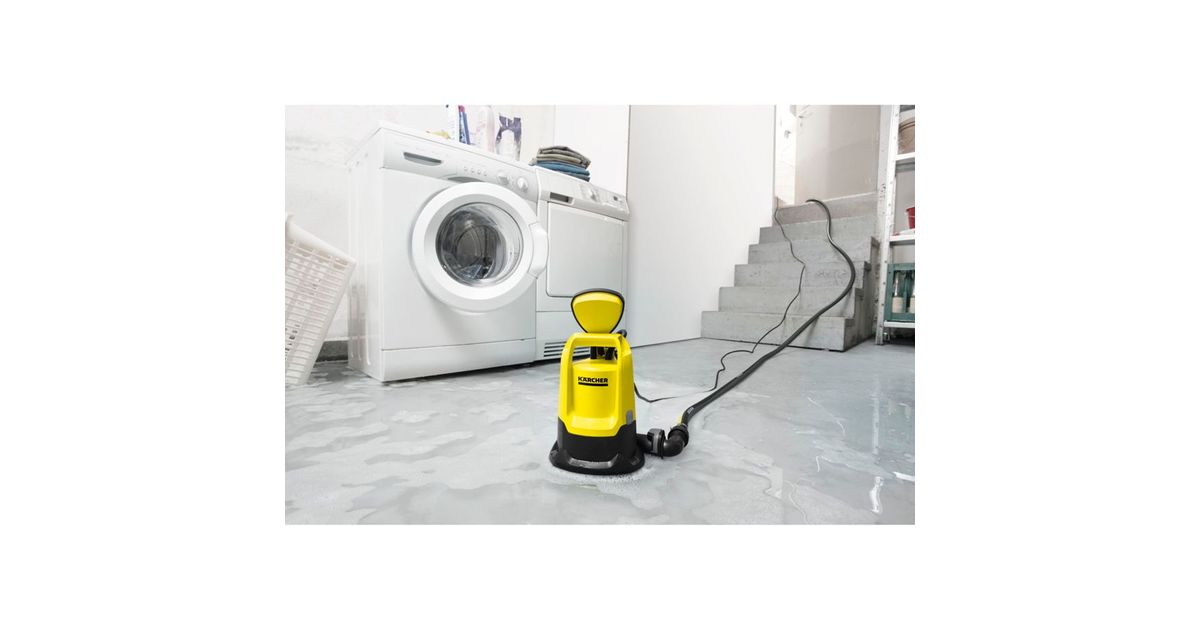

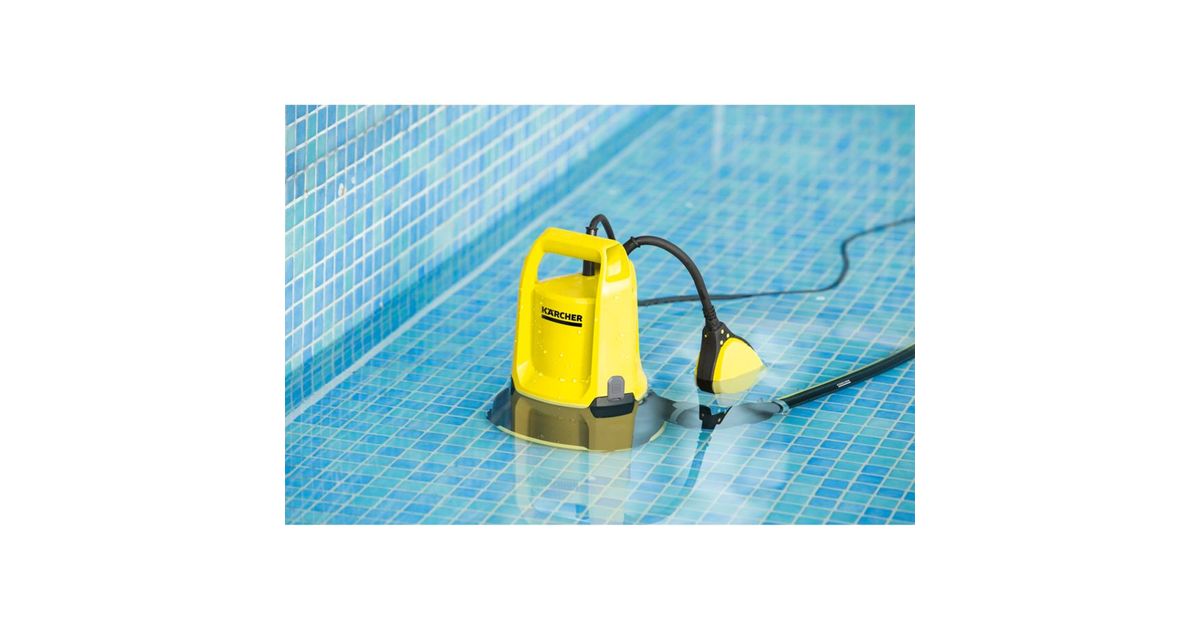

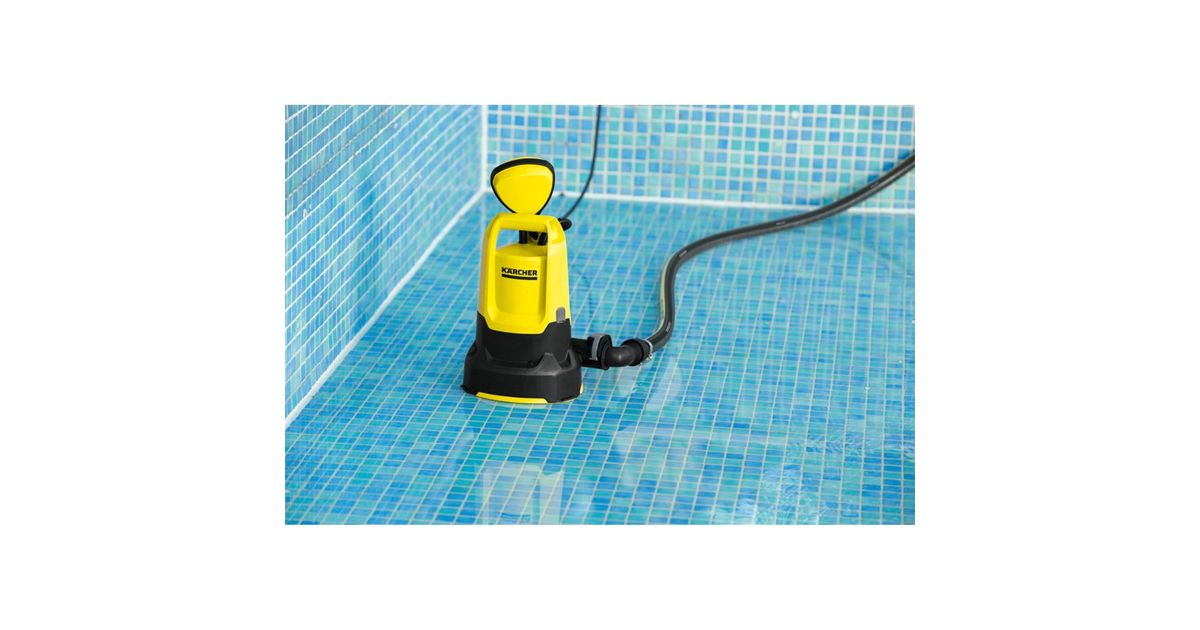

The flat suction submersible pump SP 9.000 Flat reliably helps to pump out clear or slightly contaminated water with dirt particles up to 5 millimeters in size. With up to 9000 l/h, it is ideal for draining smaller pools or basements flooded by groundwater ingress or washing machine leaks. A robust mechanical seal makes the pump extra durable. A float switch switches the pump on and off depending on the water level, preventing it from running dry. And thanks to the option of fixing the float, it can also be used in continuous operation when the water level is low. The SP 9.000 Flat also has folding feet, which can be folded out to achieve a higher pumping capacity. When the feet are folded in, the clear water submersible pump starts at a water level of just 7 millimetres and even pumps down to 1 millimetre wipe-dry in continuous operation. And 1", 1 1/4" and 1 1/2" hoses can be connected quickly and easily using the Quick Connect connector.

Features:

• Ceramic mechanical seal: For an extra long service life

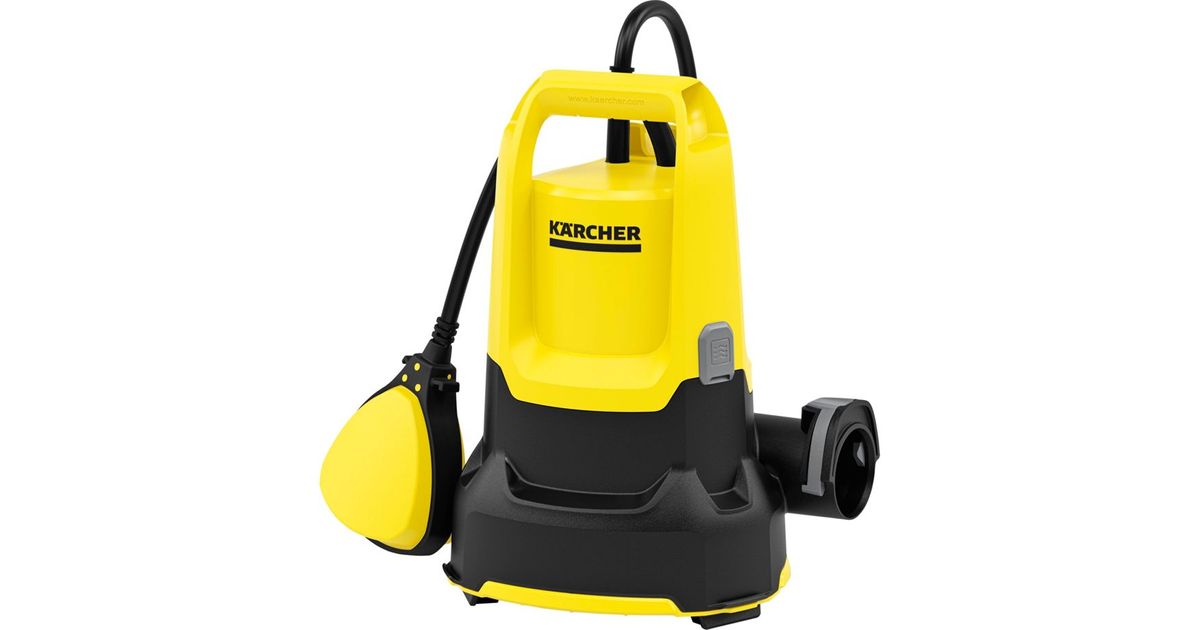

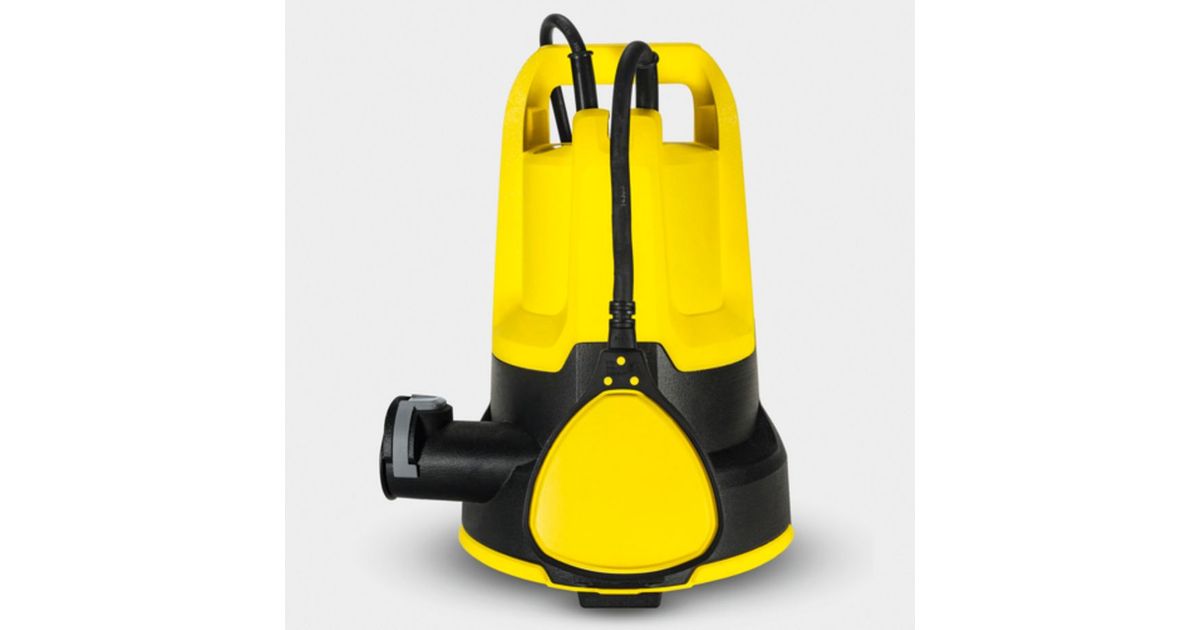

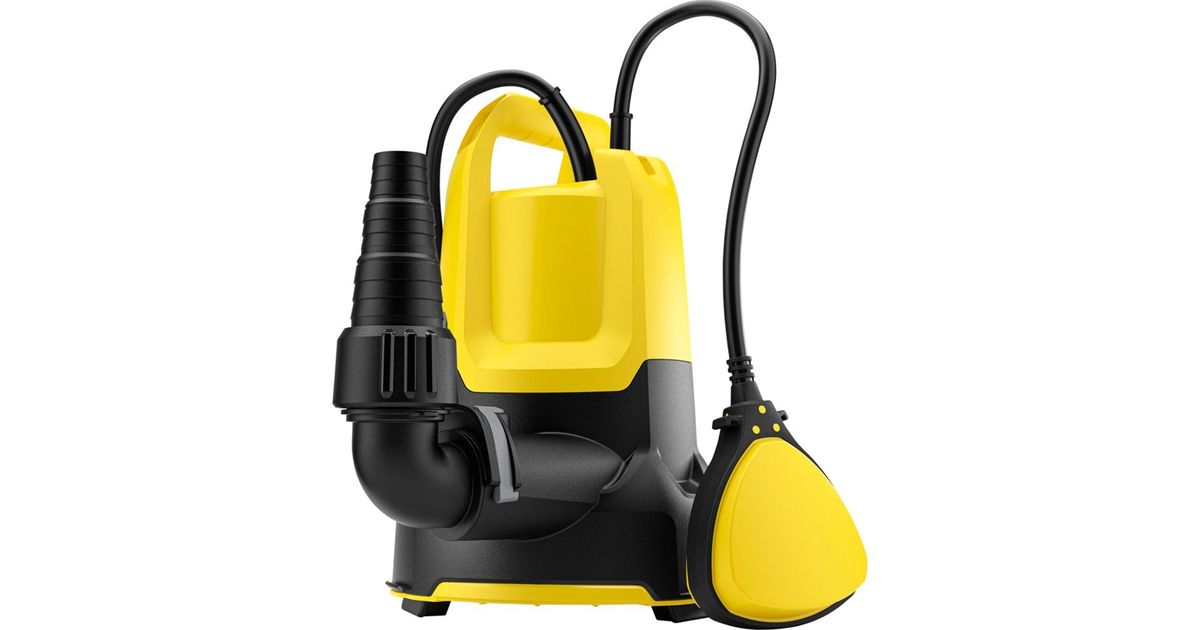

• Float switch: Switches the pump on and off depending on the water level and thus also protects against dry running

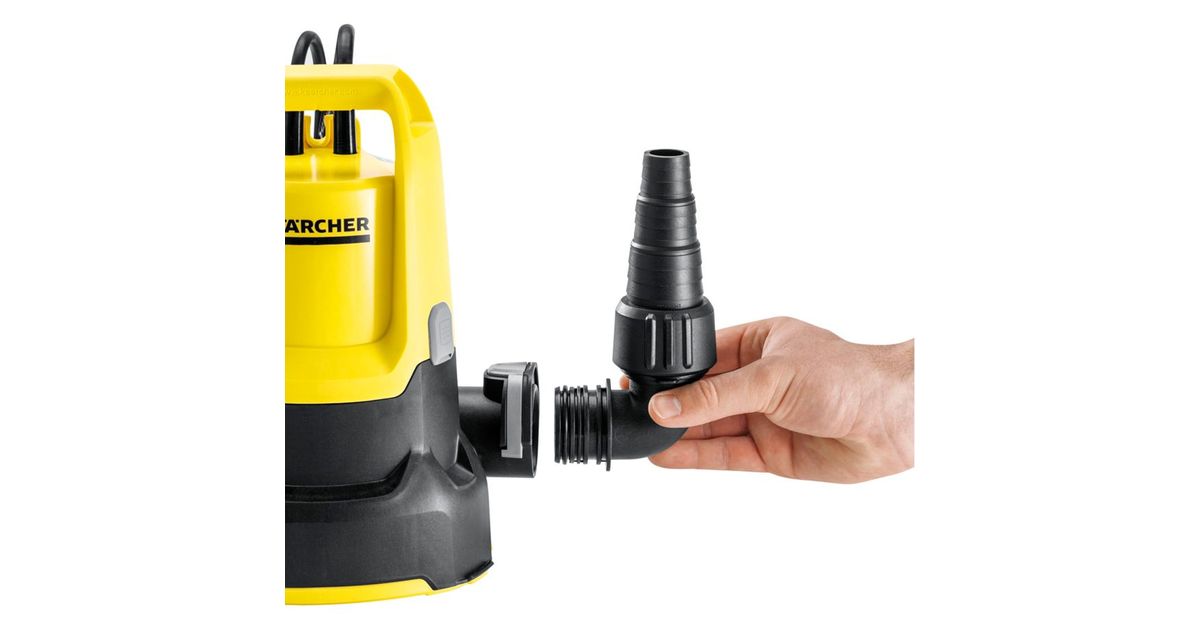

• Quick Connect: Connection piece for quick and easy connection of 1", 1 1/4" and 1 1/2" hoses or a G1 connection

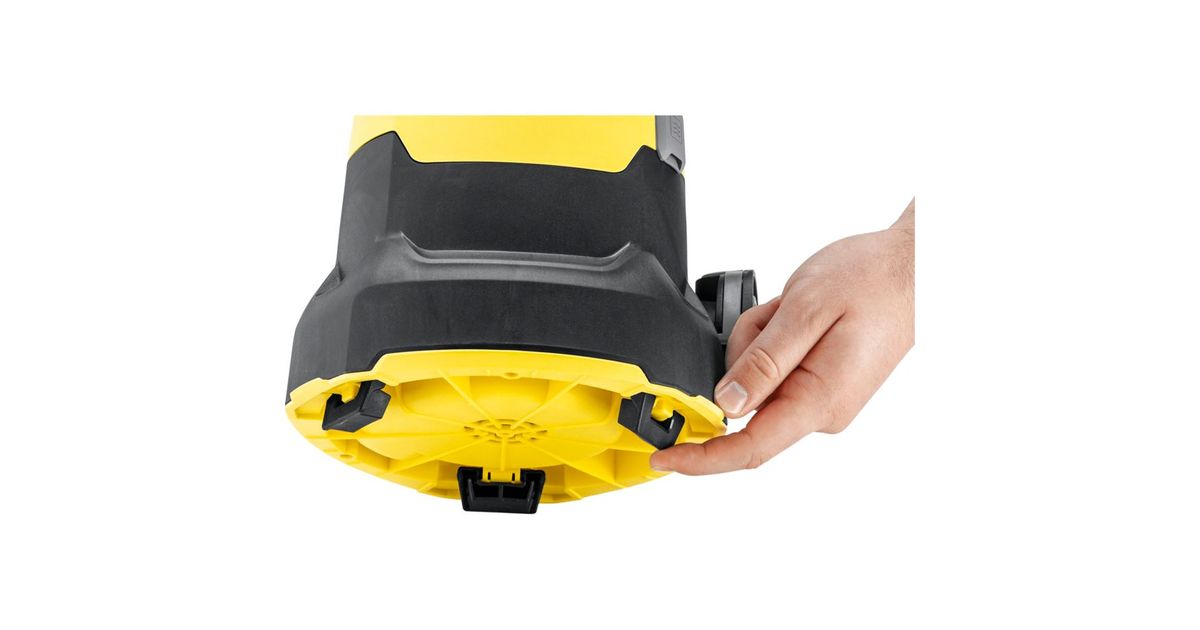

• Retractable feet: Switch from normal operation with higher flow rate to 1 mm flat suction with wipe-dry results
• Automatic deaeration: the pump starts operating in manual mode from a water level of just 7 mm
• Fixing option for the float switch: For switching to continuous operation
• Comfortable carrying handle: Can be gripped comfortably and can also be used as a rope holder
• Robust and easy-to-install pre-filter accessory: Protects the pump from excessive soiling and prevents the pump impeller from clogging

Technical data:

• Max. motor power: 280 W
• Max. flow rate: < 9000 (l/h)
• Max. delivery temperature: 35 °C
• Delivery head: 6 m
• Pressure max. 0.6 bar
• Flat suction (up to): 1 mm
• Grain size max.: 5 mm
• Immersion depth max.: 7 m
• Min. residual water, manual: 1 mm
• Residual water height: 1 mm
• Connection thread: G1 1/2
• Connection thread pressure side: G1 1/2 female thread
• Connection cable: 10 m
• Voltage: 230 - 240 V
• Frequency: 50 Hz
• Dimensions (L x W x H): 227 x 240 x 262 mm
• Weight without accessories: 3.7 kg

Scope of delivery:

• Kärcher SP 9.000 Flat submersible pump
• Hose connection piece: G1, 1", 1 1/4", 1 1/2"
