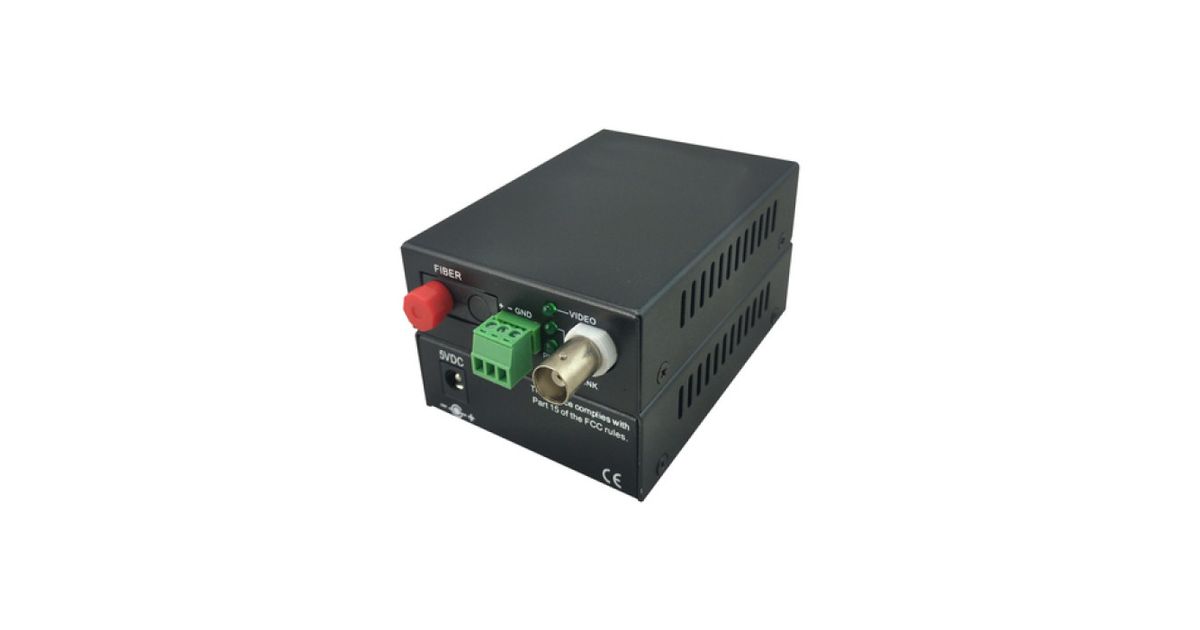

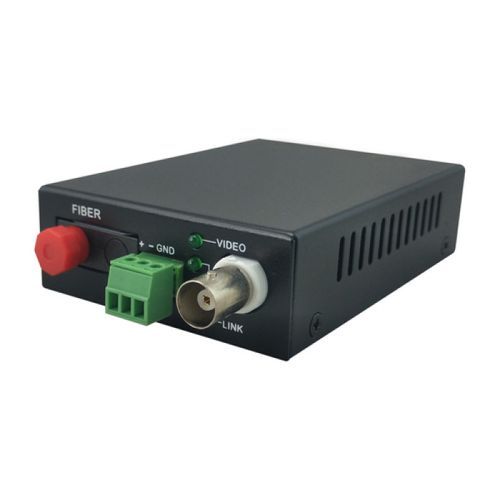

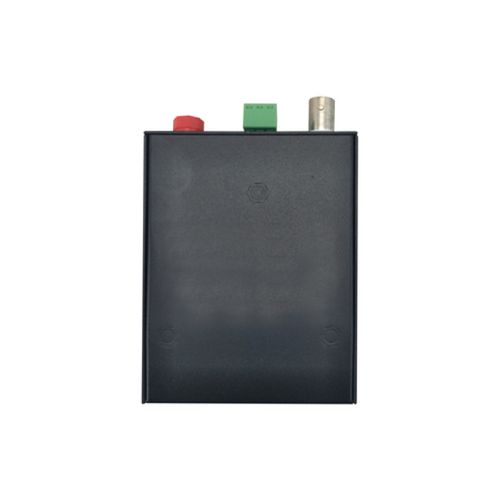

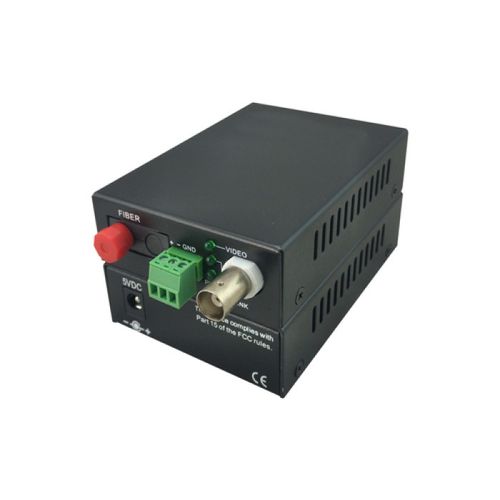

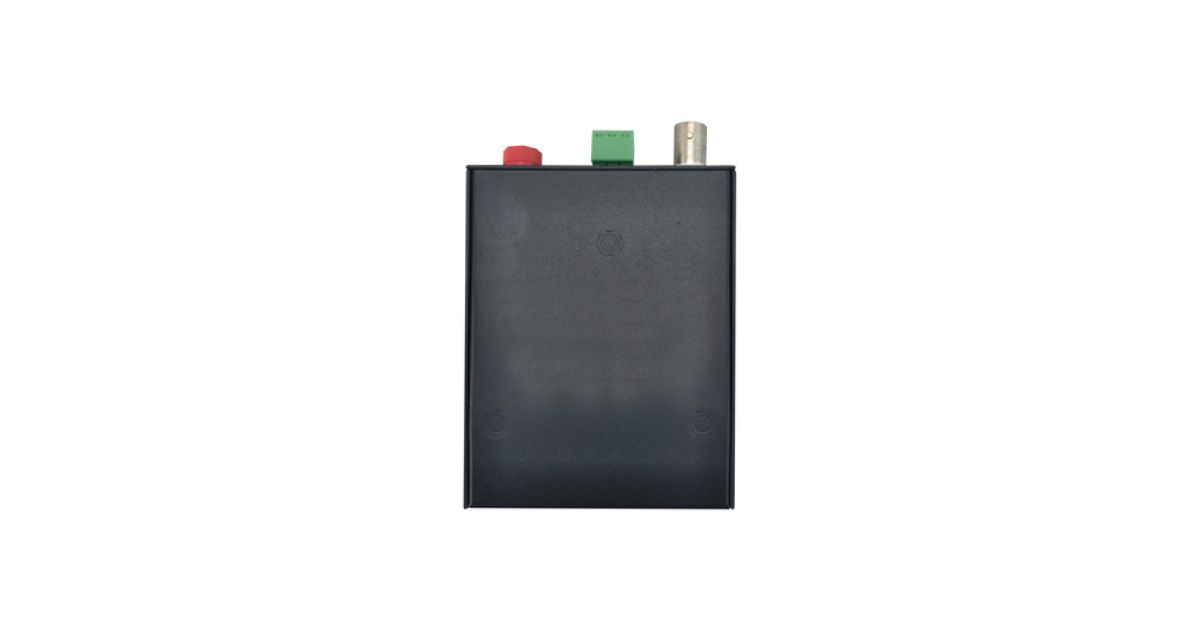

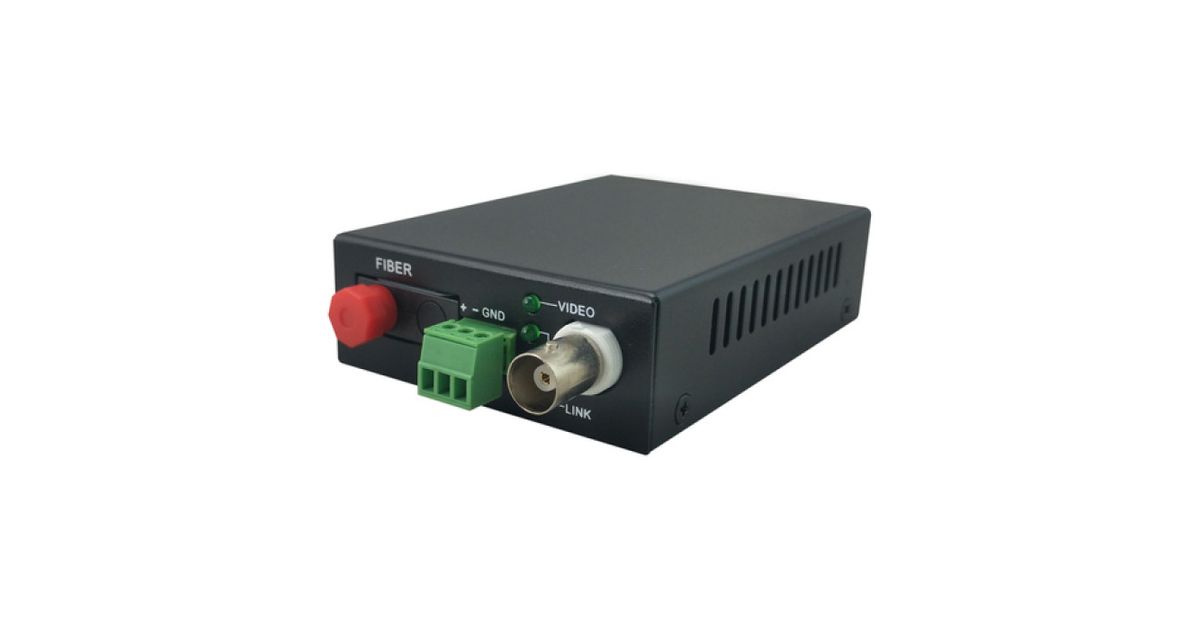

LevelOne 1-Channel BNC over Fiber Optic Extender Kit, 20km AV extender
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Level One |
| Tootekood | 2111212284 |
| EAN | 04015867206690 |
| Tootja kood | AVF-1101 |
| Kategooria | Audio/video/HDMI lülitid ja splitterid |
Toote kirjeldus
Features
| Type | AV transmitter |
|---|---|
| Maximum transfer distance | 20000 m |
| Fiber optic wavelengths supported | 1470-1610,1310 nm |
| LED indicators | |
| Bandwidth | 6.5 MHz |
| Plug and Play | |
| RX sensitivity | -26 dB |
| Impedance | 75 Ω |
| Signal-to-Noise Ratio (SNR) | 60 dB |
| Linearity | 1.3%DG, 1.3°DP |
| Uncorrectable Bit Error Rate (UBER) | 1 per 10^9 bits read |
| Colour | Black |
| Certification | CE, FCC |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Fiber optic connector | FC |
| BNC input ports | 1 |
Power
| Operating voltage | 5 V |
|---|---|
| Input current | 3 A |
| Power consumption (typical) | 12 W |
Operational conditions
| Operating temperature (T-T) | -20 - 70 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Width | 70 mm |
|---|---|
| Depth | 25 mm |
| Height | 90 mm |
| Weight | 460 g |
Packaging data
| Package width | 185 mm |
|---|---|
| Package depth | 62 mm |
| Package height | 275 mm |
| Package weight | 600 g |
| Package type | Box |
Packaging content
| AC adapter included | |
|---|---|
| Quick start guide |
Technical details
| Country of origin | China |
|---|
Logistics data
| Master (outer) case gross weight | 11.5 kg |
|---|---|
| Products per master (outer) case | 17 pc(s) |
