Tootepildid on illustratiivsed

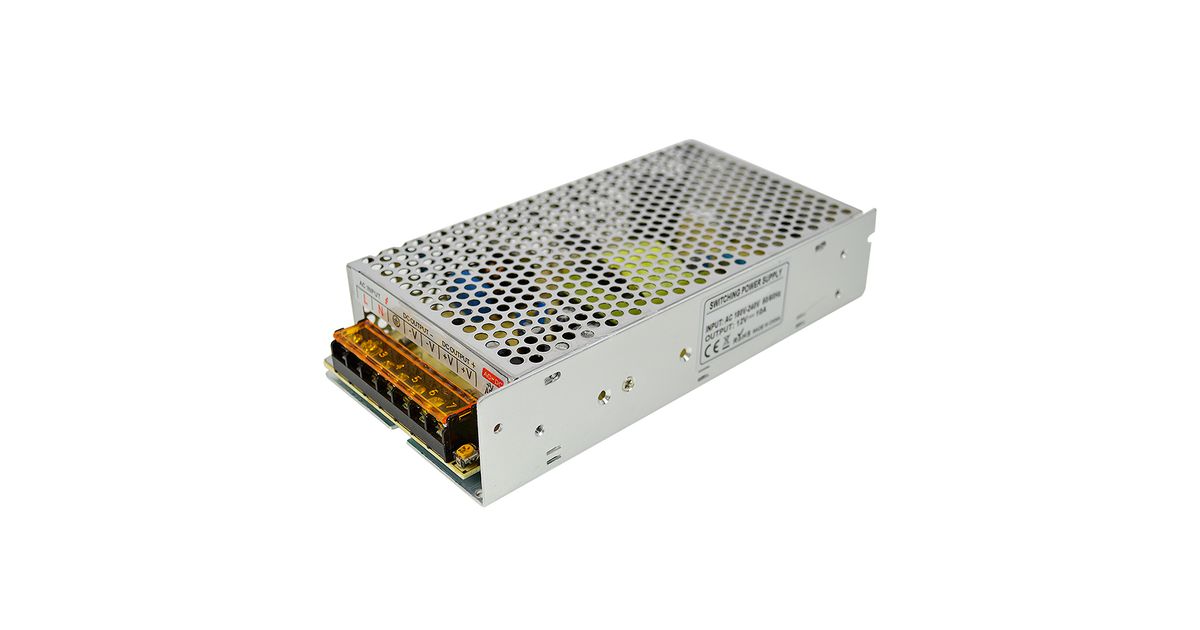

Lülituspingeallikas PNI ST10A 12V 10A stabiliseeritud valvesüsteemide jaoks
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292317231 |
| EAN | 05949066506932 |
| Tootja kood | PNI-ST10A |
Toote kirjeldus
| applicationsThe PNI ST10A voltage source can be used in access control systems, video surveillance systems or in any application with less than 10A power consumption. |
entryThe PNI ST10A voltage source is supplied to the normal electricity grid with a voltage of 220V. |
|
| outputPNI ST10A has a 12V output and a maximum capacity of 10A. |
Physical characteristicsThe motherboard of the voltage source is protected by a shock-resistant metal housing. Due to its small size it can be easily mounted and hidden in a connection box. It has the dimensions: 160x98x40 mm. |
|
| Product identification | |
| Manufacturer | PNI |
| Characteristics | |
| Input voltage | 180-240V AC |
| Frequency input signal | 50-60Hz |
| Voltage outputs | 2 x 12V |
| Output current | 10A |
| Output power | 120W |
| Efficiency | 79% |
| Overload protection | From 105% to 115% |
| Short-circuit protection | Yes |
| Operating temperature | -26 ° C ~ + 60 ° C |
| Dimensions (D x H x W) / Weight | 160x98x40 mm / 324 g |
| The package contains | |
| Power source | Yes |
