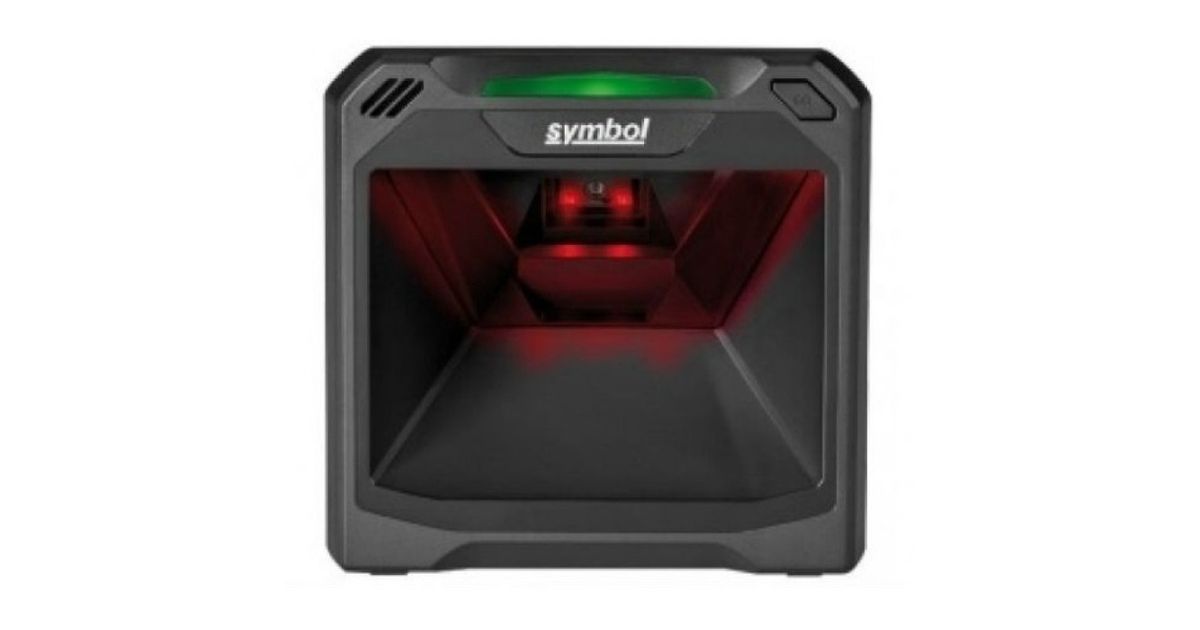

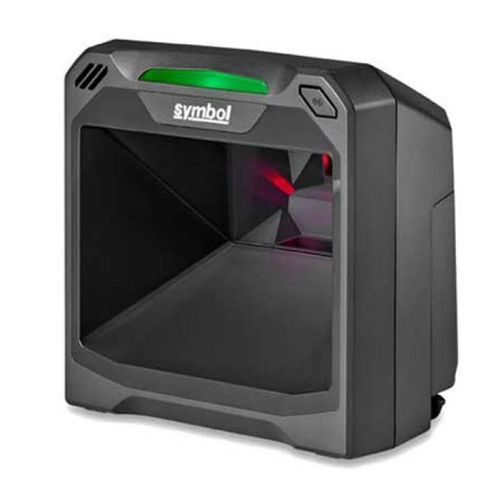

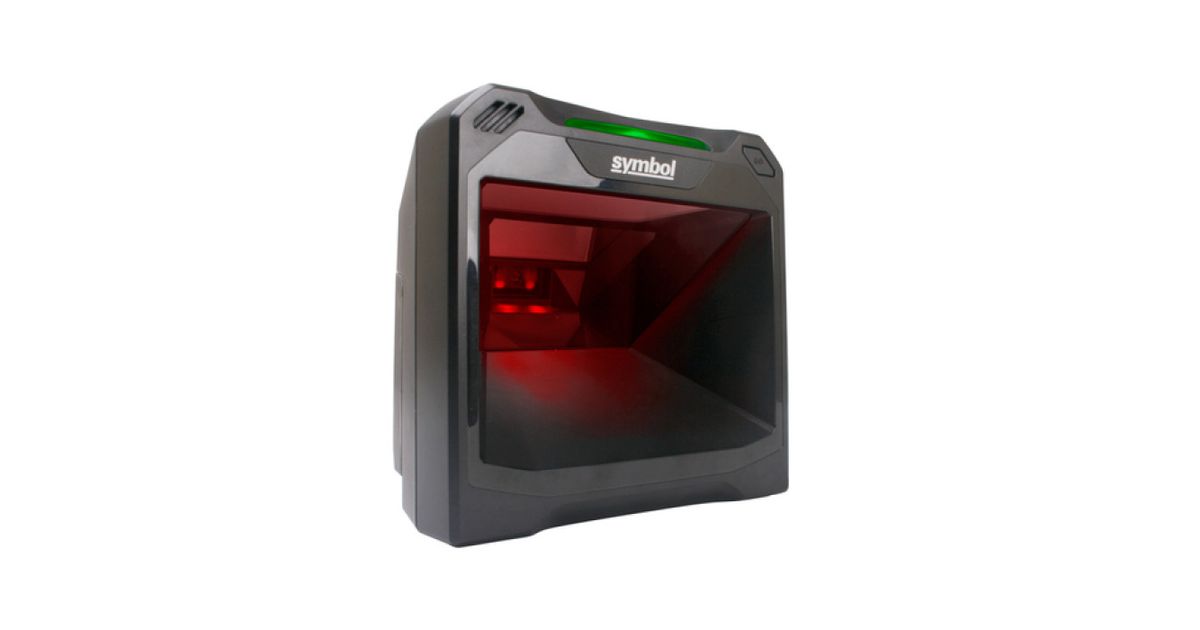

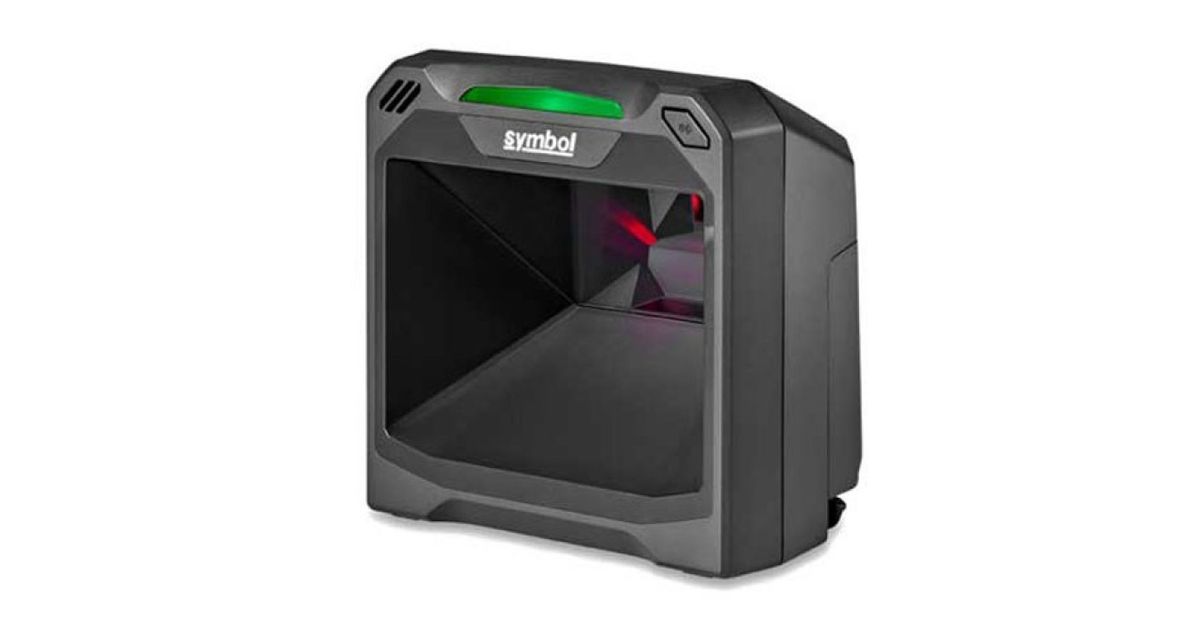

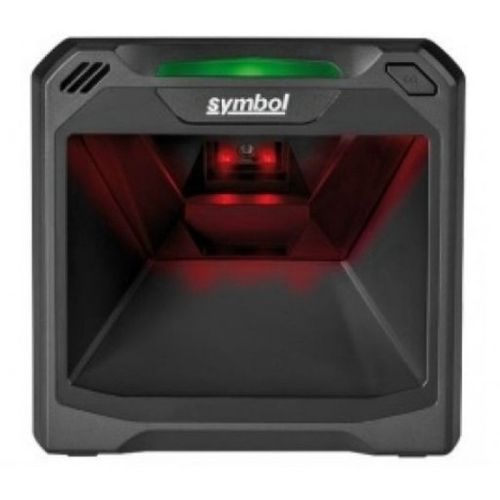

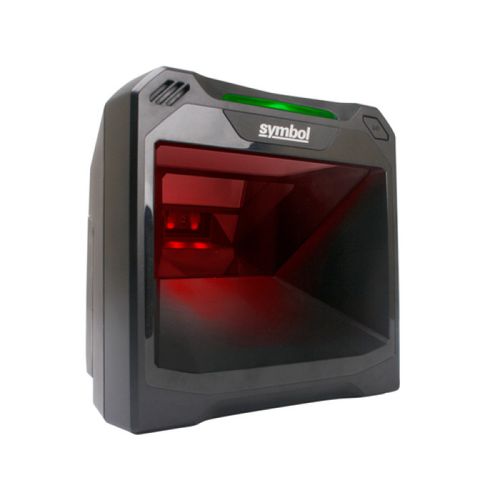

Motorola DS7708 Fixed bar code reader 1D/2D LED Black
Toote andmed
Toote kirjeldus
Scanning
| Type | Fixed bar code reader |
|---|---|
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 660 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -70 - 70° |
| Yaw reading angle | -70 - 70° |
| Motion tolerance (cm/s) | 254 |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
Performance
| Colour | Black |
|---|---|
| International Protection (IP) code | IP52 |
Power
| Power source type | USB |
|---|---|
| Input voltage | 12 V |
Weight & dimensions
| Weight | 500 g |
|---|---|
| Width | 149 mm |
| Depth | 97 mm |
| Height | 143 mm |
Packaging data
| Cables included | USB |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
General
| Warranty | Manufacturer warranty: 3 years |
|---|
