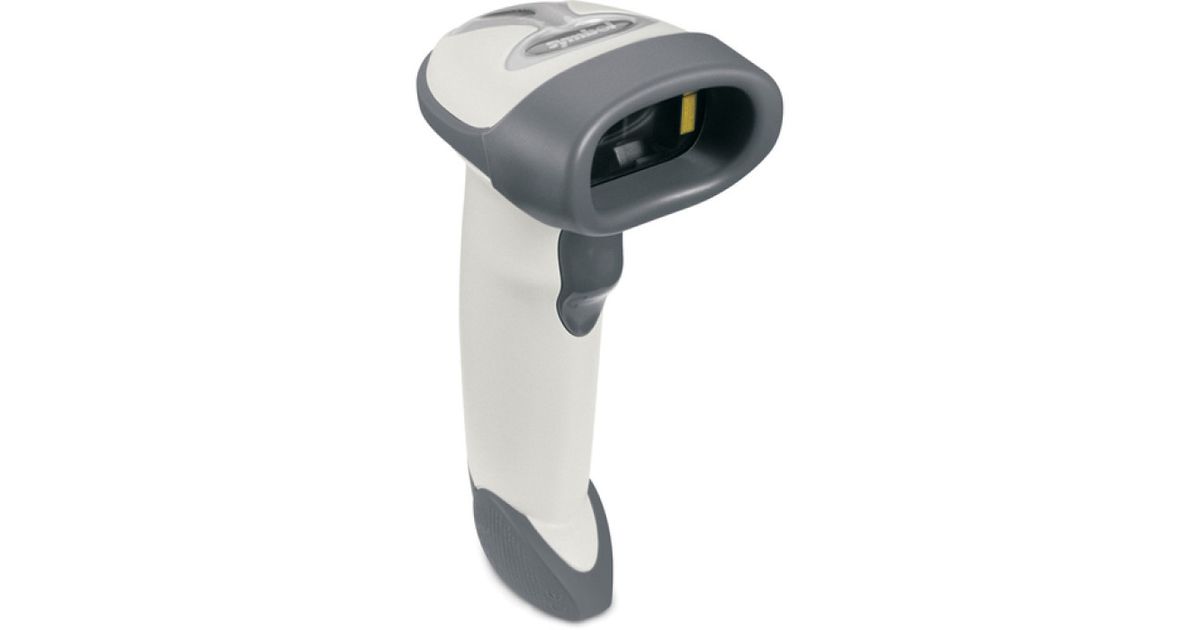

Motorola LS2208 Laser White
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Zebra |
| Tootekood | 6811995767 |
| Tootja kood | LS2208-SR20001R-UR |
| Kategooria | Triipkoodilugejad |
Toote kirjeldus
Scanning
| Sensor type | Laser |
|---|---|
| Tilt reading angle | -30 - 30° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -60 - 60° |
| Decoding standards | UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2/5 Discrete 2/5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2/5 |
| Scan speed | 100 sec/page |
Ports & interfaces
| Standard interfaces | USB |
|---|
Performance
| Colour | White |
|---|
Power
| Input voltage | 5 V |
|---|---|
| Power consumption | 130 mA |
Weight & dimensions
| Weight | 146 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data
| Harmonized System (HS) code | 84716070 |
|---|
Other features
| Dimensions (WxDxH) | 63 x 84 x 152 mm |
|---|---|
| Safety | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Light source | 650nm |
| Electromagnetic emissions | FCC Part 15 Class B, ICES 003 Class B |
General
| Warranty | Manufacturer warranty: 5 Years |
|---|
