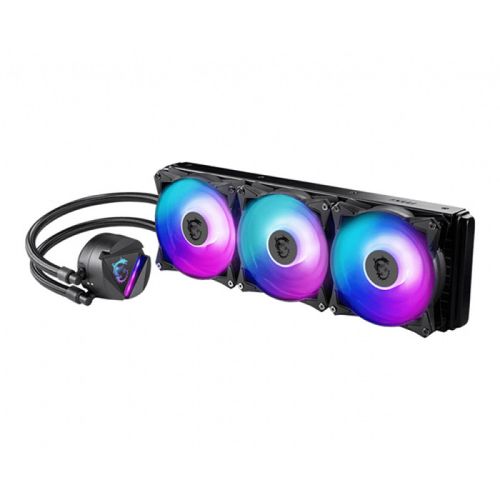

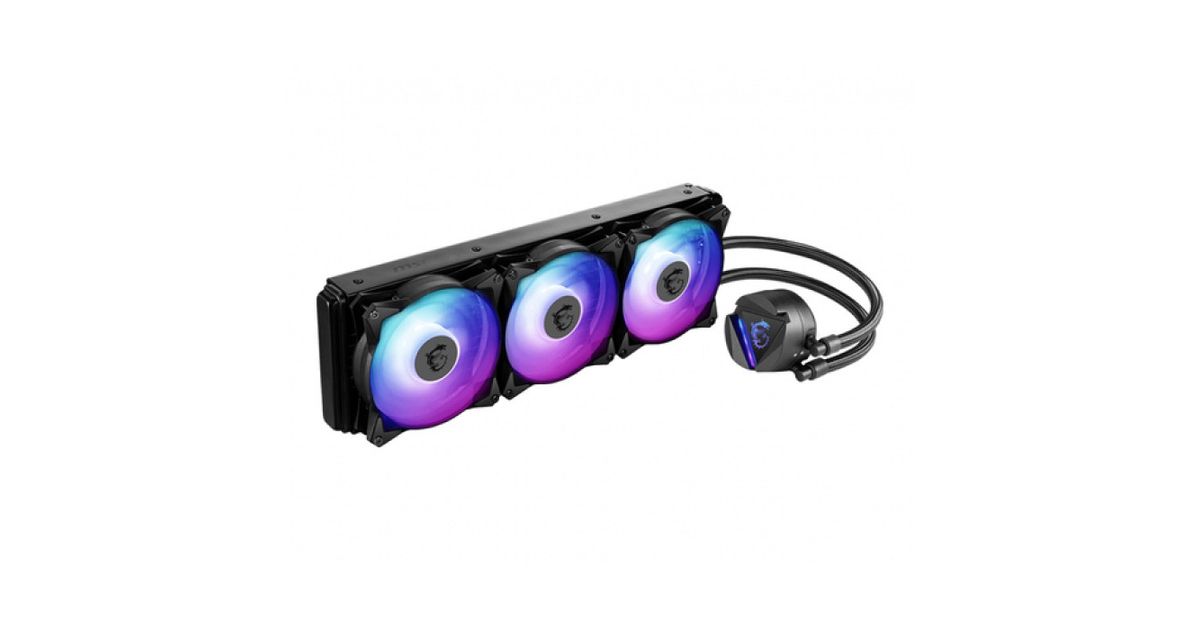

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'

Tootja: MSI Tootekood: 2211412392 EAN: 05715063543078 MPN: 306-7ZW1C41-813

Toote andmed

Üldandmed
Tootja	MSI
Tootekood	2211412392
EAN	05715063543078
Tootja kood	306-7ZW1C41-813

Toote kirjeldus

Performance

Suitable location	Motherboard, Processor
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Compatible processor series	AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen™ Threadripper™, Intel® Core™ i7, Intel® Core™ i9
Rotational speed (min)	500 RPM
Rotational speed (max)	2000 RPM
Minimum airflow (imperial)	21.63 cfm
Maximum airflow	78.73 cfm
Minimum air pressure	0.23 mmH2O
Maximum air pressure	2.39 mmH2O
Fan diameter 2	12 cm
Pulse-width modulation (PWM) support
Bearing type	Ball bearing
Fan noise level (min)	14.3 dB
Fan noise level (max)	34.3 dB
Pump noise level	18 dB
Fan bearing technology	Ball bearing
Pump bearing technology	Ceramic bearing
Pump connector	3-pin
Pump motor speed	4200 RPM
Fan speed (min)	500 RPM
Fan speed (max)	2000 RPM

Design

Colour	Black
Radiator material	Aluminum
Number of fans	3 fan(s)
Illumination LED
Fan connector	4-pin

Power

Fan power consumption	1.8 W
Pump power consumption	4.08 W
Pump voltage	12 V
Pump current	340 mA
Fan voltage	12 V
Fan current	0.15 A

Weight & dimensions

Radiator width	39.4 cm
Radiator depth	12 cm
Radiator height	2.7 cm
Tube length	40 cm
Waterblock width	8.06 cm
Waterblock depth	6.68 cm
Waterblock height	4.86 cm
Fan dimensions (W x D x H)	120 x 120 x 25 mm

Logistics data

Harmonized System (HS) code	84733080
