Osram Halotronic-Trafo Mouse HTM 150/230-240
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Osram |
| Tootekood | 1110590403 |
| EAN | 04050300581415 |
| Tootja kood | O0581415 |
Toote kirjeldus

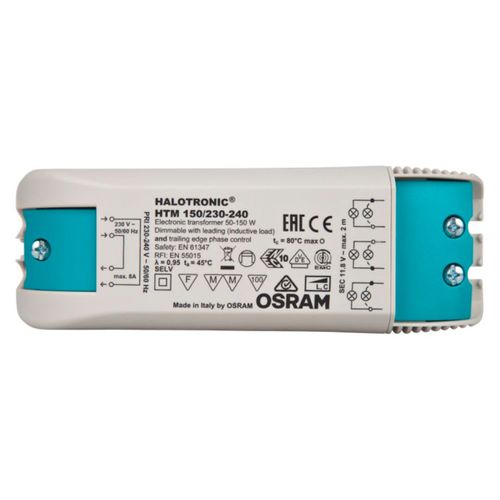

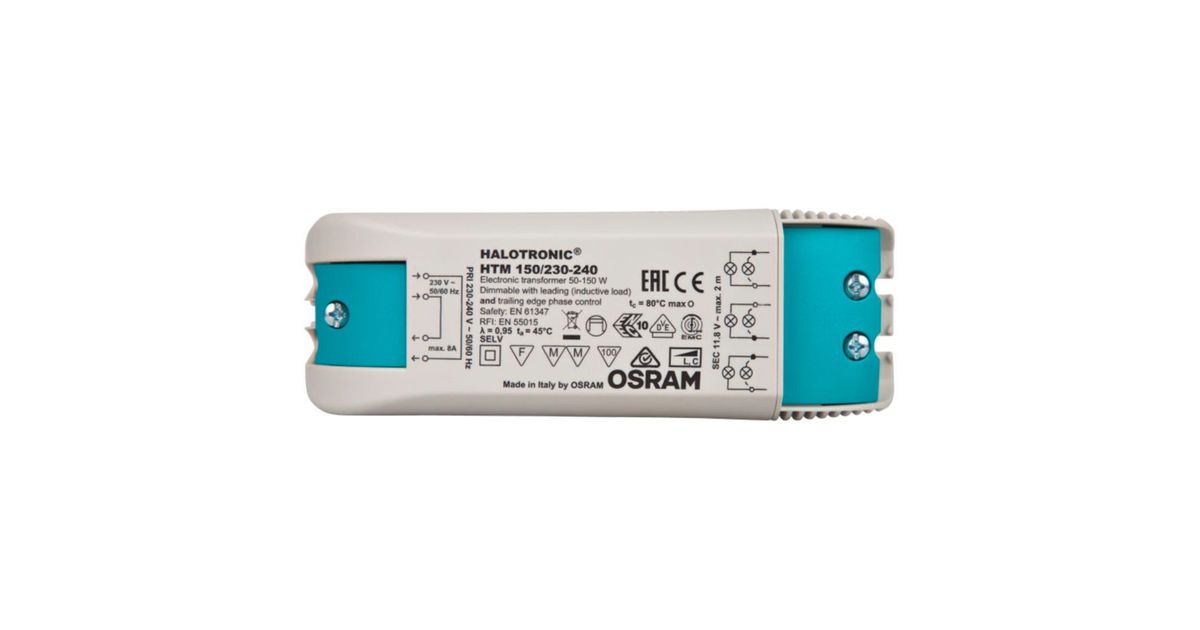

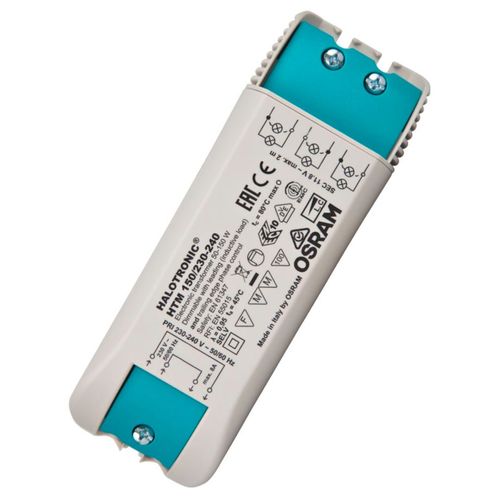

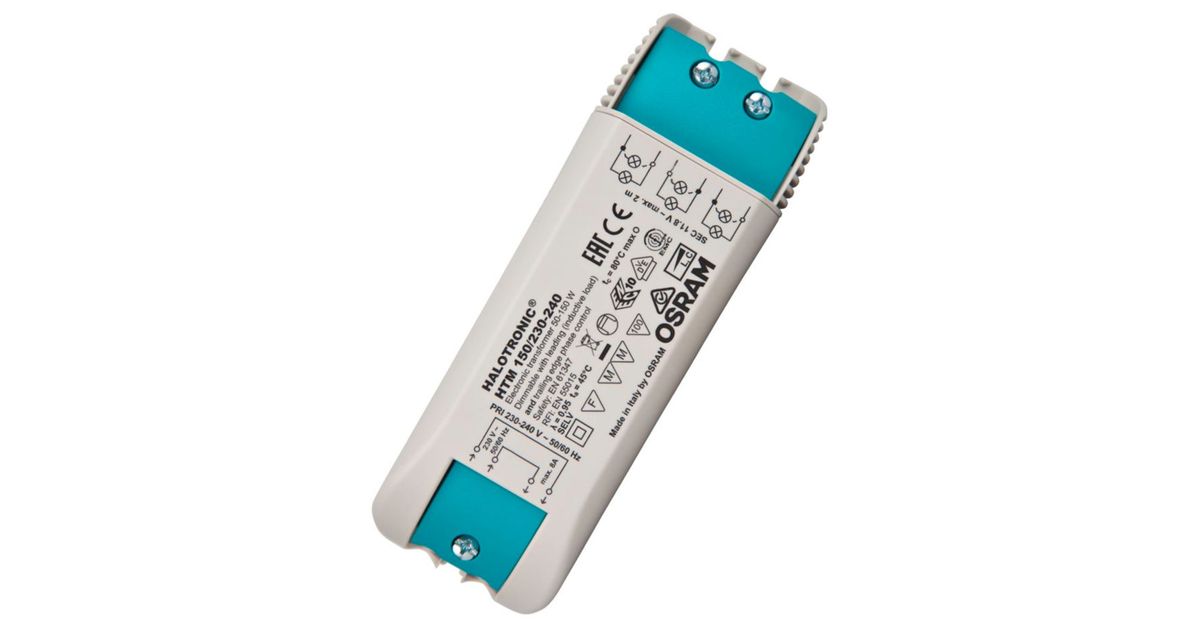

Osram Halotronic transformer Mouse HTM 150/230-240
Features:
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- Galvanic isolation between primary and secondary side
- Dimmable via leading edge phase control (without HTN) and trailing edge phase control
- Very low power loss due to high efficiency
- Strain relief suitable for different cable types (HTM)
- Suitable for space-critical installation thanks to compact, functional design
- Extremely compact transformer for very space-critical installation conditions (HTN)
- Lamp-friendly operation in the entire partial load range for long lamps
- Lamp wattage: 50 - 150 W
- Maximum output power: 150 W
- Mains current: 0.57 A (effective)
- Rated voltage: 230...240 V
- Mains power factor: λ 0.99
- Operating frequency: 40 kHz (approx.)
- Nominal output voltage: 11.4 / 11.5 V (at 150 / 50 W)
- Input voltage: AC 207 - 264 V
- Mains frequency: 50 - 60 Hz
- System power: 157.00 W
- Efficiency at full load: 95 %
- Input voltage range: 230 - 240 V
- Max. No. ECG on automatic fuse: 10 A (B) 16
- Max. No. ECGs on automatic fuse: 16 A (B) 26
- Galvanic isolation primary/secondary: 4.00 kV (effective)
- Inrush current: 1.1 A (maximum)
- Dimensions: 153 x 54 x 36 mm
- Weight: 185 g
