Toote tegelik värvus võib erineda piltidel kujutatavast ning pildid on
illustratiivsed.

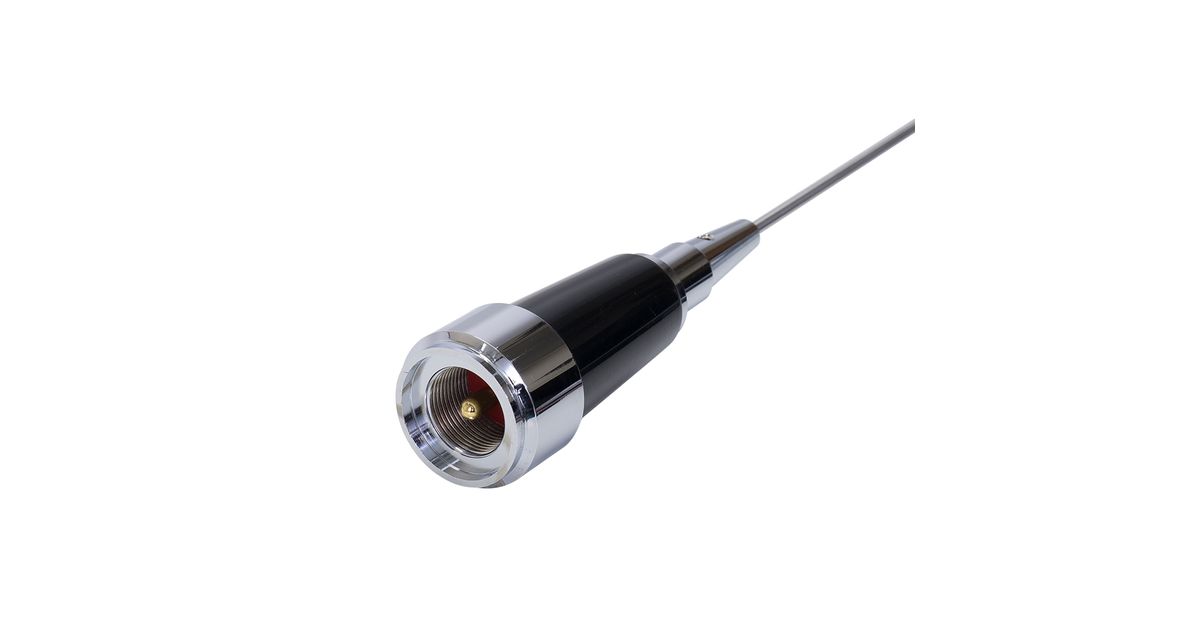

PNI-antenn VHF285 takso jaoks 134-174MHz, ora pikkus 128 cm, ilma kaablita
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | PNI |
| Tootekood | 292317680 |
| EAN | 05949066512049 |
| Tootja kood | PNI-VHF285 |
Toote kirjeldus
| performancesThe performance of the product is closely related to the technical characteristics of the antenna under ideal conditions of installation and use: SWR <= 1.5: 1, maximum applied 200 W, impedance 50 Ohms, stainless steel etc. |
Communication distanceThe distance of communication is another decisive factor in the acquisition and use of a VHF antenna. Thus the maximum distance of communication is reached in ideal working conditions: calibrated antenna, open field without obstacles and optimal climatic conditions. Any obstacle such as hills, mountains, buildings, walls and station power can significantly reduce the transmit / receive distance. |
|
| Length of the antennaThe length of the antenna is another very important factor that can influence the communication distance in traffic. As long as the antenna is longer, the longer the communication distance / the radius of action. The PNH VHF285 has a length of 128 cm. |
BatchThis antenna is ready to mount on a magnetic base with the PL connector type or a fixed support. We recommend the separate purchase of the PNI S120 / PL 125mm magnetic base containing a 4m cable and the PL250 socket. All you have to do is connect it to a station and get it calibrated to use it at maximum performance. |
|
| Product Identification | |
| Product code | PNI-VHF285 |
| Antenna type | 5/8 λ |
| Workbench | VHF (Very High Frequency) |
| General characteristics | |
| Length | Spice length: 128 cm |
| Frequency of work | 134-174 MHz |
| Maximum power applied | 200W |
| Minimum SWR at the center of the band | less than 1.5: 1 |
| Gain | 3.4dB |
| Connector type | PL |
| Diameter hole | 16 mm |
| Material | Stainless steel |
| Weight | 180 g |
| Product color | Silver |
| The package contains | |
| 4m RG58 cable with PC connector, Code T633 | Not |
| Plug PL259 | Not |
| Butterfly screw SC 27, Code T441 | Not |
| LC 27 antenna coupling connector, Code T370 | Not |
| Midland FC 27 mount, Code T478 | Not |
| 3 dipoles | Not |
| Antenna holder | Not |
| 10 mm metric screw | Not |
